Item # Tightening torque Dir. Glue / comment

107 L

106L

108L

105

105L

02/2016

2050559433 Rev. : 03

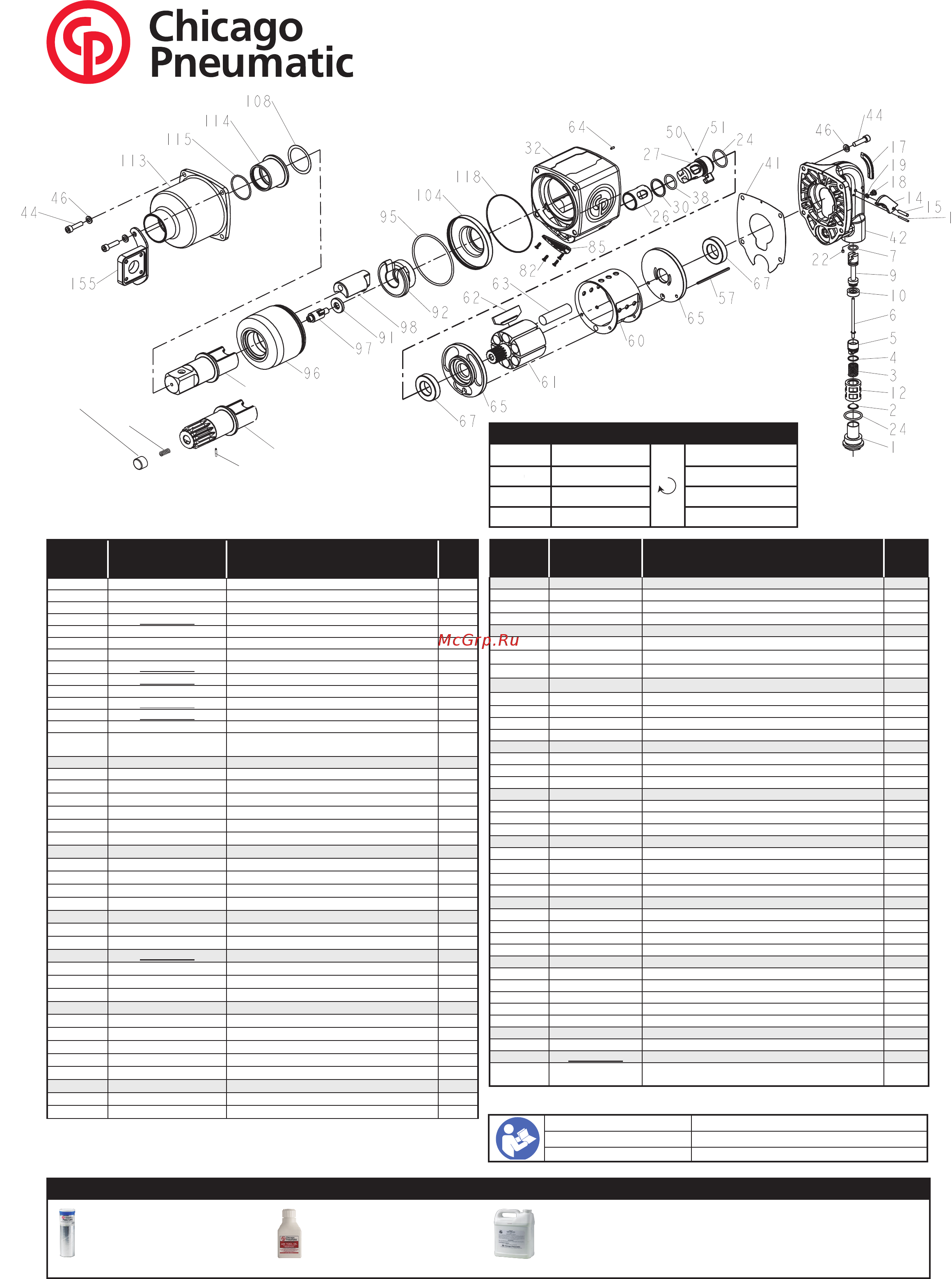

Spare parts without part number are not sold separately - High wear parts are underlined

CP6135 Series

Impact Wrench

Item

No.

Part No. Description Q'ty

12 6157440340 Strainer 1

41 6156562275 Gasket 1

60 6154001560 Liner 1

6154340675 Blades (set of 6) 1

91 6156400950 Washer 1

92 6155830850 Driver 1

96 6155830830 Cage 1

6155830840 Cam 1

6155830820 Hammer 1

104 6155830860 Cover 1

105

6152510010 Anvil 1

105L

6152510240 Anvil Spline #5 (INcluding Kit : K) 1

Not shown 6158717060 "Made In" Label 1

Not

Shown

6153982750 Name Plate 1

A 6153982660 CLUTCH HOUSING KIT

113 Clutch Housing 1

114 Bushing 1

115 O ring 1

118 O ring 1

44 Screw 4

46 Lock Washer 4

B 6153982670 MOTOR HOUSING KIT

26 Reverse Valve Bushing 1

30 Washer 1

32 Motor Housing 1

64 Pin 1

C 6153982680 ROTOR KIT

61 Rotor 1

63 Plug (Set of 6) 1

6153982690 END PLATE KIT

65 End Plate 1

67 6157530900 Bearing 1

57 Key 1

E 6153982700 REVERSE KIT

24 O ring 1

27 Reverse Valve Lever 1

38 O ring 1

50 Ball 1

51 Spring 1

F 6153983570 EXHAUST PLATE KIT

85 Exhaust plate 1

82 Screw 4

Item

No.

Part No. Description Q'ty

G 6153982710 HANDLE KIT

42 D handle 1

44 Screw 4

46 Lock Washer 4

H 6153982720 GOVERNANCE KIT

7 O ring 1

9 Valve Bushing 1

10 Throttle Seat 1

I 6153982730 THROTTLE VALVE KIT

3 Spring 1

4 O ring 1

5 Throttle Valve 1

6 Throttle Valve Stem 1

J 6153982740 INLET KIT

1 Air Inlet Bushing NPT 1/2" 1

2 Screen 1

24 O ring 1

K 6152510250 SOCKET RETAINER KIT

106L Spring 1

107L Lock Ring 1

108L Knob 1

L 6153982760 TRIGGER KIT

14 Trigger Inside 1

15 Retainer Pin 1

16 Stop Pin 1

Not shown Trigger Outside 1

M 6153982770 SIDE HANDLE KIT

150 6155760830 Side Handle 1

152 Screw 4

153 Lock Washer 4

155 Side Handle Support 1

N 6153982780 SCREW KIT

44 Screw 8

46 Lock Washer 8

152 Screw 4

153 Lock Washer 4

O 6153982810 SMALL PARTS KIT

Incl. Index No. 15, 16, 17, 18, 19, 22, 50, 51, 57, 64

6153982790 TUNE UP KIT

Incl. Index No. 2, 4, 7, 19, 24 (x2), 38, 41, 62, 95,

108, 115, 118

Recommended accessories

Pneu-lube Clutch Grease

(for clutch lubrication)

8940158455 (3.5 oz. - 100g)

8940158456 (14 oz. - 400g)

Protecto-lube Oil

(to clean motor parts)

CA149661 (4 oz - 0.12 l)

CA000046 (20 oz - 0.59 l)

Airoilene Oil

(for air lubrication)

P089507 (1 gal - 3.8 l)

Retaining Rings

C134693 (2 7/8" - 73mm)

C134694 (3 3/8" - 86mm)

C134695 (3 7/8" - 98mm)

C134696 (4 3/8 - 111mm)

Item # Tightening torque Dir. Glue / comment

1-42 90 ft.lb - 120 N.m

18 - 42 3.5 ft.lb - 5 N.m

44 - 32 15 ft.lb - 20 N.m

82 - 32 1.75 ft.lb - 2.5 N.m Loctite 243

2050559423 Operator’s Manual

6158717050 Warning Label Impact

6159948710 Safety Instuctions
