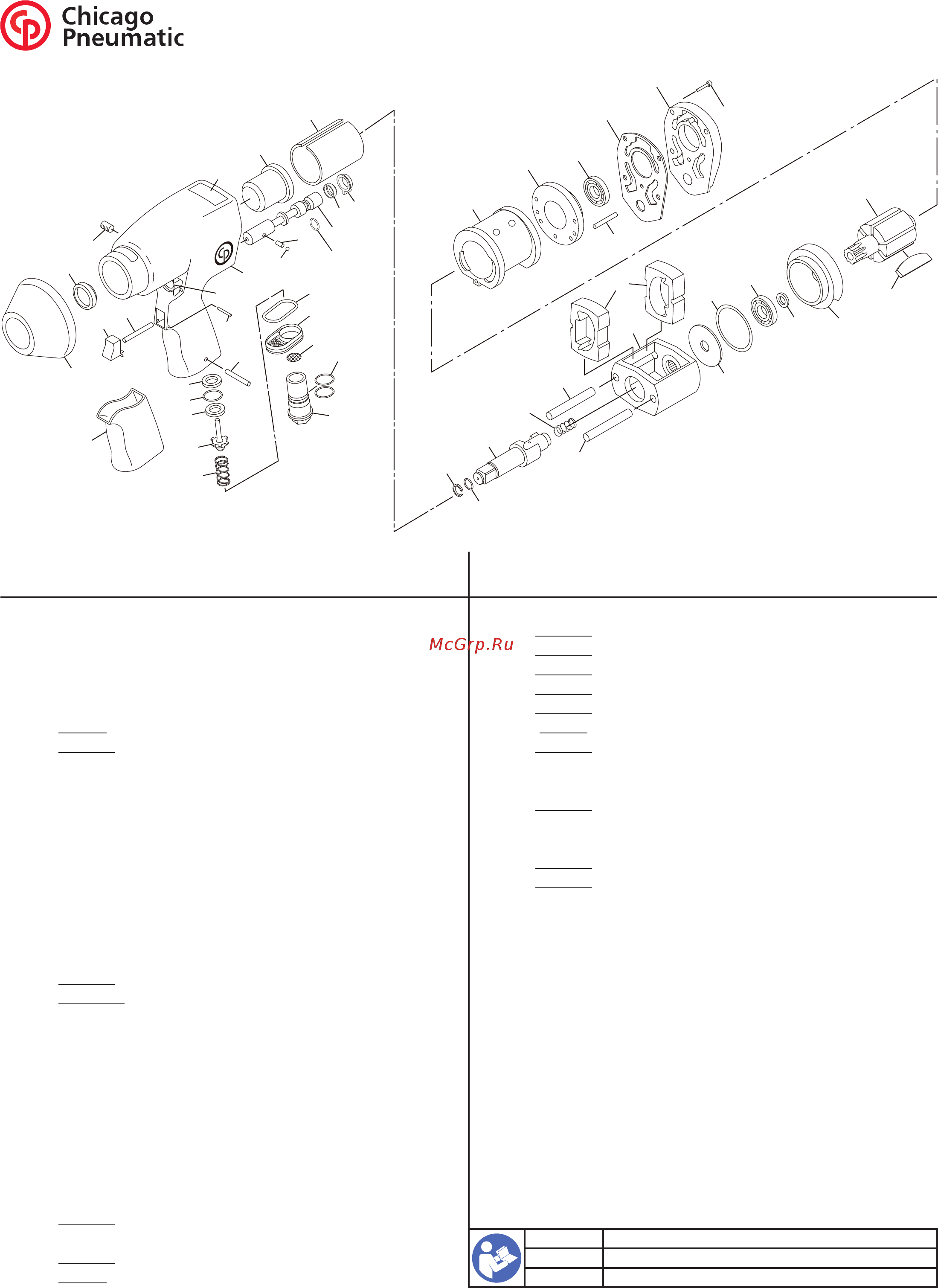

CP749 & CP749-2 Series
Impact Wrench 1/2"
1
116
115
14
6
32
26
136
33
4
8
16
5
15
3
135
134
1
35
7
2
124
114
38
40
38
39
127
25
45
65
66
61
62
60
58
54
41
43
42
44
54
68
108
96
97
107
106
105
137
99
99
Index
No.
Part No. Description Qty.
Index
No.
Part
No.
Description Qty.
1 CA147022 Bushing-Air Inlet 1 96 CA155733 Cage-Clutch 1
2 CA059037 Screen-Air 1 97
CA155055 Dog-Clutch 2
3 CA142464 Spring-Throttle 1 99
CA155734 Pin-Clutch (Model C) 2
4 CA149095 Spacer 1
CA145470 Pin-Clutch (Model B) 2
5 CA142460 Valve-Throttle 1 105
CA148609 Shank-Anvil CP749 Incl. Index Nos. 106, 107 1
6 CA144831 Pin-Throttle Push 1
CA148629 Shank-Anvil CP749-2 Incl. Index Nos. 106, 107 1
7
C105693 O-Ring 2 106 P083071 O-Ring 1
8
CA149096 O-Ring 1 107 CA088097 Retainer-Socket 1
14 CA147017 Trigger-Throttle 1 108 CA145569 Washer-Clutch 1
15 CA144836 Pin-Trigger 1 114 CA148611 Bushing-Clutch 1
16 C139037 Seat-Throttle 1 115
CA148608 Seal-Oil 1
25 CA147016 Valve-Reverse 1 116 CA148626 Shield-Nose 1
26 CA147015 Bushing-Reverse Valve 1 124 R086991 Pin-Roll 1
32 CA148615 Housing-Motor (Incl: Index No. 26) 1 127
CA147018 O-Ring 1
33 S089953 Plug-Pipe 1 134
CA148528 Gasket 1
35 8940158432 Handle-Cover 1 135 CA147023 Deector-Exhaust 1
38 S008613 Ball 1 136 CA155779 Safety label 1
39 CA147021 Spring-Detent 1 137 CA154959 Spring 1
40 CA155263 Switch 1 138 CA154960 Sleeve - Steel 1
41
CA148613 Gasket-Housing Cover (Model C) 1
8940158633 Gasket-Housing Cover (Model D) 1 Tune-Up Kit
42 CA148602 Cover-Motor Housing (Model C) 1 8940158635 Incl. Index Nos. 7, 8, 41, 62, 66, 68, 106, 107, 115, 127 & 134
8940158632 Cover-Motor Housing (Model D) 1
43 C085245 Pin-Liner Dowel 1 Repair Kit
44 CA155947 Screw w/Lockwasher 4
8940158636 for CP749 Incl. Index Nos. 7, 8, 41, 62, 66, 68, 97, 99, 105, 106,
107, 108, 115, 127, 134 & 137)
45 8940158535 Spacer (Model D) 1
8940158637 for CP749-2 Incl. Index Nos. 7, 8, 41, 62, 66, 68, 97, 99, 105,
106, 107, 108, 115, 127, 134 & 137
54 C066342 Bearing-Ball 2
58 KF136268 Plate-Rear End 1 Conversion Kit Model C to Model D
60 CA148607 Liner 1 8940158674 Incl. Index Nos. 41, 42 & 45
61 CA148606 Rotor 1
62
CA148605 Set-Rotor Blade (set of 6) 1
65 KF134665 Plate-Front End 1
CA155269 OPERATOR'S MANUAL
66
CA087513 Seal-Oil 1 8940169120 CE DECLARATION
68
C087266 O-Ring 1 6159948710 SAFETY INSTRUCTIONS
8940169115 rev 01
