Fig. 1

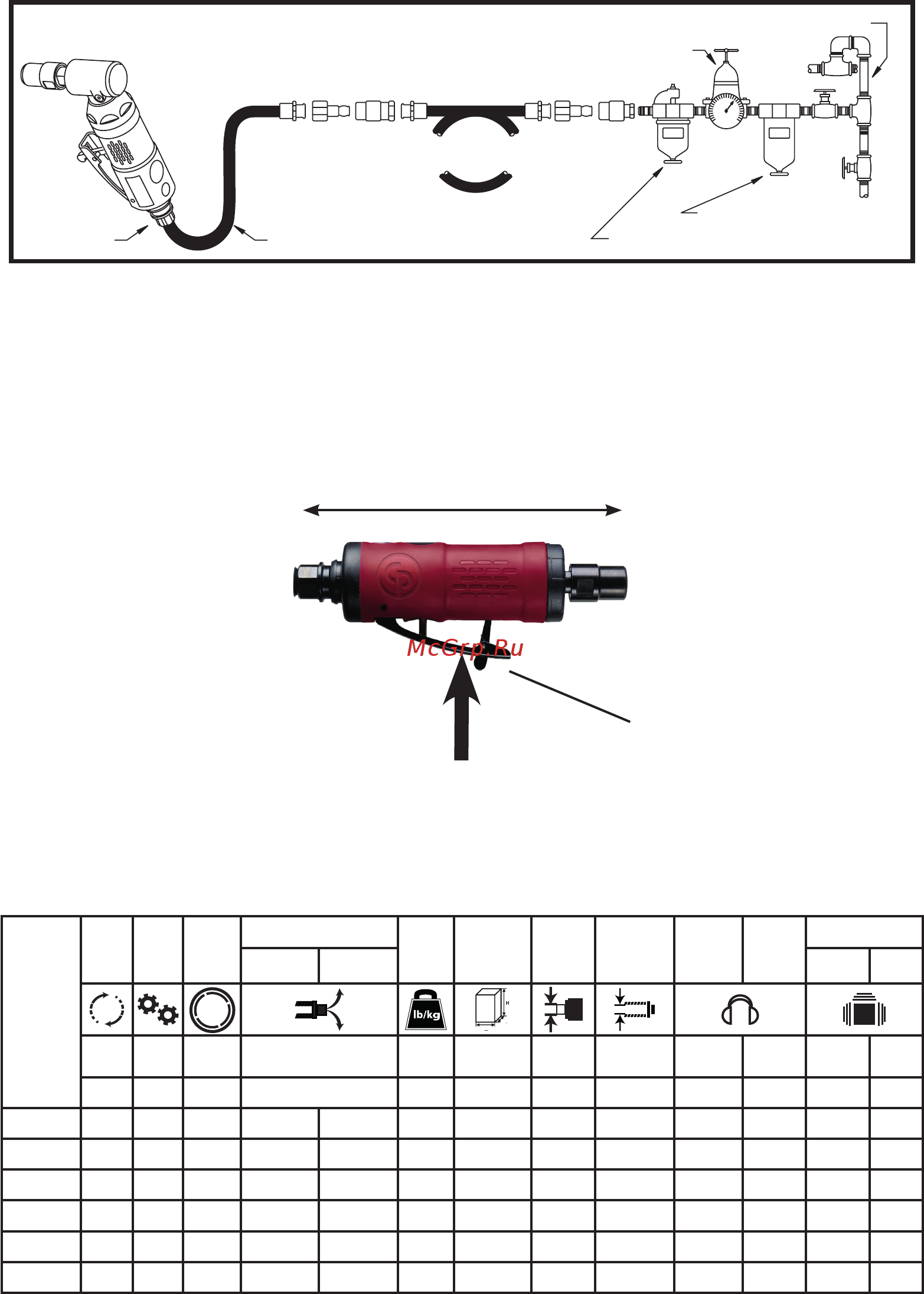

Air Diagram:
Model
Speed Power Collet
Air consumption
Weight
Dimension
L
Air Inlet.
Inner hose
diameter
Sound
Pressure
Sound
Power
Vibrations
Free speed at load
ahd k
W
L
[RPM]
[HP]
[W]
[inch]
[mm]
[NI/min]
[SCFM]
[lb.]
[kg]
[in.]
[mm]
[in.]
[in.]
[mm]
[dB(A)] [dB(A)] [m/s
2
] [m/s
2
]
1 2 3
4
5 6 7 8 9 10 11 12
CP9105QB 28,000
0.32
240
1/4”
6.35
558
19.7
311
8.7
0.8
0.4
6.3
160
1/4”
3/8”
10
80 91 3.6 2
CP9106QB 23,000
0.32
240
1/4”
6.35
516
18.3
311
8.7
1.5
0.7
6.4
165
1/4”
3/8”
10
80 91 5.1 2.6
CP9108QB 23,000
0.32
240
1/4”
6.35
516
18.3
311
8.7
1.1
0.5
7.9
200
1/4”
3/8”
10
80 91 5.1 1.6
CP9110QB 27,000
0.32
240
1/4”
6.35
516
18.3
311
8.7
1.5
0.7
10.2
260
1/4”
3/8”
10
80 91 4.9 2.5
CP9111QB 22,000
0.47
350
1/4”
6.35
600
23
311
8.7
1.5
0.7
6.3
160
1/4”
3/8”
10
80 91 3.7 1.6
CP9112QB 22,000
0.47
350
1/4”
6.35
708
25
311
8.7
2.9
1.3
13.4
340
1/4”
3/8”
10
80 91 2.7 1.2
Fig. 2
L
Start
(1/2”) NPT
(1/2”) NPT
(1/2”) NPT
1/2” (12mm)
1/2” (12mm)
3/8” (10mm)1/4” NPT
