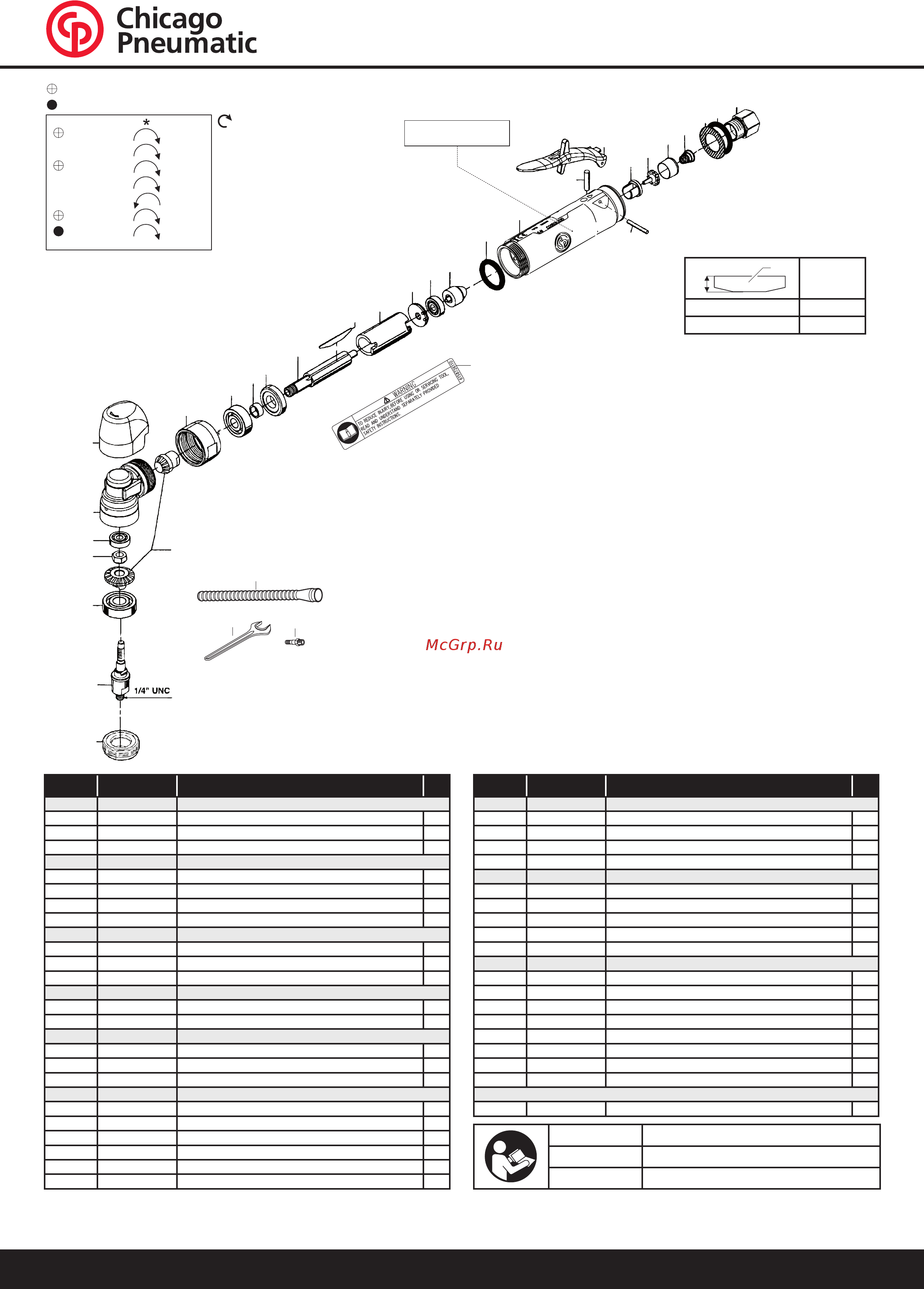

CP3019-12AF, CP3019-20AF

Angle sander

Spare parts without part number are not sold separately

1 / 1

2050541963 Rev 03

101

13 / 18

31 / 18

28 / 11

28 / 25

35 / 30

1 / 11

32 / 34-36

1.4Nm

10Nm

35Nm

25Nm

11Nm

“Loctite 222”

“Loctite 270”

XXXXX rpm

6.3 bar 90 psi

Item Part No Description Qty

A 2050542053 AIR INLET KIT

1 - Adapter complete 1/4" 1

2 - Silencer 1

3 - O-ring 1

B 2050542063 THROTTLE KIT

4 - Spring valve 1

5 - Tube inlet 1

6 - Throttle valve 1

7 - Seat valve 1

C 2050542073 LEVER KIT

8 - Throttle lever 1

9 - Pin 1

10 - Pin 1

D 2050542083 REAR PLATE KIT

14 758.63 Ball bearing

15 - Rear end plate 1

E 2050542093 FRONT PLATE KIT

19 - Front end plate 1

21 758.113 Ball bearing CP3019-.. 1

20 - Collar rotor 1

F 2050542103 MOTOR KIT

12 - O ring 1

D 2050542083 REAR PLATE KIT 1

E 2050542093 FRONT PLATE KIT 1

16 400.134 Cylinder 1

17 434.55 Blade 3

18 426.92 Rotor 1

Tightening direction

Sens de serrage

Sentido de apriete

Anziehrichtung

Senso di serraggio

Sentido de aperto

Kiristyssuunta

Åtdragningsriktning

Tilstrammingsretning

Tilspændingsretning

Schroefrichting

Φορά σύσφιξης

Item Part No Description Qty

H 2050541313 BEVEL GEAR KIT

14 758.63 Ball bearing

31 - Gear-bevel 1

32 - Nut 1

33 758.117 Ball bearing

I 2050542203 ANGLE HEAD KIT CP3019-..AF

H 2050541313 BEVEL GEAR KIT

29 6155704290 Sleeve protection 1

30 595.230 Housing angle 1

35 672.143 Cap-angle housing 1

36 6155011050 Threaded spindle 1/4" UNC (CP3019-..AF) 1

11 2050542193 Motor housing Kit 1

28 730.179 Sleeve alignment 1

53 6158010030 Flat wrench 7/16" (CP3019-..AF) 1

54 6157040190 Air hose nipple ¼" for 5/6" ID hose 1

55 6158751060 Exhaust hose L=31" 1

100 6158726110 Warning instruction label 1

TUNE UP KIT

2050542133 Including Part No. 2, 12, 17, 9, 10, 21, 33 1

H maxi 6.6

H mini 5.8

2050541963 Operator's manual

6159948770 Safety instructions sander

2050541943 EC declaration sander

13 457.29 1

13 457.30 1

Governor CP3019-20AF

Governor CP3019-12AF
