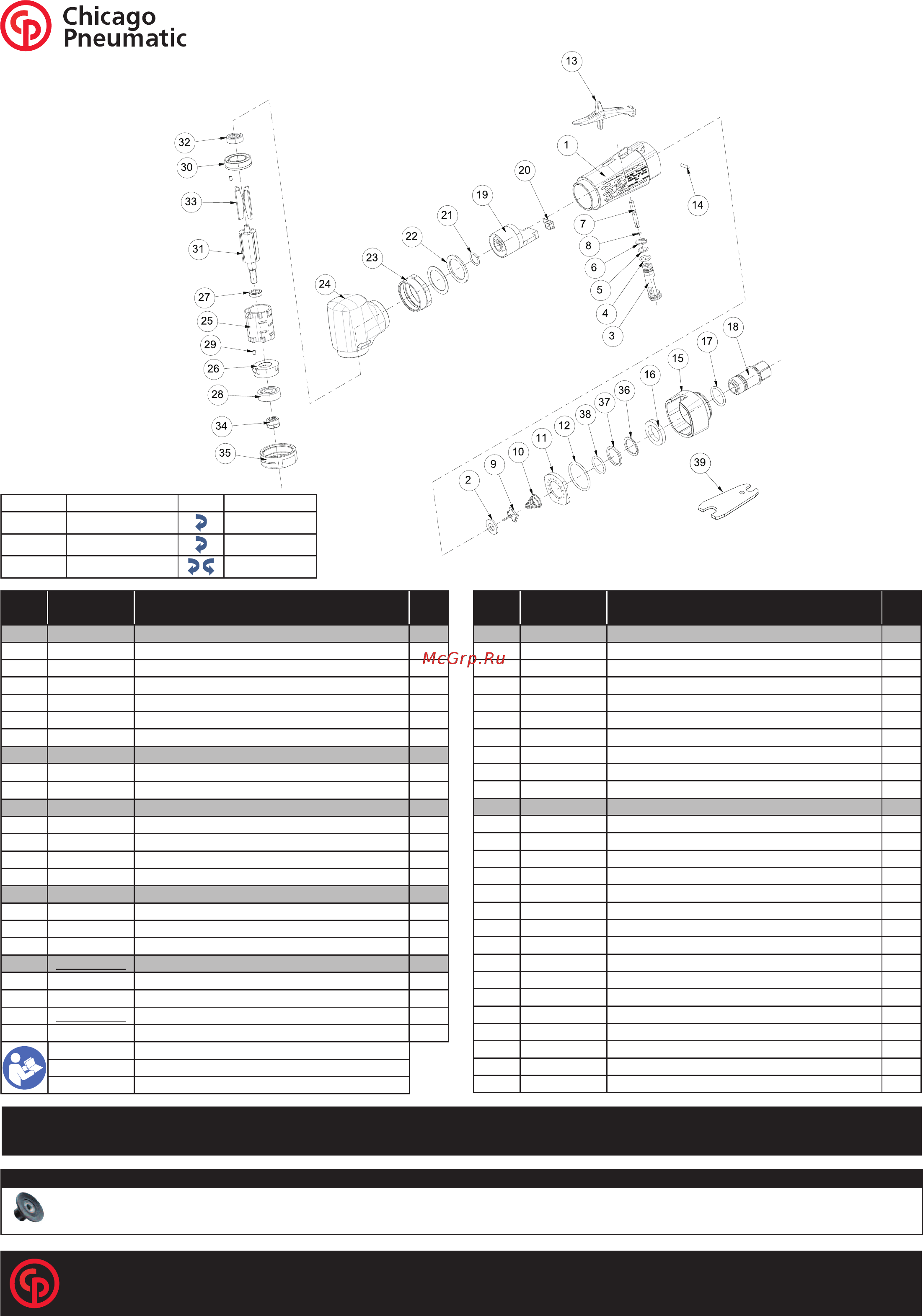

CP3030-325AFR

Sander

Index

Part

Ref

Description Qty

A 6154600400 REGULATOR ASSEMBLY

3 REGULATOR 1

4 O-RING 8.1x1.6 1

5 O-RING 8x1 1

6 SPRING RING WR9 1

7 VALVE STEM 1

8 O-RING 2x1 1

B 2050546343 VALVE KIT

9 TIP VALVE 1

10 SPRING 1

C 2050546353 FRONT PLATE ASSEMBLY

26 FRONT PLATE 1

27 WASHER 1

28 6157581380 BEARING 8x22x7608Z 1

29 PIN SPRING 2.5x4 1

D 2050546363 REAR PLATE ASSEMBLY

29 PIN SPRING 2.5x4 1

30 REAR PLATE 1

32 6157580630 BEARING 5x16x5625ZZ 1

2050546403 TUNE-UP KIT CP3030-3..

2 SEAL 1

16 FELT 1

2050547783 BLADE 300W (SET OF 4) 1

22 GASKETS (x2) 1

Index

Part

Ref

Description Qty

F 2050546413 SMALL PARTS KIT

6 SPRING RING WR9 1

8 O-RING 2x1 1

12 O-RING27x2 1

14 NEEDLE 2.5x11.8 1

17 O-RING 17x2 1

21 O-RING 10.5x1.5 1

36 EXTERNAL RING 1

37 SPACER 1

38 O-RING 15.6x1.78 1

1 2050547773 HANDLE ASSY (incl. Part # 15) 1

11 6155740660 AIR CONTROL RING 25 000RPM 1

13 2050541493 SAFETY LEVER 1

15 REAR CAP 1

18 2050542533 INLET ASSY 1

19 6153212410 INSERT 1

20 6156561900 RUBBER GASKET 1

23 6157301890 NUT 1

24 6155653210 MOTOR HOUSING 1

25 6154001500 CYLINDER 1

31 2050548013 ROTOR 1

34 2050552963 ROTOR NUT 1

35 6156731400 COVER 1

39 2050548063 SPANNER 1

6158727980 WARNING STICKER 1

2050552903 EC declaration

6159948770 Safety instructions

2050553893 Operator's manual

Assembly instructions

Item # Tightening torque Dir. Glue

1-18 7,5 ft.lb - 10 Nm

35-24 11 ft.lb - 15 Nm Loctite 222

24-23-1 26 ft.lb - 35 Nm

Loctite 243

Chicago Pneumatic

www.cp.com

Spare parts without part number are not sold separately

2050553863 rev. 2

Recommended accessories

2050549913 2" pad 1/4"-20 (included)
