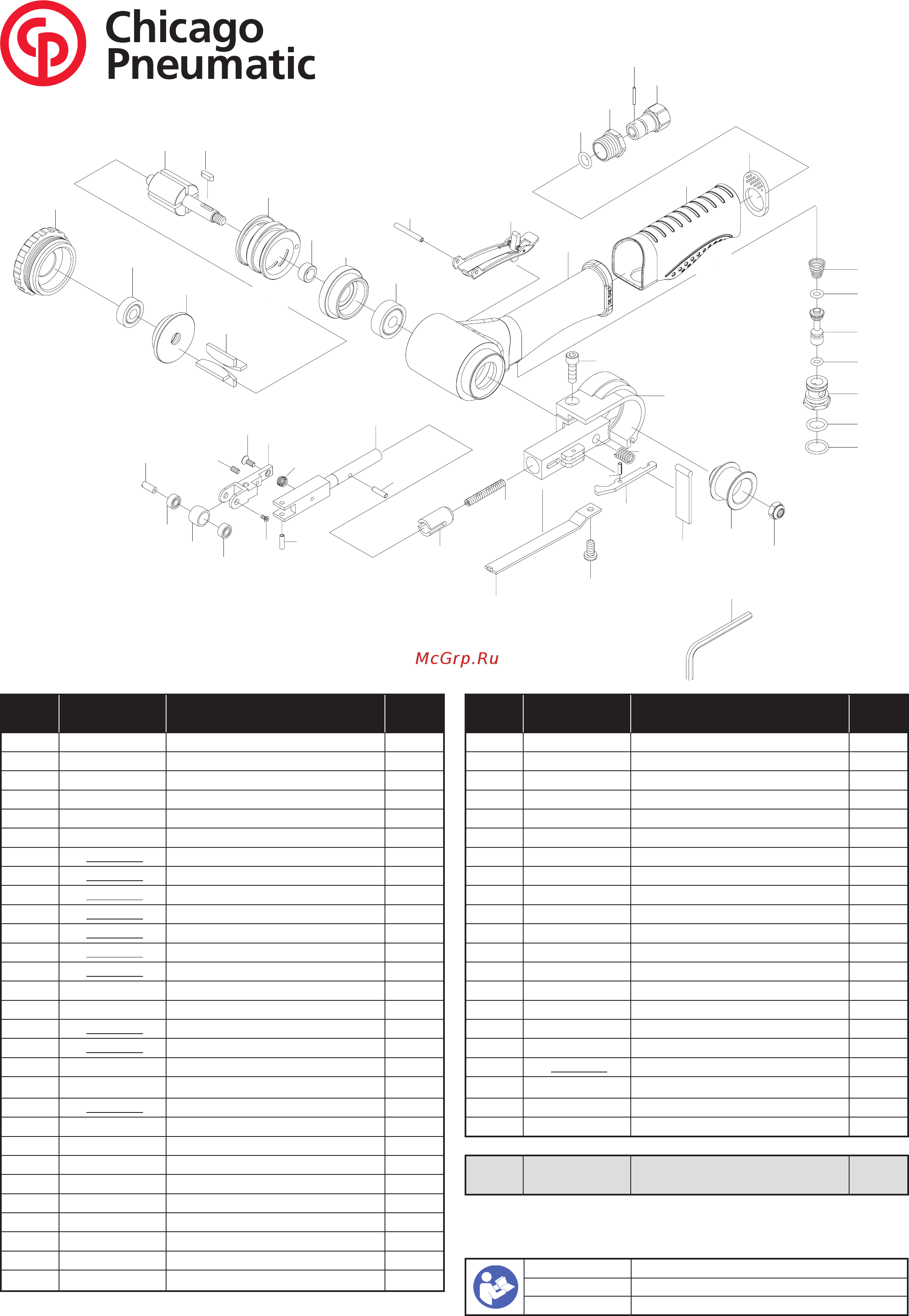

CP9779- Model C

Air Sander

07/2016

2050502143 rev.11

Spare parts without part number are not sold separately - High wear parts underlined

8940168906 Operator's manual

4687093 Warnig Label

6159948770 Safety instructions

Item No. Parts No. Description Qty

1 2050500283 Housing 1

2 2050500293 Guard 1

3 2050499813 Air Inlet 1

4 2050499823 Throttle Lever Assembly 1

5 2050499833 Valve Stem 1

6 2050499843 Valve 1

2050485133 O-Ring (4,8*1,9) 1

2050499853 Spring 1

2050499863 O-Ring (4,47*1,78) 1

2050485153 O-Ring (12*1,6) 1

2050485863 O-Ring (9,8*1,9) 1

2050549103 Space 1

2050500303 Ball Bearing 1

14 2050500313 Rear End Plate 1

15 2050500323 Rotor 1

2050524843 Rotor Blade (Set Of 4) 1

2050500333 Key (3*3*10) 1

18 2050500343 Cylinder 1

19 2050500353 Front End Plate 1

2050500363 Ball Bearing (628ZZ) 1

21 2050499953 Cap 1

22 2050500373 Drive Pulley 1

23 2050500383 Hexagon Nut 1

24 2050500393 Shoe 1

25 2050500403 Bolt (M5*16) 1

26 2050500413 Dust Cover 1

27 2050496183 Spring Pin (3*11.8) 1

28 2050500423 Exhaust Deector 1

29 2050500433 Screw (M4*8) 1

Item No. Parts No. Description Qty

30 2050500443 Screw (M3*8) 1

31 2050500453 Spring Pin (3*10) 1

32 2050500463 Screw M2*5) 1

33 8940166810 Ball Bearing (684ZZ) 2

34 2050500483 Idle Pulley Shaft 1

35 2050500493 Spring 1

36 2050500503 Tension Bar 1

37 2050500513 Bushing 1

38 2050500523 Pulley assembly 1

39 2050500533 Spring 1

40 2050500543 Bracket (incl. 33, 34 & 38) 1

41 2050500553 Screw (M3*6) 1

42 2050500563 Spring Pin (2,5*8) 1

43 2050500573 Spring 1

44 2050500583 Safety Lever 1

45 2050500593 Lock Pin (3*11,8) 1

46 2050500223 Grip 1

2050485623 O-Ring ( 9*2) 1

51 2050500243 Screw 1

52 2050500253 Pin ( 2*14,8) 1

53 2050500263 Hex. Key Wrench (4mm)

2050503853

Tune-up Kit ((Incl. Part #: 7, 8, 9, 10 , 11, 12,

13, 16, 17, 20, 50)
