06/2016

8940174696 Rev. : 01

Spare parts without part number are not sold separately

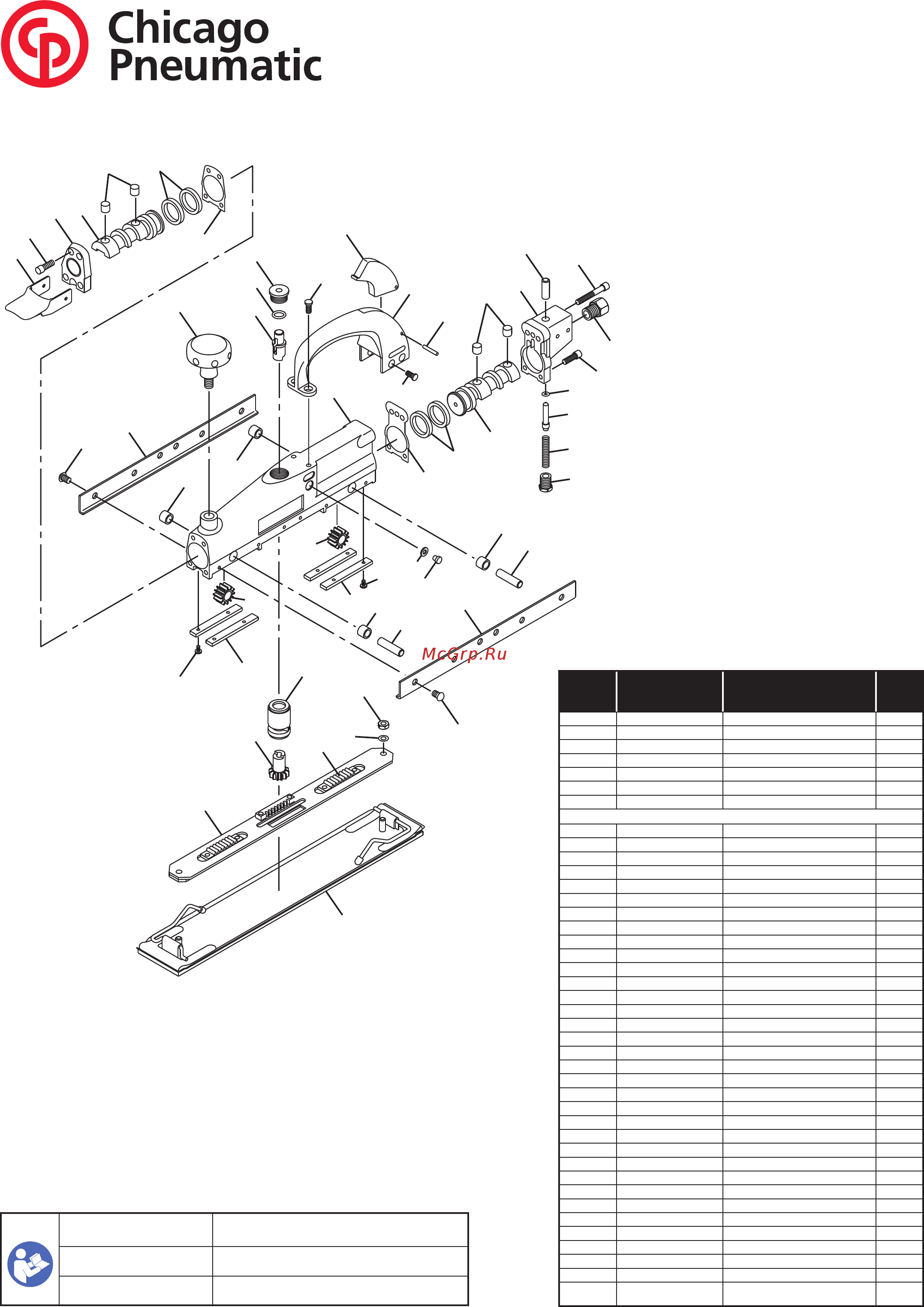

CP7268

Model C

Sander

Item

No.

Part No. Description Q'ty

1 8940163266 Screw 6

2 8940163267 Front Cap 1

3 8940163268 Piston 2

4 8940163269 Plug 4

5 8940163270 Piston Ring 4

6 8940163271 Front Gasket 1

7 8940163272 Body 1

8 8940163273 Knob 1

9 8940163274 Wear Plate 4

10 8940163275 Screw 5

11 8940163276 Bearing 4

12 8940163277 Gear 2

13 8940163278 Gear Shaft 2

14 8940163279 Plunger 1

15 8940163280 O-Ring 1

16 8940163281 Adj. Shaft 1

17 8940163282 Actuator Valve 1

18 8940163283 Actuator Gear 1

19 8940163284 Washer 1

20 8940163285 Screw 1

21 8940163286 Handle 1

22 8940163287 Screw 2

23 8940163288 Trigger 1

24 8940163289 Pin 1

25 8940163290 Screw 4

26 8940163291 Hex. Nut 2

27 8940163292 Washer 2

28 8940163293 Carrier 1

29 8940163294 Pad Assembly 1

30 8940163295 Side Strap 2

31 8940163296 Screw 12

32 8940163297 Rear Gasket 1

33 8940163298 Rear Cap 1

34 8940163299 Bushing 1

36 8940163300 Valve Pin 1

37 8940163301 O-Ring 1

38 8940163302 Valve Spring 1

39 8940163303 Valve Plug 1

40 8940163304 Screw 1

41 8940163305 Hose Adapter 1

42 8940163581 Cover Carrier 1

43 KF127245 Piston Rack with 2

rivets

8940173861 Operator’s Manual

6158727980 Warning label

6159948700 Safety Instuctions
