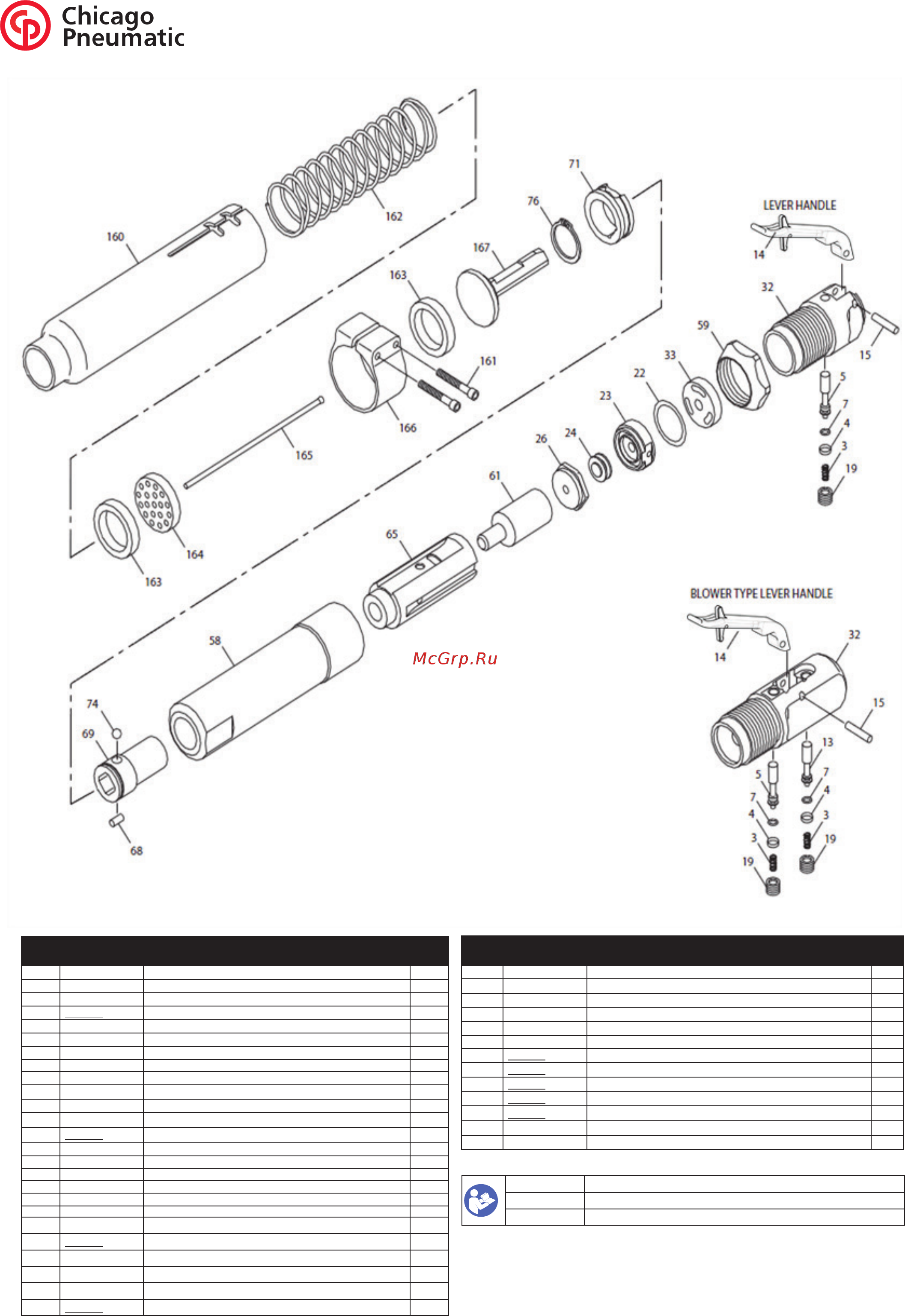

Chicago Pneumatic CP0456-LASAN Схема онлайн

P122303 Operator’s Manual

CA144007

Decal-Safety Warning

6159948780 Safety Instuction

Spare parts without part number are not sold separately - High wear parts underlined

03/2015

2050563043 Rev 03

Item Parts No. Description Qty

3 P091585 Spring-Valve 2

4 P091584 Cap-O-Ring 2

5 P091582 Valve-Throttle 1

P083076 O-Ring 2

13 P091583 Valve-Blower 1

14 475353 Lever-Assembly 1

P084042 Lever-Throttle (Blower Type) 1

15 P084043 Pin-Lever 1

19 P009876 Plug-Valve 2

22 P084037 Shim (.005 in.) As

P084038 Shim (.010 in.) Requ'd

23 P043309 Lid 1

P043310 Valve-Cycling (Metalic) 1

P119294 Valve-Cycling (Rubber)(Not Shown) 1

26 P084034 Case-Valve Cycling 1

32 P109273 Head-Cylinder 1

P113310 Head-Cylinder (Blower Type) 1

33 P125736 Spacer-Head 1

58 P113312 Cylinder (Incl: Index No. 65) 1

59 P109271 Locknut-Cylinder 1

61 P084033 Piston 1

65 P041557 Sleeve-Cylinder 1

68 P088815 Lock-Rubber 1

69 P050933 Sleeve-Chisel (1/2" Q.O.) 1

P088813 Ring-Chisel Lock 1

Item Parts No. Description Qty

74 P070416 Ball-Steel (5/16") 1

76 P050934 Ring-Retaining (External)(#5160-98) 1

160 P117630 Housing (Round Nose) 1

P117631 Housing (Rectangular Nose) 1

161 P117633 Screw-Soc. Hd. (#10-32 x 1 1/4") 2

162 P100150 Spring-Compression 1

163

P100964 Buffer-Holder 2

164

P100145 Holder-Needle 1

165

P100146 Set-Needle (7 in.)(Consists of 19 Steel Needles) 1

P106454 Set-Needle (7 in.)(Consists of 19 Stainless Steel Needles) 1

P106455 Set-Needle (7 in.)(Consists of 19 Beryilium Copper Needles) 1

166 P117632 Clamp-Housing 1

167 P100144 Anvil 1

CP0456 LASAN 1 LESAR

Needle scaler & Chipping Hammer
