.500 Dia.

CHISEL SHANK DIMENSIONS

.750 Dia.

1.625

.401 Dia.

1.164

.500R

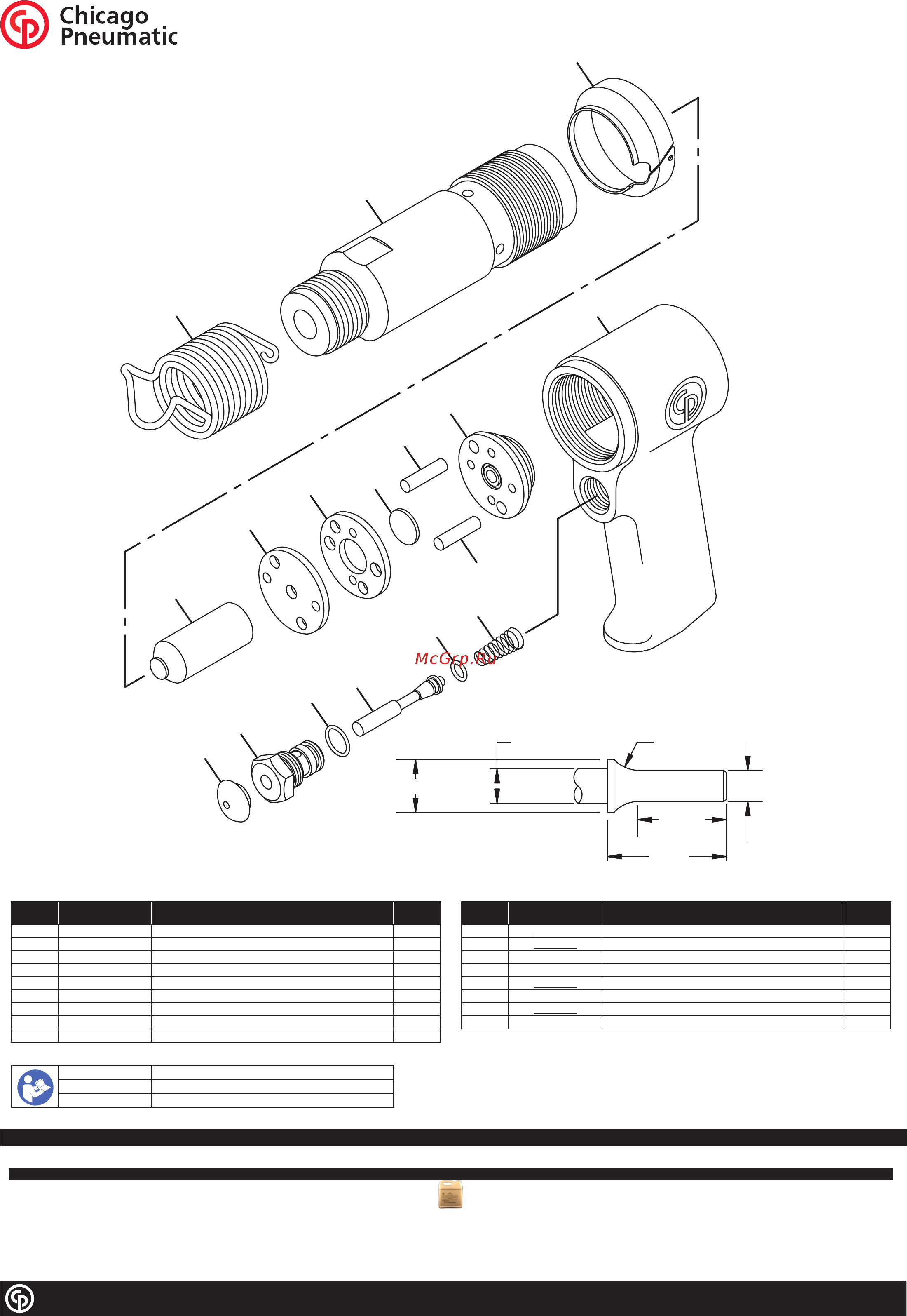

CP716

Hammer

Item Part No Description

Qty

1 CA157637 Plate (Valve Disc) 1

2 CA157638 Pin 2

3 CA157639 Piston 1

4 CA157640 Retainer 1

5 CA157642 Bushing-Valve 1

6 CA157643 Valve-Throttle 1

7 CA157644 Trigger 1

8 CA157645 Spring-Throttle 1

9 CA157646 Seat-Rear Valve 1

Item Part No Description

Qty

10 CA157647 Valve-Washer 1

CA157648 Seat-Front Valve 1

12 CA157650 Cylinder 1

13 CA157651 Deector-Exhaust 1

CA157652 O-Ring-Valve 1

15 CA157653 O-Ring-Bushing 1

CA157659 Housing-Handle (Cast-In Logo) 1

CA156894 Warning sticker (Not Shown) 1

Recommended accessories

Chisels (0.401" - 10,2mm) Airoilene Oil

A0406050 : Rivet cutter P0889507 : 1 gal. (3,8l)

A046063 : Angle scaling chisel

A046064 : Diamond point chisel Swivel air inlet (1/4")

CA155807 : Round shank set - 6pcs 8940158412

(incl. Rivet cutter, twin blade cutter, cold chisel, straight punch, spot weld splitter)

Chicago Pneumatic

1800 Overview Drive, 29730, SC USA www.cp.com

Spare parts without part number are not sold separately 2050553273 rev. 1

2050553293 EC declaration

6159948780 Safety instructions

CA157657 Operator's manual
