Chicago Pneumatic GV5 [2/36] Air diagram

Chicago Pneumatic GV5 [2/36] Air diagram
Fig. 01
Fig. 02

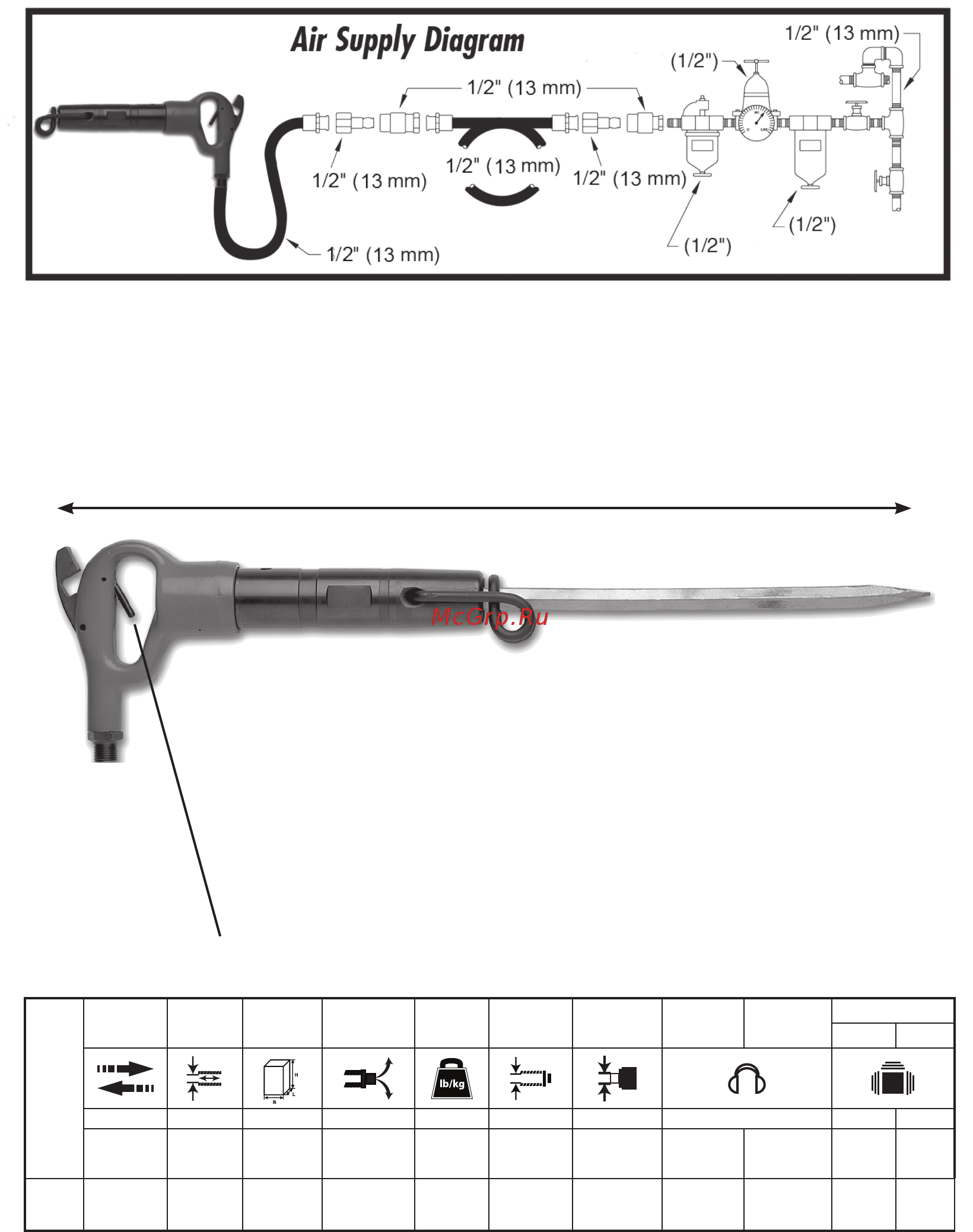

Air Diagram:
A
Model
Blows
per minute
Bore &
stroke
Dimension
L
Air
Consumption
Weight
Inner Hose
Dia.
Air Inlet
Sound
Pressure
LpA
Sound
Power
LwA
Vibrations
a
hd
K
1 2 4 2 3 5 6 7
8 9
[min-1]
[in.]
[mm]
[in.]
[mm]
[cfm]
[l/s]
[lb]
[kg]
[inch.]
[mm]
[inch] [dB(A)] [dB(A)]
[m/s²] [m/s²]
GV5 2400
1.1 & 2.07
28 & 52.5
15.0
385
17.6
8.3
11.2
5.1
3/8”
10
1/2” 95 106 19.8 7.9
