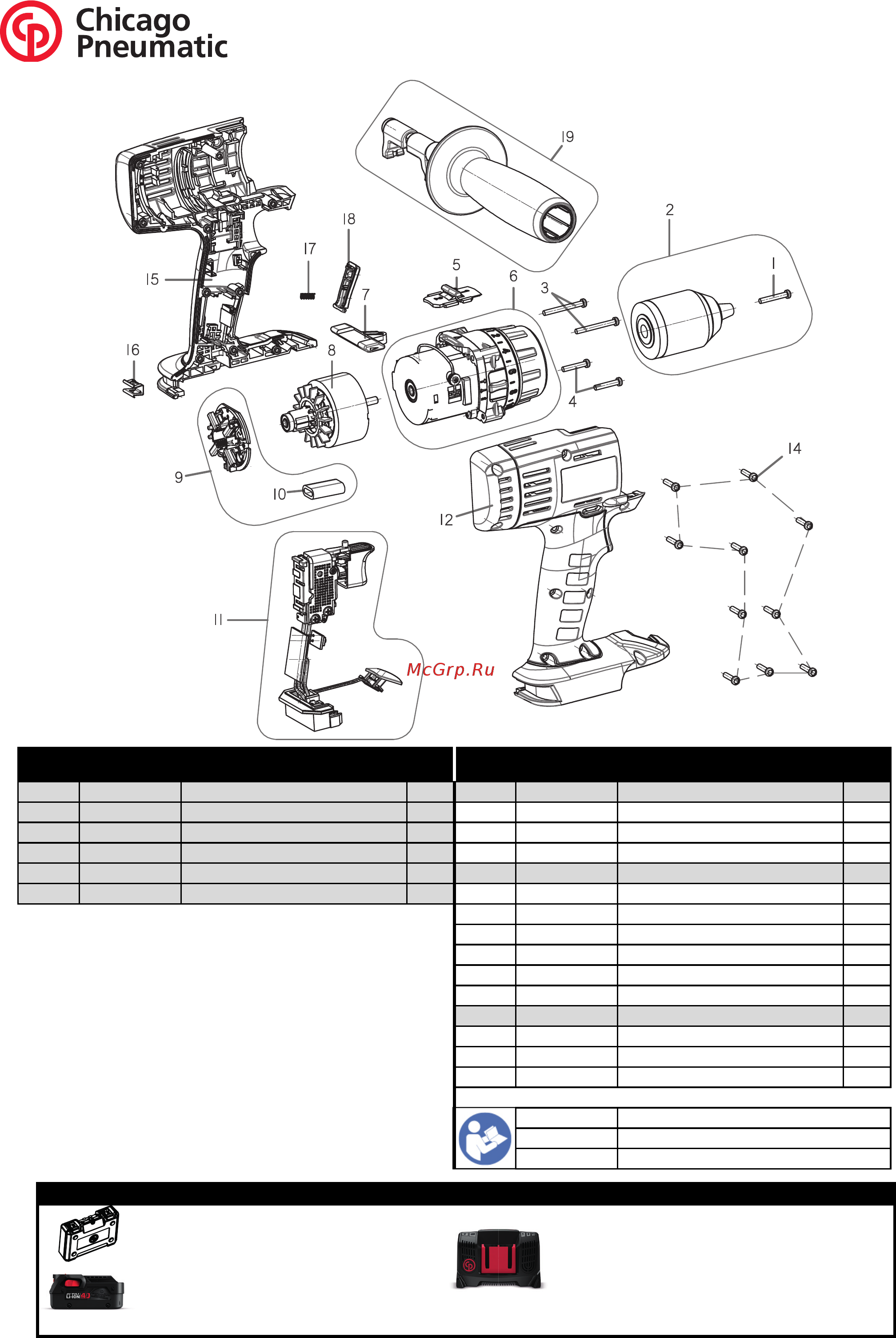

CP8548 Series

Model C

Cordless Hammer Drill 20V

Spare parts without part number are not sold separately - High wear parts underlined

11/2017

8940182670 rev.02

Index

No.

Part No. Description Qty.

Index

No.

Part No. Description Qty.

2 8940172663 ROHM Chuck 1 8940172667 Screw Kit

6 8940172662 Gear Train/Chuck Assy 1

1 Chuck Screw 1

8 8940172661 Motor Assy 1

3 Screw M3.5X30mm ( x2 ) 1

9 8940172660 Motor Carbon Brush 1

4 ST Screw, M3.5X1.27 Torx ( x2 ) 1

11 8940172659 Switch and LED 1 8940172668 Small Parts Kit

19 8940172665 Side Handle 1

2-speed Regulator Switch

7 Side 2 Side F/R Button 1

10 Ferrite Bead 1

16 Stamping bit clip 1

17 Spring for micro switch 1

18 Satch for micro switch 1

8940172666 Housing Kit

12 Plastic Housing Cover 1

14 8940172650 ST screw M3.5x16mm ( x10 ) 1

15 Plastic Housing Support 1

8940172299 Safety instruction

8940172294 Operator's manual

8950900061 Warning Label

Recommended Accessories

8940172669

Blow Mold Case

8940172261 20V 4Ah Battery

8940173636 20V 6Ah Battery

8940172262 Charger 20V Europe

8940172286 Charger 20V USA

8940172287 Charger 20V UK

8940172288 Charger 20V AUS

8940174305 Charger 20V Korea
