MX-M1204 MX-M904/M1054/M1204 (MAIN UNIT) 2 – 11

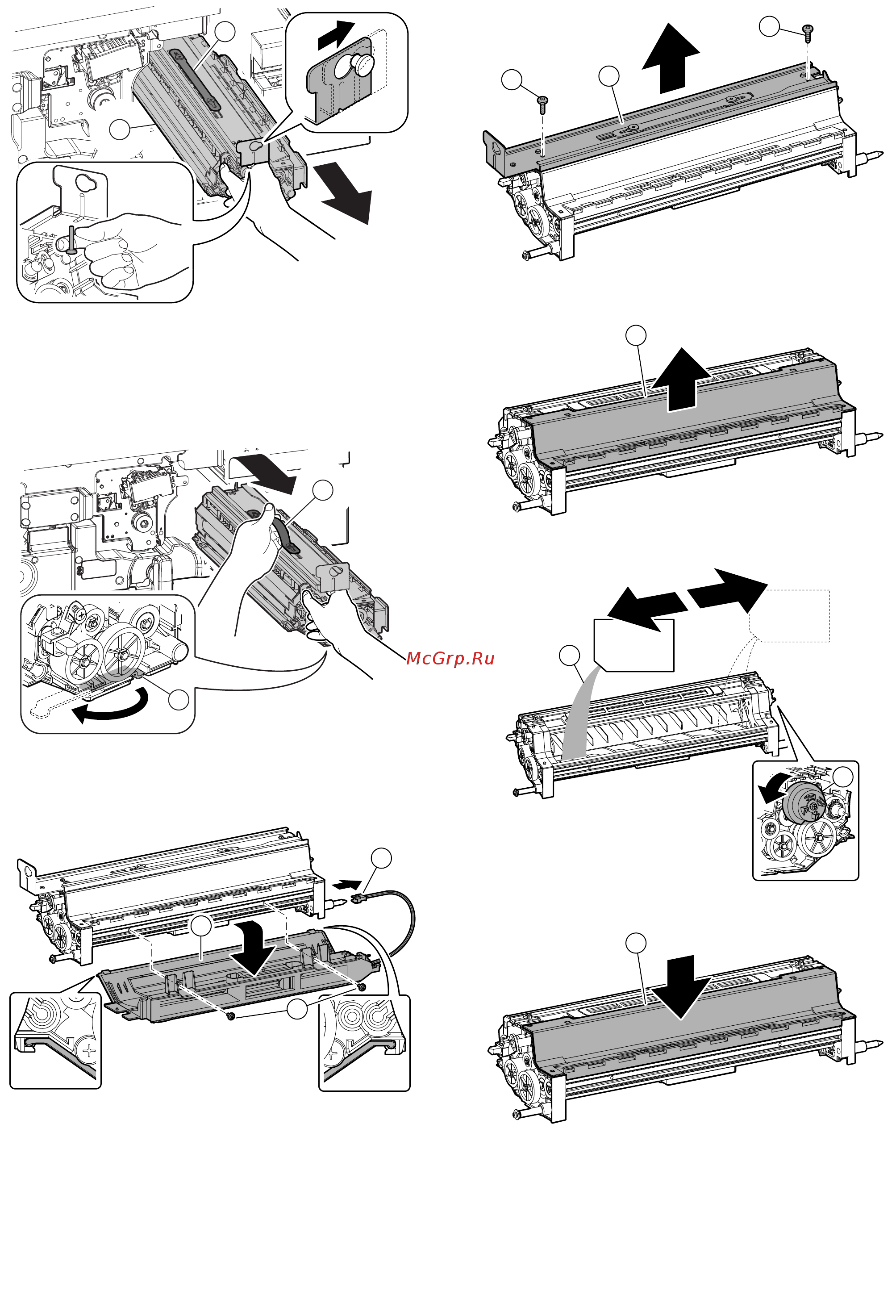

5) Hold the handle (a) of the developing unit, and lift it up to
remove completely.
* When placing the developing unit down, rotate the stabilizing
leg and place the developing unit down with the leg
extended.
6) Remove the connector (a), the screw (b), and the cover (c).
* Be careful not to smear the pin of the connector (a) with
toner.
7) Remove the screw (a), and remove the guide (b).
8) Remove the cover (a).
9) While rotating the coupling (a), supply developer (b).
10) Attach the cover (a).
11) Attach the guide (a), and secure it with the screw (b).
a
b
b
a
a
b
c
a
a
b
a
a
b
a
