MX-M1204 MX-M904/M1054/M1204 (MAIN UNIT) 2 – 6

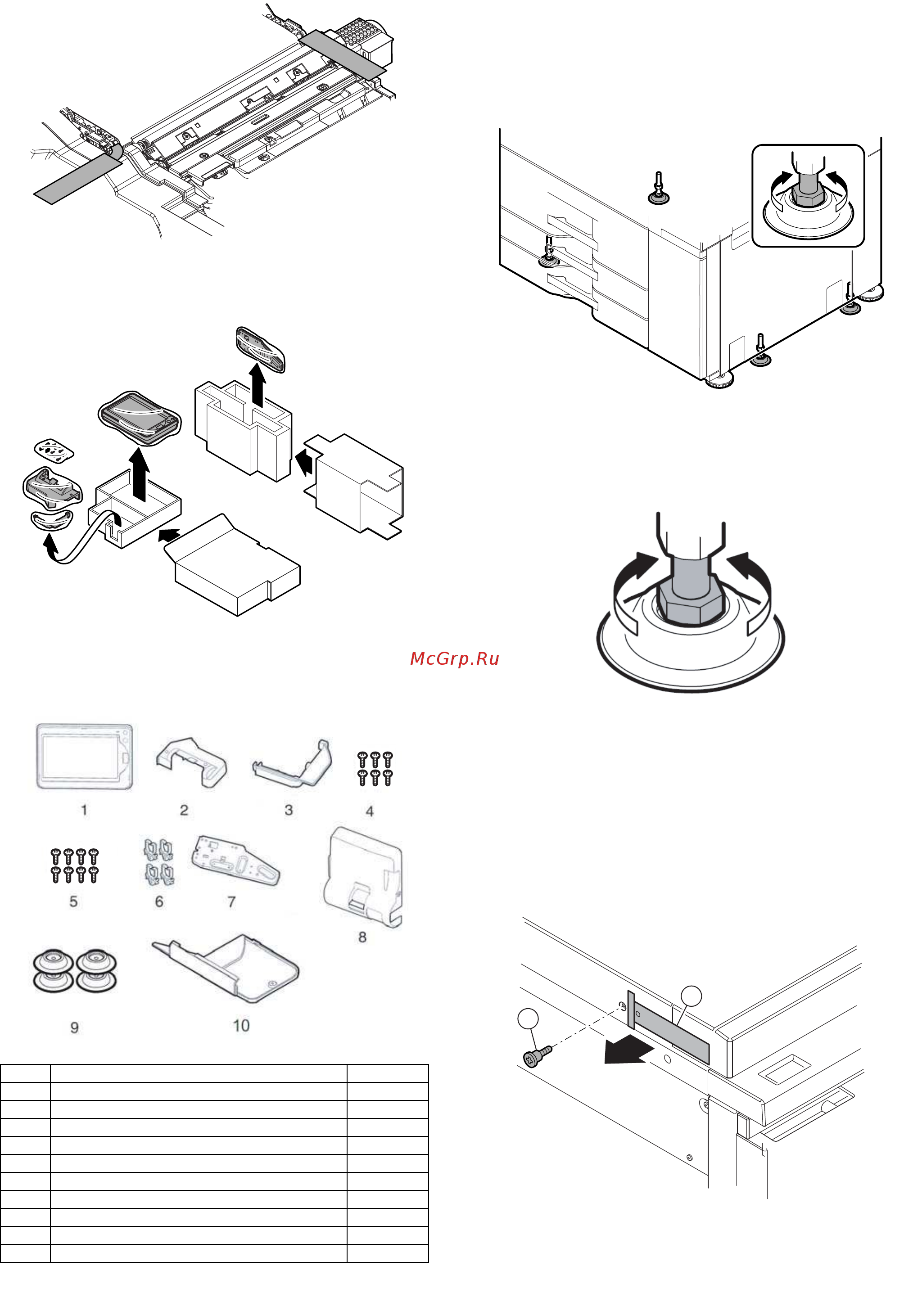

7) Remove the protection material and the caution label.

C. Included parts removal

1) Remove the included parts.

D. Included parts check

1) Check to confirm that all the parts are provided.

4. Installation

A. Machine height and tilt adjustments

1) Put the height adjuster plate (Packed items No.9 x4) under the

adjuster bolt at the bottom of the machine.

Turn the adjuster bolt to adjust the height and the tilt of the

machine.

MEMO: When the adjuster bolt is turned counterclockwise, the

height is decreased. When turned clockwise, the height is

increased. (Common to the options the height of which is

adjusted by the adjuster bolt.)

NOTE: Lower the height of the MX-CF11 to the lowest position

before adjusts the level between the MX-CF11 and the

main body.

Adjust the height of the top surface of main body refer-

ence to the top surface of the MX-CF11.

B. Lock release

(1) Scanner (2/3 mirror unit) lock release

1) Remove the scanner lock screw (a) and the caution label (b).

No. Name Quantity

1 Operation panel 1

2 Panel cover B 1

3 Panel cover below 1

4 Screw 3 x 6 6

5 Screw 4 x 8 8

6 Clamp 4

7 Panel support plate unit 1

8 Panel cover A 1

9 Height adjuster plate 4

10 Lower cover 1

LowHigh
