Sharp MX-4141N [5/19] Mx 4140n 4141n 5140n 5141n main unit
![Sharp MX-4141N [5/19] Mx 4140n 4141n 5140n 5141n main unit](/views2/1388487/page5/bg5.png)
MX-5141FN MX-4140N/4141N/5140N/5141N (MAIN UNIT) 2 – 1
MX-5141FN
6HUYLFH0DQXDO
[2] MX-4140N/4141N/5140N/5141N (MAIN UNIT)

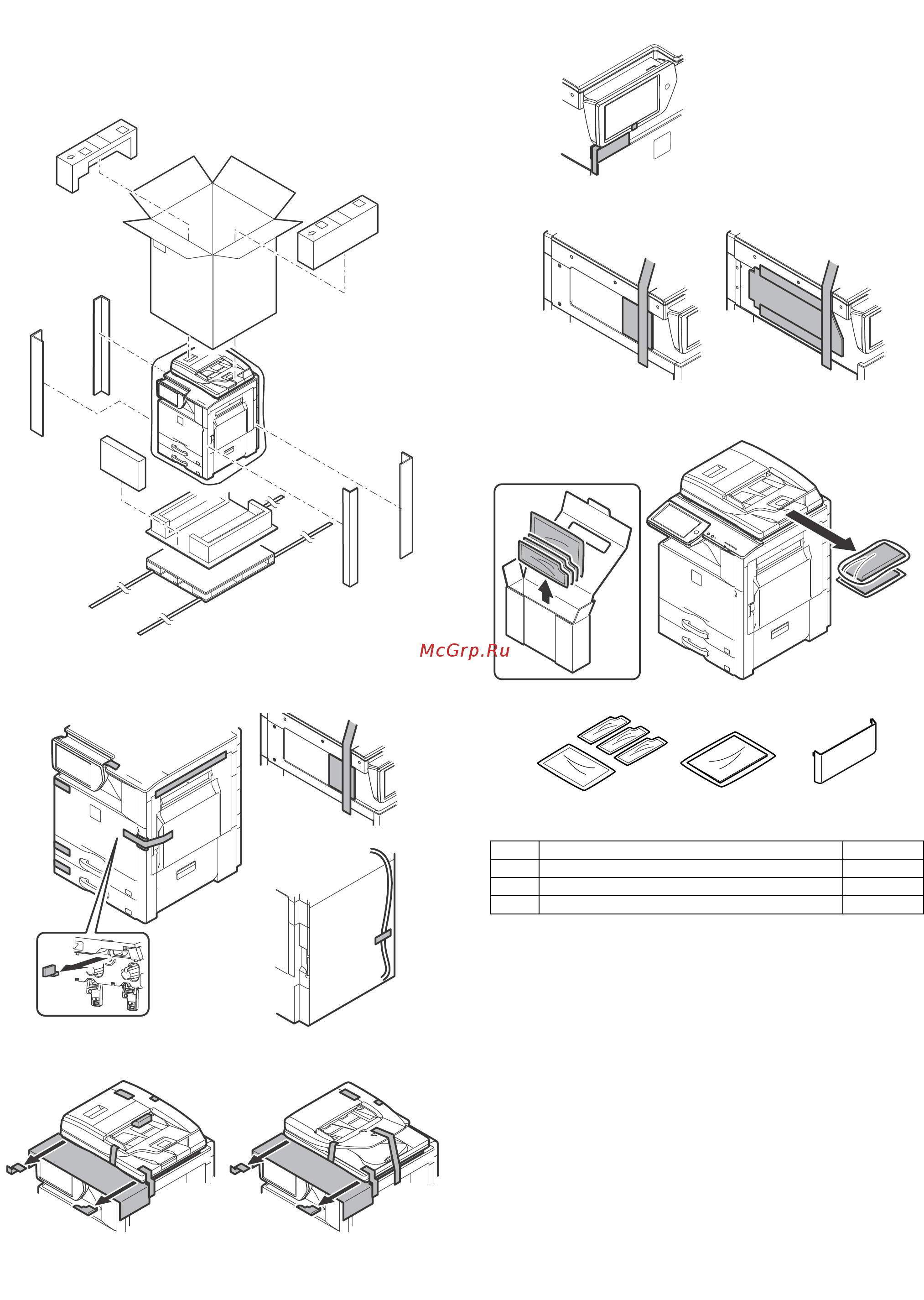

1. Unpacking
A. Unpacking procedure
1) Remove the PP band.
2) Remove the internal packing pads with the machine.
B. Removal of the fixing tape and protection
material
C. Packed items check
*1: North America only.
DSPF model RSPF model
No. Name Quantity
1 Developer
*1
4
2 Operation manual 1
3 Operation manual pocket 1
1
*1
2 3
