EN 7

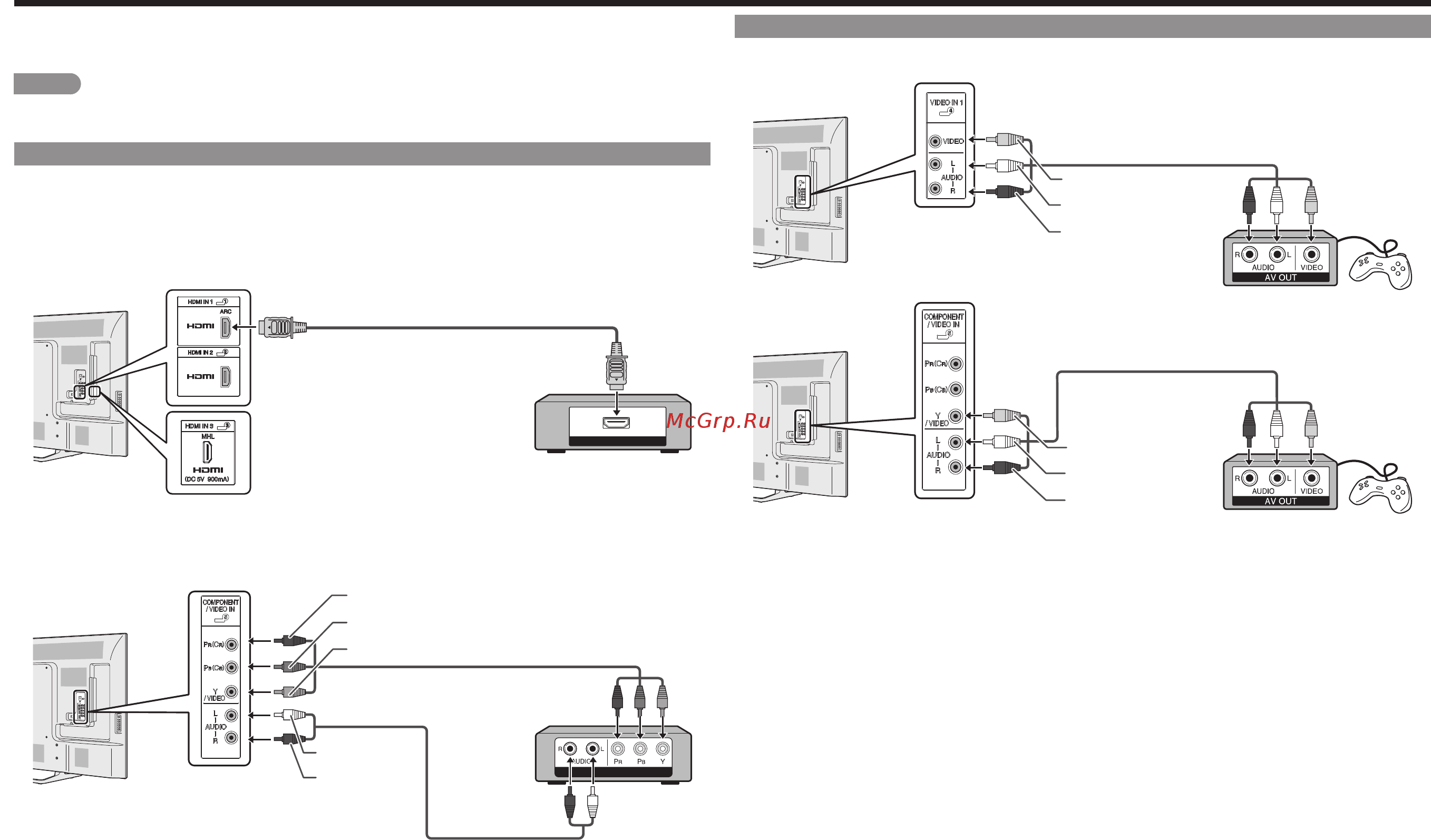

Connection
You can connect many types of external equipment to your Monitor. To view external source images, select
the input source by pressing INPUT on the remote control unit or on the Monitor.
For connecting the Monitor to external equipment, use commercially available cables.
CAUTION
• To protect equipment, always turn off the Monitor before connecting any external equipment.
• Please read the relevant operation manual (Blu-ray disc player, etc.) carefully before making connections.
Connecting a Blu-ray Disc/DVD Player or HD Cable/Satellite Set-top Box
■
When using an HDMI cable (HDMI IN 1, 2 or 3):
• The HDMI (High Definition Multimedia Interface) terminal is an audio-video interface that enables a connection for
audio and video signals using a single cable. The HDMI IN terminal supports high-resolution video input.
• To enjoy 1080p display capability, connect your external equipment using an HDMI-certified cable or a component
cable and set the equipment to 1080p output.
• Supported Audio format: Linear PCM, Dolby Digital, DTS, sampling rate 32/44.1/48kHz.
• When you connect ARC-compatible equipment, use HDMI IN 1.
HDMI OUT
HDMI-certified cable
■
When using a Component cable (COMPONENT/VIDEO IN):
• To enjoy 1080p display capability, connect your external equipment using an HDMI-certified cable or a component
cable and set the equipment to 1080p output.
• When you connect a component cable to the COMPONENT/VIDEO IN terminal, switch Input Select to
COMPONENT.
COMPONENT OUT
AUDIO-L
(White)
AUDIO-R
(Red)
Y (Green)
P
B
(Blue)
P
R
(Red)
Audio cable
Component video cable
Connecting a VCR, Game Console, Camcorder or Cable/Satellite Set-top Box
■
When using a Composite cable (COMPONENT/VIDEO IN or VIDEO IN 1):
• When you connect an AV cable to the COMPONENT/VIDEO IN terminal, switch Input Select to VIDEO.
AV cable
VIDEO (Yellow)
AUDIO-L (White)
AUDIO-R (Red)
AV cable
VIDEO (Yellow)
AUDIO-L (White)
AUDIO-R (Red)
