Sharp PN-65SC1 Буклет онлайн
Distributed by:
Make Lessons and Meetings
More Engaging and Empowering
Installation
LCD Panel
Max. Resolution
Max. Display Colours (approx.)
Pixel Pitch (H x V)
Max. Brightness (average)*
1
Contrast Ratio
Viewing Angle (H/V)*
2
Active Screen Area (W x H) (approx.)
Response Time
Backlight
Touchscreen Touch Technology
PC Connection Port
Power Supply
Multi Touch
Protection Glass
Touch Pen Function Button
Computer Input Video
Synchronisation
Plug & Play
Power Management
Input Terminals*
5
Output Terminals*
5
USB Hub Function
Expansion Slot
Speaker Output
Mounting
Power Supply*
6
Power Consumption
Environmental Operating Temperature
Conditions
Operating Humidity
Dimensions (W x D x H) (approx.) (display only)
Weight (approx.)
Main Accessories
Landscape
65-inch-class (64
1
/2-inch [163.9 cm] diagonal) TFT LCD
1,920 x 1,080 pixels
16.77 million colours
0.744 x 0.744 mm
350 cd/m
2
5,000 : 1
178°/178° (CR 10)
1,428.5 x 803.5 mm (56
1
/
4
" x 31
5
/
8
")
6.5 ms (grey to grey, avg.)
LED, edge lit
IR (infrared blocking detection method)
USB (2.0 compliant) (Type B) x 1
Supplied from main unit
10 points
Thickness: Approx. 4.1 mm*
3
Shock resistance: 130 cm*
4
N/A (passive pen)
Analogue RGB (0.7 Vp-p) [75 Ω], HDMI
TM
, DisplayPort
TM
Horizontal/vertical separation (TTL: positive/negative)
VESA DDC2B
VESA DPMS
PC analogue: Mini D-sub 15-pin x 1, HDMI x 4 (HDCP and 1080p compatible, PC / AV signal compatible),
DisplayPort (HDCP compatible, PC signal compatible) x 1, 3.5 mm-diameter mini stereo jack x 1, RS-232C D-sub 9-pin x 1
3.5 mm-diameter mini stereo jack x 1
USB 2.0 (type A) x 2
12 V, 2.4 A (power supplied when expanding the functions with an optional part)
10 W + 10 W
VESA (4 points), 400 x 400 mm, M6 screw
100 V – 240 V AC, 50/60 Hz
205 W
5˚C to 35˚C
20% to 80% RH (no condensation)
1,521 x 99 x 952 mm (59
7
/
8
" x 3
7
/
8
" x 37
1
/
2
")
57.5 kg (126.8 lbs)
AC power cord, remote control unit, battery (AAA size) x 2, set-up manual, blank sticker, cable clamp x 3, USB cable*
7
, pen tray, pen tray mounting screw x 2,
touch pen, camera mount, camera mount screw x 2, camera screw, CD-ROM, SHARP Display Connect license
*1 Brightness depends on input mode and other picture settings. Brightness level will decrease slightly over the lifetime of the product. Due to the physical limitations of the equipment, it is not possible to maintain a precisely
constant level of brightness. *2 Excluding the touch sensor part around the LCD panel. *3 Including anti-glare film on the front. *4 Approximate distance at which the glass panel can withstand the impact of a 500-gram iron ball
dropped on its centre. *5 Use a commercially available connection cable for PC and other video connections. *6 The AC power cord is an inlet type. The cable is bundled (3 pins). *7 Connect the bundled USB cable to the computer for
touch operation. If connected via a USB hub, the PN-65SC1 may not be recognised correctly and operation may be unstable.
Model Name PN-65SC1
Dimensions
Specifications
Units: mm (inch)
* Screen dimensions
* To use the VESA-standard mounting bracket, use M6 screws that are 8 to 10 mm plus the thickness of the bracket.
Adobe is either a registered trademark or trademark of Adobe Systems Incorporated in the United States and/or
other countries. Microsoft, Windows, Excel, and PowerPoint are either registered trademarks or trademarks of
Microsoft Corporation in the US and/or other countries. Mac, OS X, and macOS are trademarks of Apple Inc.,
registered in the U.S. and other countries. Google Chrome and Android are trademarks of Google Inc. The terms
HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks
of HDMI Licensing Administrator, Inc. in the United States and other countries. DisplayPort is a trademark owned
by the Video Electronics Standards Association in the US and other countries. Intel, Intel Core, and Celeron are
trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Sempron and Athlon are
trademarks of Advanced Micro Devices, Inc. iOS is a trademark or registered trademark of Cisco in the US and other
countries and is used under license. All other brand names and product names may be trademarks or registered
trademarks of their respective owners. All screen images appearing in this brochure are simulated. Design and
specifications are subject to change without prior notice.

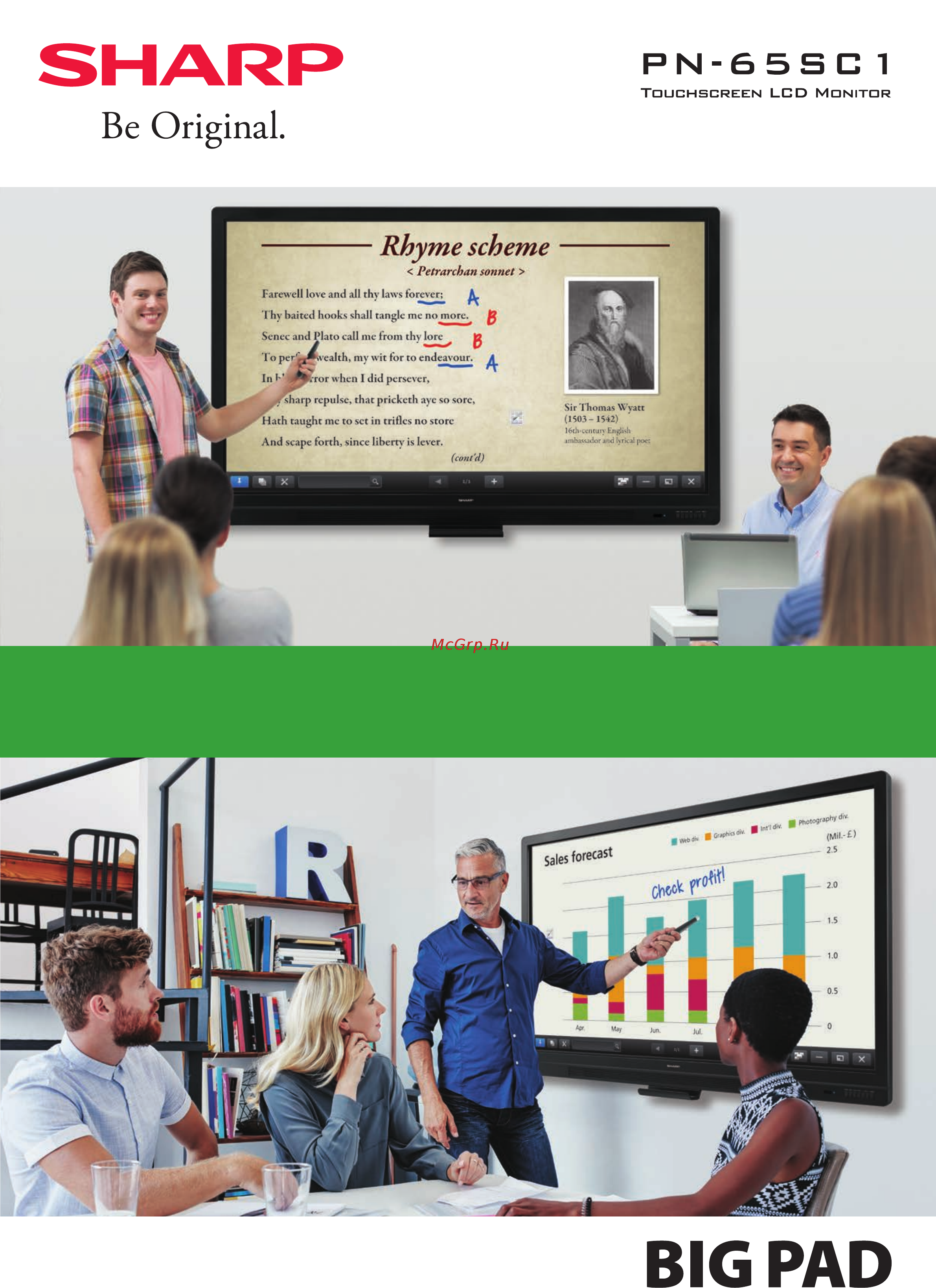

Source: “Farewell Love and All Thy Laws Forever” poem by Sir Thomas Wyatt on cover page
For SHARP Display Connect, up to 50 mobile devices can be connected simultaneously. Please comply with the license
agreements of your OS and installed applications. OS requirements (as of March 2017): Host: Windows 7, Windows 8.1,
Windows 10; Client: Windows 7, Windows 8.1, Windows 10, Mac OS X v10.7, v10.8, v10.9, v10.10, v10.11, macOS v10.12,
Android™ 2.3–7.1, iOS® 6–10. Connecting 26 or more mobile devices requires at least two LAN access points.
©SHARP CORPORATION (APR. 2017)
DisplayPort
input
PC/AV input
(HDMI)
(Side)
RS-232C input
PC analogue
input (D-sub)
Touch panel Audio input
USB
Audio
output
(Bottom)
[option]
[standard]
PN-ZB03W
LAN port
USB
(for wireless adapter)
USB
Input/Output Terminals
VESA holes*
200
(7
7
/
8
)
243
(9
9
/
16
)
157
(6
3
/
16
)
200
(7
7
/
8
)
57
(2
1
/
4
)
99
(3
7
/
8
)
102 (4)
51 (2)
1,521 (59
7
/
8
)
221 (8
11
/
16
)
31
(1
1
/
4
)
1,446* (56
15
/
16
)
952 (37
1
/
2
)
821* (32
5
/
16
)
< System Requirements >
Connected equipment
Model with USB 2.0 port and able to output resolution of 1,920 x 1,080
Windows® 7 (32-bit/64-bit), Windows® 8.1 (32-bit/64-bit), Windows® 10 (32-bit/64-bit),
Mac® OS X® v10.11, macOS® v10.12, Google Chrome™ OS v39 or later
Hardware
OS
Supplied software (Windows®)
Intel® Celeron® 1.6 GHz or AMD Sempron™ 1.6 GHz or higher
Intel® Core™ 2 Duo 2.8 GHz or AMD Athlon™ II x 2 2.8 GHz or higher recommended
2 GB or more
200 MB or more free space (additional space required for data storage)
CPU
Memory
Hard disk
To use the touch panel, connect the bundled USB cable to the computer. The touch panel operates with
the standard driver of each OS. On the Mac, operation is only possible in mouse mode.
