ENGLISH

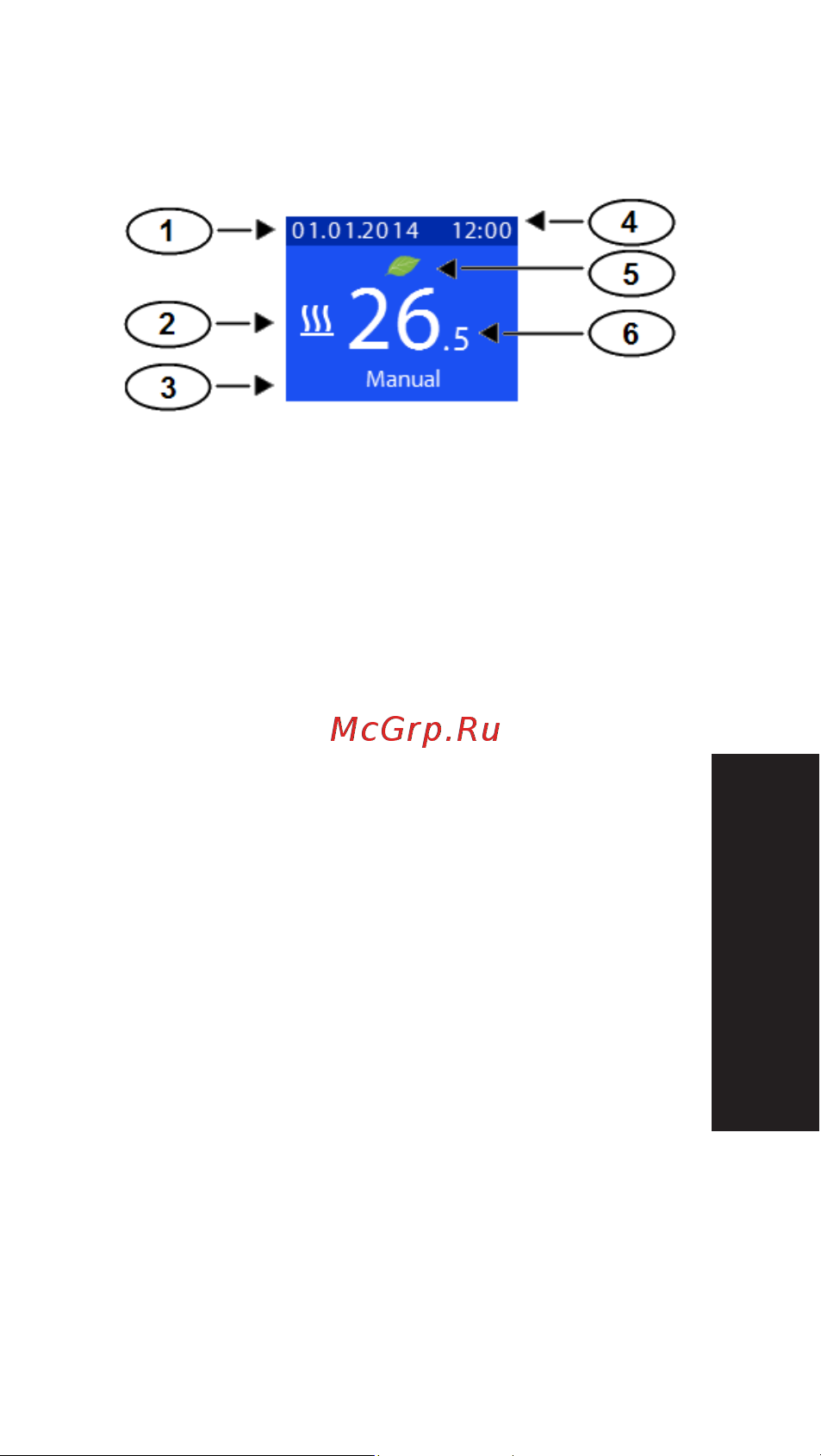

3.1 MAIN DISPLAY

Information shown on the main display are:

1. Date

2. Heating switched

3. Mode (unless LP mode is activated)

4. Time

5. ECO mode indication leaf

6. Set temp or actual temp (Room or oor)

3.1.1 SWITCHING THERMOSTAT OFF/ON

Thermostat and heating can be switched OFF and ON by pressing and holding

center-button for 3 seconds. User is prompted for accepting or cancelling switch

OFF command.

3.1.2 CHILD SAFETY LOCK

Child Safety Lock can only be activated from main display. When the child safety

lock is ON, the settings of the thermostat cannot be changed, nor set temperature

or power regulation value. The child safety lock is locked/unlocked by pressing and

holding both arrow buttons simultaneously for 3 seconds.

3.2 SETUP AND DEFAULT SETTINGS

After connecting the power to the thermostat for the rst time, or after performing a

factory reset, a Start-up Wizard will prompt the following settings:

• Language

• Date in format: YYYY.MM.DD

• Floor type: wooden or concrete (oor sensor needs to be connected)

• Regulation type: Floor, Air or power regulation

• Sensor type: 10kΩ, Thermoreg (default 12kΩ), 15kΩ, 22kΩ, 33kΩ or 47kΩ

(oor sensor needs to be connected)

• Desired temperature of the oor or air or power regulation value

(depending on selected mode)

You can change these settings later on under “Settings” in the main menu. Floor,

regulation and sensor type can be changed under “Controller wizard” under

“Settings” in the main menu.
