User Manual

CROSS LINE

LASER

User Manual

CROSS LINE

LASER

CONDTROL MicroX/MicroX SetCONDTROL MicroX/MicroX Set

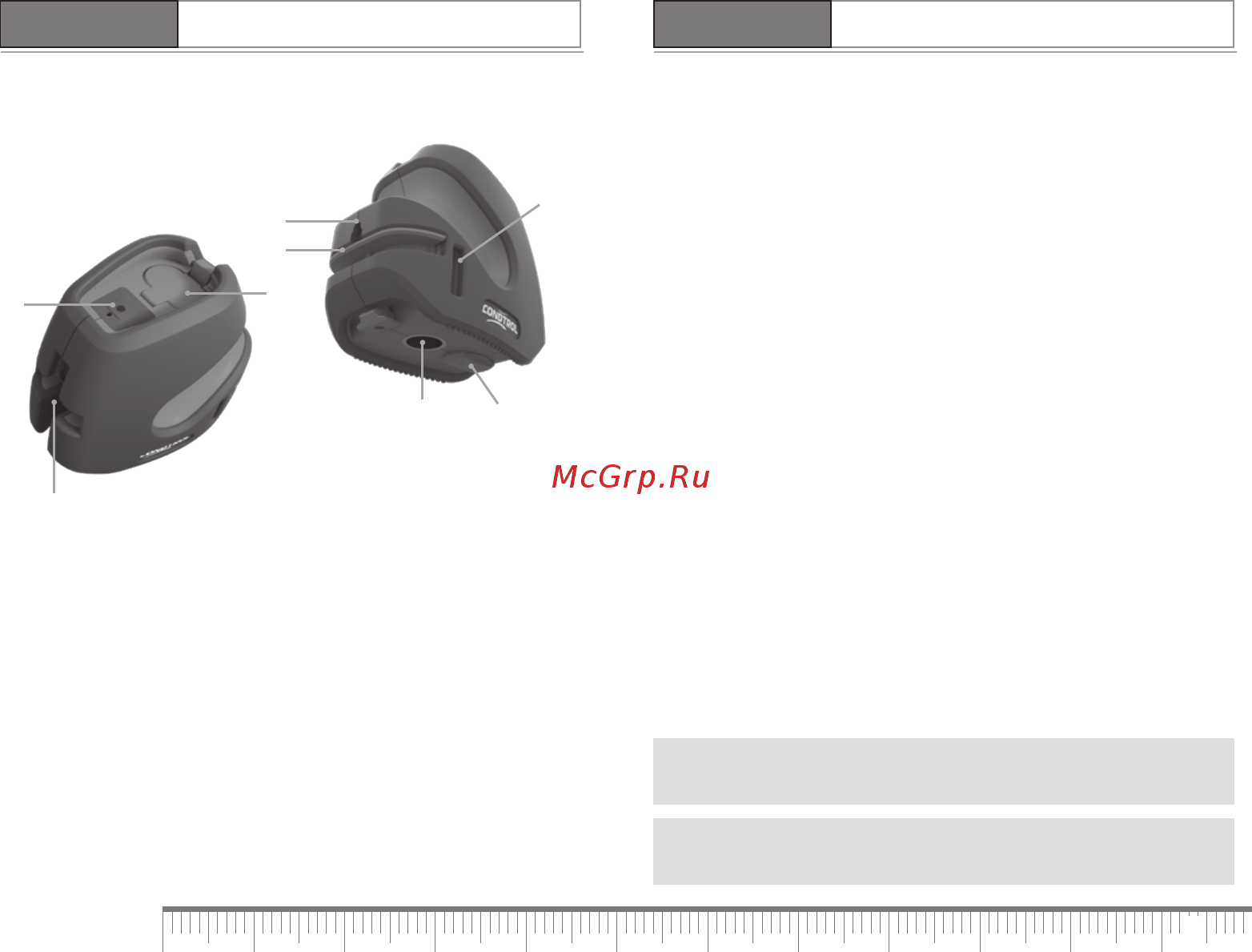

PRODUCT FEATURES

1 Laser lines apertures

2 On/Off switch button

3 Battery cover

4 Tripod mount 5/8”

5 Transport retainer

6 Mount hole

7 Mount clip

8 Belt mount

Horizontal and vertical leveling

Open the battery compartment and insert the batteries according to the

polarity. Don’t confuse the polarities.

The instrument has four plane construction modes:

- the horizontal and vertical line construction mode with the switched-on

self-levelling mode.

- the vertical line construction mode with the switched-on self-levelling

mode.

- the horizontal line construction mode with the switched-on self-levelling

mode.

- the horizontal and vertical line construction mode with the switched-off

self-levelling mode.

Turn the compensating block (5) located on the bottom on the instrument

anticlockwise to a position (the lock is open) and press (2). A vertical laser

line appears.

To change the operating modes press (2).

While working in the switched-on self-levelling mode, when the instrument

is put on a rough surface or on a tripod with a tilt more than 4° laser lines

start to blink, signalizing that the instrument is out of the automatic self-

levelling area. In this case it is necessary to put the instrument on a flat

surface

The horizontal and vertical line construction mode with the switched-off

self-levelling mode is needed for the inclined plane construction.

NOTE! In this mode the horizontal or vertical levelling is not impossible

because laser lines are not centered automatically.

NOTE! After finishing work lock the compensating block (5) by setting

it at the position (the lock is locked up).
