CONDTROL MicroX/MicroX SetCONDTROL MicroX/MicroX Set

TECHNICAL DATA

Parameter Value

Self-leveling range ± 4°

Precision ± 3 mm /10 m

Operating range (depending on room

illumination)

20 m

Laser wavelength 635 nm/ < 1 mW

Power supply / operating time 3x1.5V LR6(AA) / 30 hours

Operating temperature 0°C ... +50°C

Storage temperature -10°C ... +70°C

Dimensions (W x H x D) 110х68х97 mm

Weight (incl. battery) 0,32 kg

OPERATION

Preparing the calibration check

It is possible for you to check the calibration of the laser. To do this, position

the device midway between 2 walls, which must be at least 5 meters apart.

Do this by turning the unit on, thus releasing the transport restraint (cross

laser on). See Section «Horizontal and vertical leveling» about this.

1. Mark point A1 on the wall.

2. Turn the device through 180° and mark point A2. You now have

a horizontal reference between points A1 and A2.

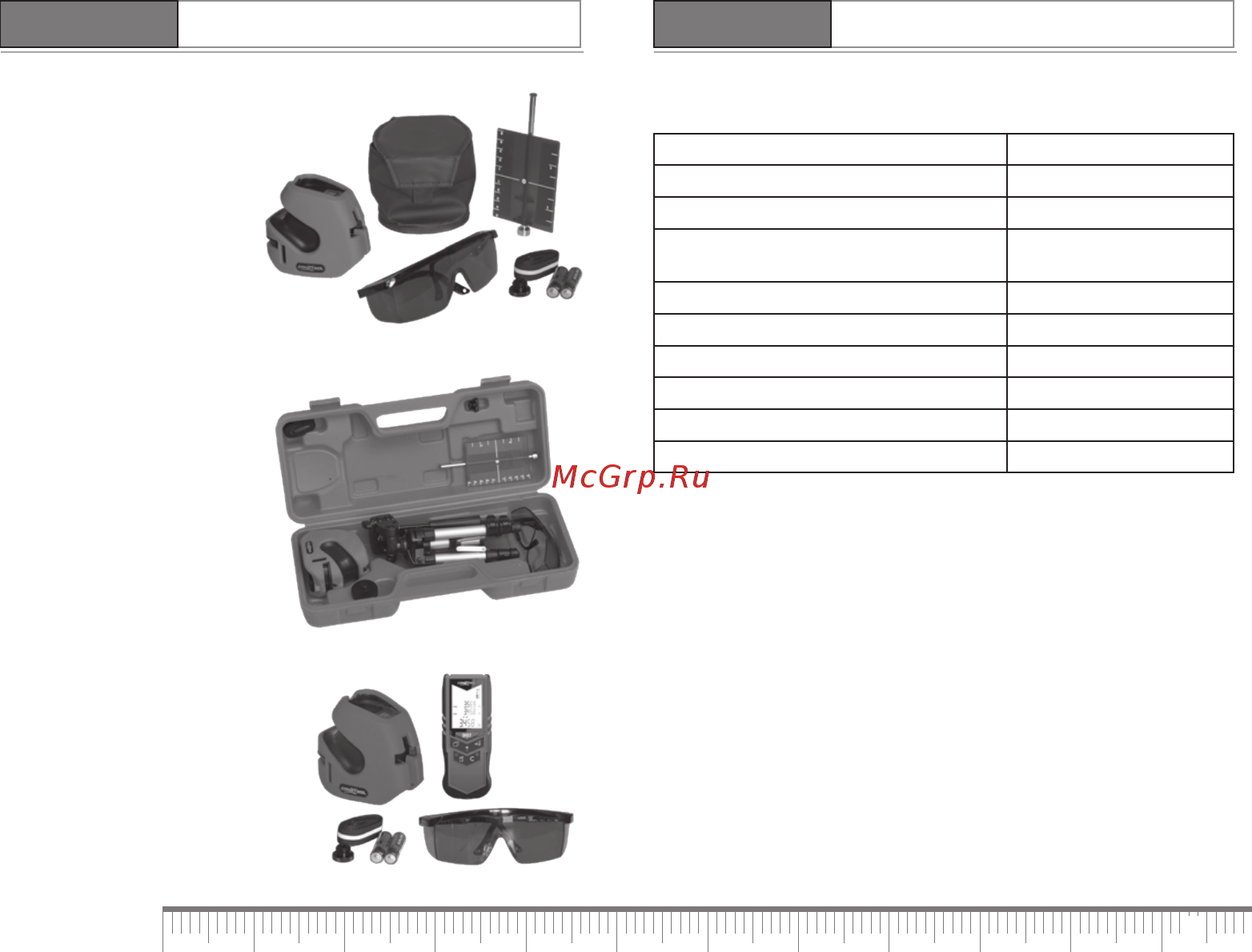

PACKAGE

Microx

Level, batteries, target, laser

viewing glasses, bag, belt,

adapter 5/8’’ to 1/4’’.

Microx Set

Level, tripod 1/4’’, batteries,

target, laser viewing glasses,

belt, magnetic fix, adapter 5/8’’

to 1/4’’, case.

X-Kit

Level, laser distance meter X2

CONDTROL, batteries, laser

viewing glasses, belt, adapter

5/8’’ to 1/4’’.
