INSTALLATION INSTRUCTIONS

1. Remove all packing materials from the oven cavity, (do not remove the waveguide cover), and

the feature sticker from the outside of the door, if there is one. Check the unit for any damage, such

as a misaligned door, damaged door seals around the door or dents inside the oven cavity or on the

door. If there is any damage, please do not operate the oven until it has been checked by a SERVICE

CENTRE APPROVED BY SHARP and repaired, if necessary.

2. Accessories provided

1) Turntable tray

2) Roller stay

3) Operation manual

4) 2 Cook books

3. Place the roller stay in the coupling on the oven floor, then place the turntable on to the roller stay,

ensuring it is located firmly. Refer to OVEN DIAGRAM below. NEVER OPERATE THE OVEN WITHOUT

THE ROLLER STAY AND TURNTABLE.

4. The oven should not be installed in any area where excessive heat and steam are generated, for

example, next to a conventional oven unit. The oven should be installed so as not to block ventilation

openings.

Allow at least 15 cm on the top of the oven for adequate air circulation.

5. Neither the manufacturer nor the distributors can accept any liability for damage to the machine or

personal injury for failure to observe the correct electrical connecting procedure.

The A.C. voltage must be single phase 220V, 50Hz, with a minimum 16A distribution line fuse, or a

minimum 16A distribution circuit breaker.

6. THIS APPLIANCE MUST BE EARTHED.

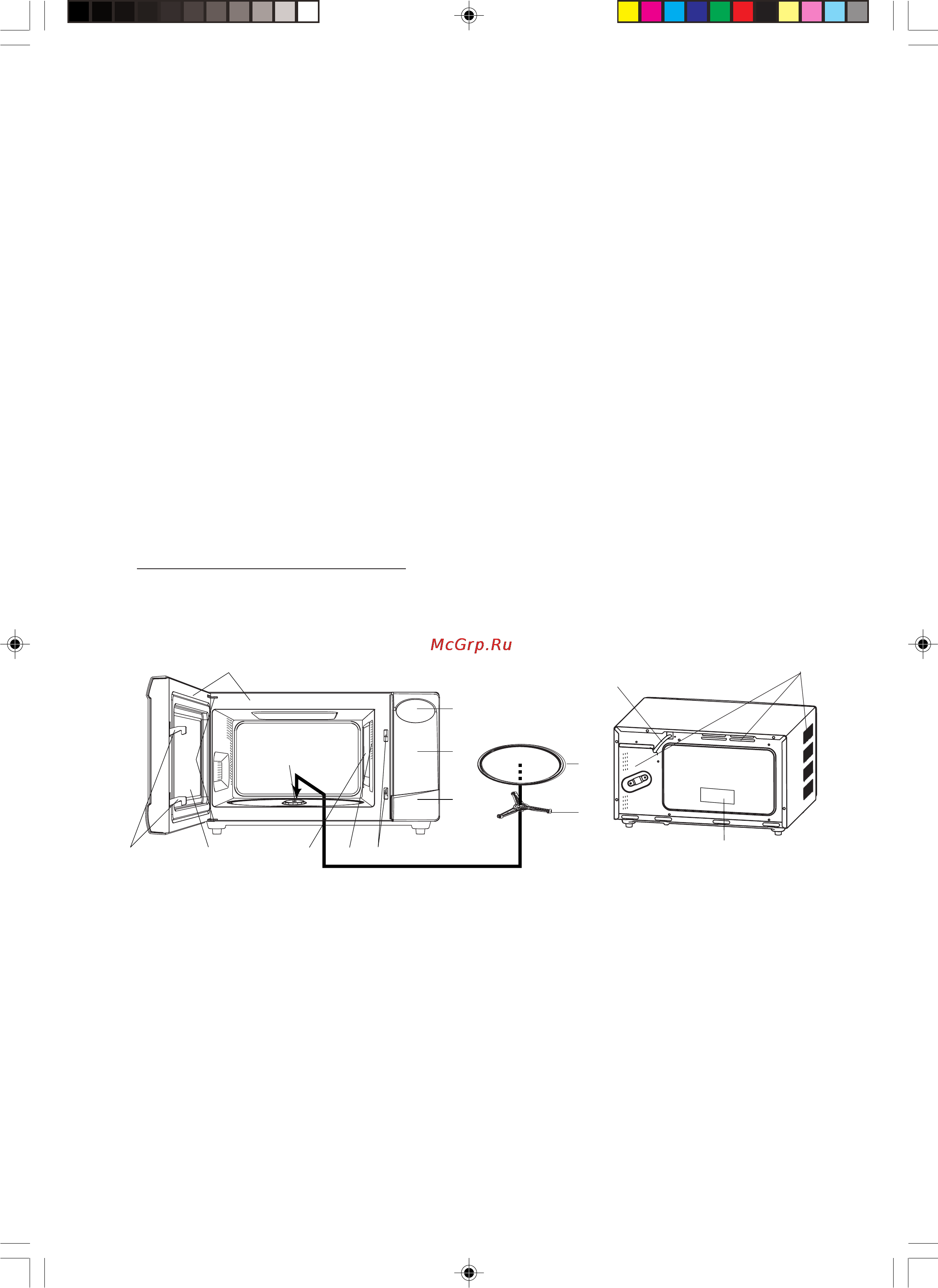

OVEN DIAGRAM

8. Waveguide cover (Do not remove)

9. Touch control panel (See page E-4)

10. Liquid crystal display

11. Ventilation openings

12. Power supply cord

13. Turntable

14. Roller stay

15. Rating label

1. Door open button

2. Oven lamp

3. Door hinges

4. Door safety latches

5. See through door

6. Door seals and sealing surfaces

7. Coupling
