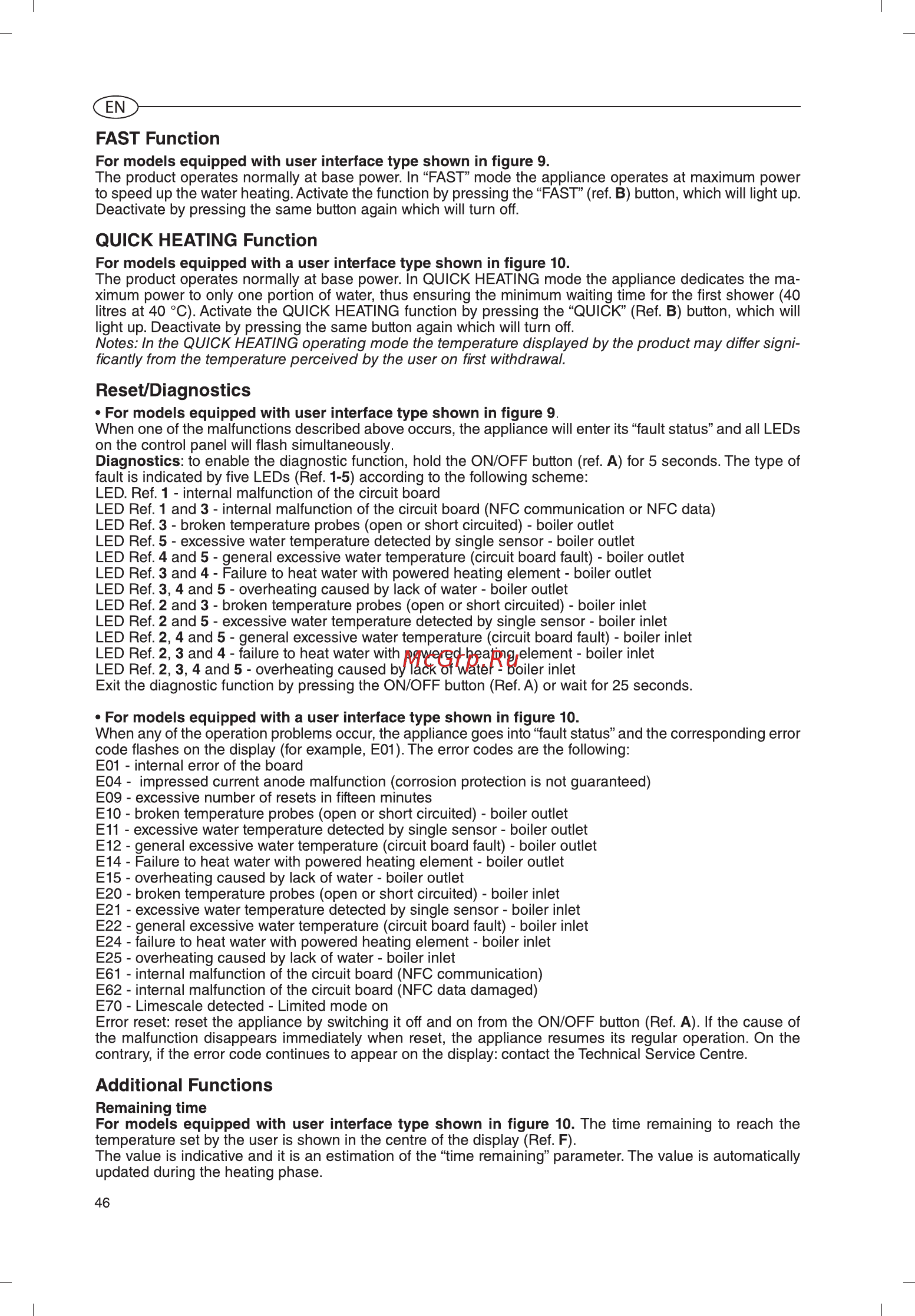

FAST Function For models equipped with user interface type shown in figure 9 The product operates normally at base power In FAST mode the appliance operates at maximum power to speed up the water heating Activate the function by pressing the FAST ref B button which will light up Deactivate by pressing the same button again which will turn off QUICK HEATING Function For models equipped with a user interface type shown in figure 10 The product operates normally at base power In QUICK HEATING mode the appliance dedicates the ma ximum power to only one portion of water thus ensuring the minimum waiting time for the first shower 40 litres at 40 C Activate the QUICK HEATING function by pressing the QUICK Ref B button which will light up Deactivate by pressing the same button again which will turn off Notes In the QUICK HEATING operating mode the temperature displayed by the product may differ signi ficantly from the temperature perceived by the user on first withdrawal Reset Diagnostics For models equipped with user interface type shown in figure 9 When one of the malfunctions described above occurs the appliance will enter its fault status and all LEDs on the control panel will flash simultaneously Diagnostics to enable the diagnostic function hold the ON OFF button ref A for 5 seconds The type of fault is indicated by five LEDs Ref 1 5 according to the following scheme LED Ref 1 internal malfunction of the circuit board LED Ref 1 and 3 internal malfunction of the circuit board NFC communication or NFC data LED Ref 3 broken temperature probes open or short circuited boiler outlet LED Ref 5 excessive water temperature detected by single sensor boiler outlet LED Ref 4 and 5 general excessive water temperature circuit board fault boiler outlet LED Ref 3 and 4 Failure to heat water with powered heating element boiler outlet LED Ref 3 4 and 5 overheating caused by lack of water boiler outlet LED Ref 2 and 3 broken temperature probes open or short circuited boiler inlet LED Ref 2 and 5 excessive water temperature detected by single sensor boiler inlet LED Ref 2 4 and 5 general excessive water temperature circuit board fault boiler inlet LED Ref 2 3 and 4 failure to heat water with powered heating element boiler inlet LED Ref 2 3 4 and 5 overheating caused by lack of water boiler inlet Exit the diagnostic function by pressing the ON OFF button Ref A or wait for 25 seconds For models equipped with a user interface type shown in figure 10 When any of the operation problems occur the appliance goes into fault status and the corresponding error code flashes on the display for example E01 The error codes are the following E01 internal error of the board E04 impressed current anode malfunction corrosion protection is not guaranteed E09 excessive number of resets in fifteen minutes E10 broken temperature probes open or short circuited boiler outlet E11 excessive water temperature detected by single sensor boiler outlet E12 general excessive water temperature circuit board fault boiler outlet E14 Failure to heat water with powered heating element boiler outlet E15 overheating caused by lack of water boiler outlet E20 broken temperature probes open or short circuited boiler inlet E21 excessive water temperature detected by single sensor boiler inlet E22 general excessive water temperature circuit board fault boiler inlet E24 failure to heat water with powered heating element boiler inlet E25 overheating caused by lack of water boiler inlet E61 internal malfunction of the circuit board NFC communication E62 internal malfunction of the circuit board NFC data damaged E70 Limescale detected Limited mode on Error reset reset the appliance by switching it off and on from the ON OFF button Ref A If the cause of the malfunction disappears immediately when reset the appliance resumes its regular operation On the contrary if the error code continues to appear on the display contact the Technical Service Centre Additional Functions Remaining time For models equipped with user interface type shown in figure 10 The time remaining to reach the temperature set by the user is shown in the centre of the display Ref F The value is indicative and it is an estimation of the time remaining parameter The value is automatically updated during the heating phase 46
