INSTALLATION INSTRUCTIONS

1. Remove all packing materials from the oven cavity . Check the unit for any damage, such as a misaligned

door, damaged gaskets around the door or dents inside the oven cavity or on the door. If there is any damage,

please do not operate the oven until it has been checked by a SERVICE CENTRE APPROVED BY SHARP

and repaired, if necessary.

2. Accessories provided

1) Turntable tray

2) Roller stay

3) Operation manual and cooking guide

4) Cook book (Russian)

3. Locate the roller stay in the centre of the oven, then fit the turntable on the roller stay. Make sure the turntable

and roller stay are centrally located and locked together. NEVER OPERATE THE OVEN WITHOUT THE

ROLLER STAY AND TURNTABLE.

4. The oven should not be installed in any area where excessive heat and steam are generated, for example,

next to a conventional oven unit. The oven should be installed so as not to block ventilation openings.

Allow at least 15 cm on the top of the oven for free air space.

5. Neither the manufacturer nor the distributors can accept any liability for damage to the machine or personal

injury for failure to observe the correct electrical connecting procedure.

The A.C. voltage must be single phase 220V, 50Hz.

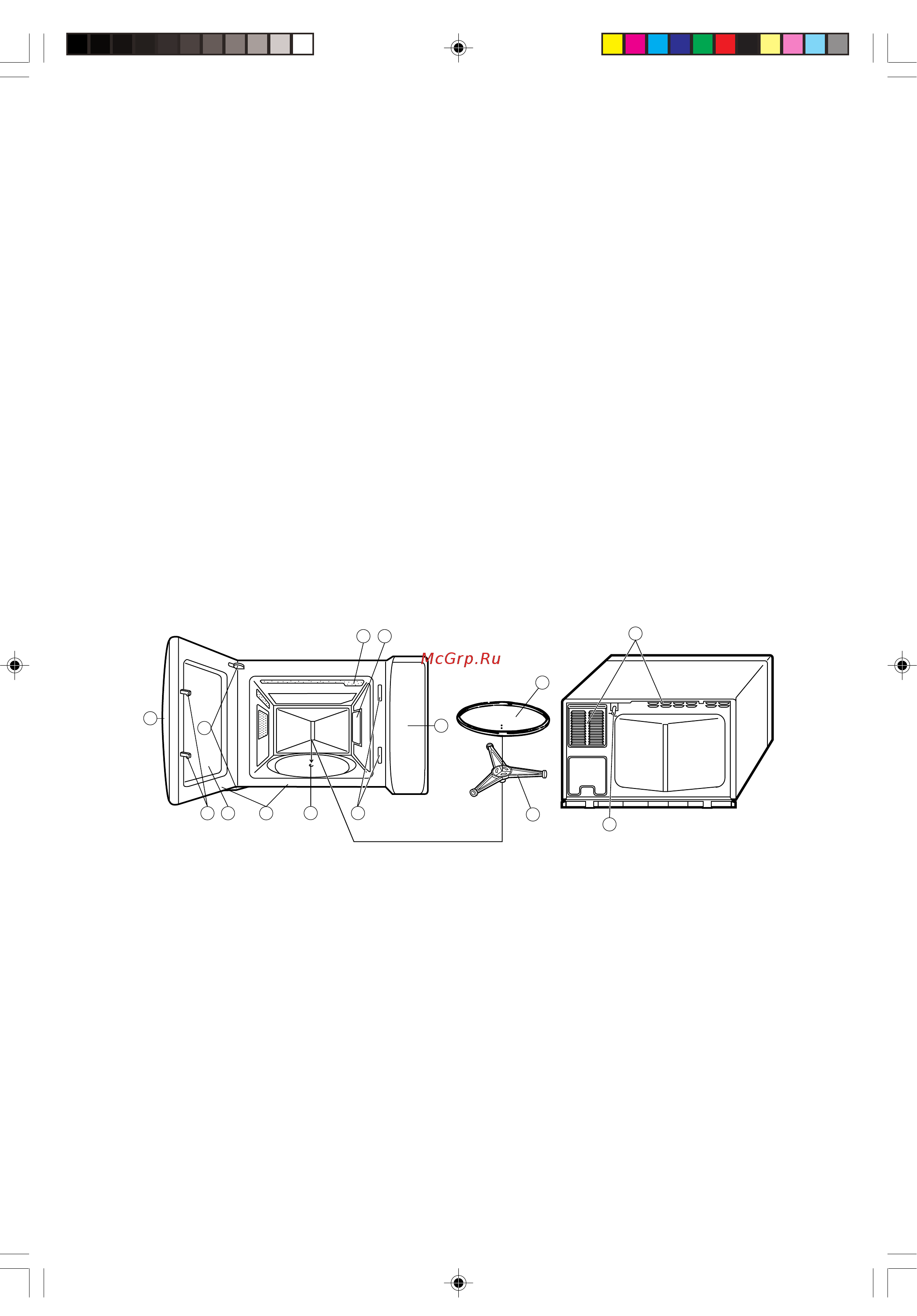

OVEN DIAGRAM

8. Control panel (See page E-4)

9. Waveguide cover

10. Power supply cord

11. Ventilation openings

12. Turntable

13. Roller stay

1. Door handle

2. Oven lamp

3. Door hinges

4. Door safety latches

5. See through door

6. Door seals and sealing surfaces

7. Coupling
