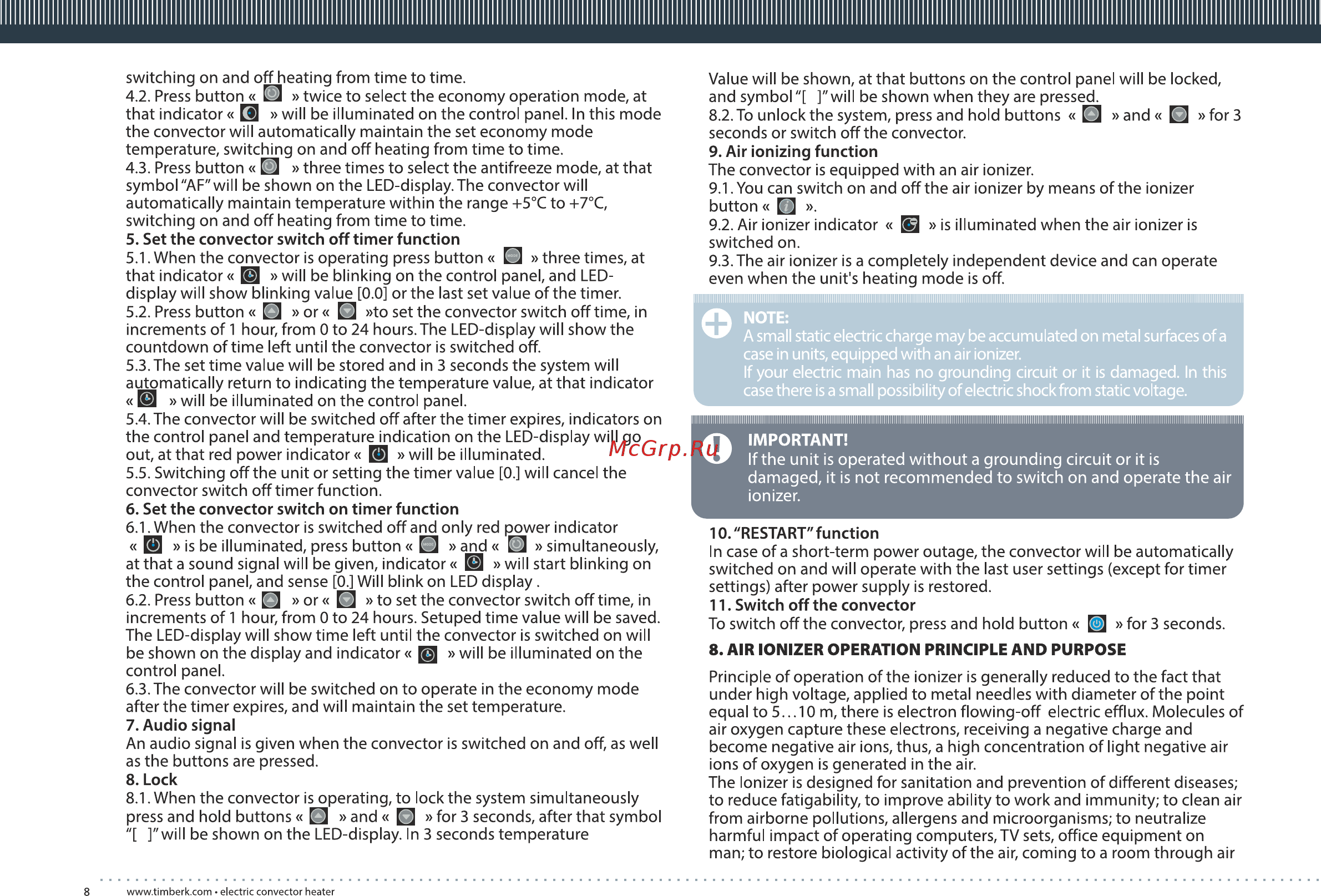

switching on and off heating from time to time 4 2 Press button twice to select the economy operation mode at that indicator H will be illuminated on the control panel In this mode the convector will automatically maintain the set economy mode temperature switching on and off heating from time to time 4 3 Press button three times to select the antifreeze mode at that symbol AF will be shown on the LED display The convector will automatically maintain temperature within the range 5 C to 7 C switching on and off heating from time to time 5 Set the convector switch off timer function 5 1 When the convector is operating press button three times at that indicator will be blinking on the control panel and LEDdisplay will show blinking value 0 0 or the last set value of the timer 5 2 Press button or to set the convector switch off time in increments of 1 hour from 0 to 24 hours The LED display will show the countdown of time left until the convector is switched off 5 3 The set time value will be stored and in 3 seconds the system will automatically return to indicating the temperature value at that indicator will be illuminated on the control panel 5 4 The convector will be switched off after the timer expires indicators on the control panel and temperature indication on the LED display will go out at that red power indicator SI will be illuminated 5 5 Switching off the unit or setting the timer value 0 will cancel the convector switch off timer function 6 Set the convector switch on timer function 6 1 When the convector is switched off and only red power indicator 0 is be illuminated press button and simultaneously at that a sound signal will be given indicator EO will start blinking on the control panel and sense 0 Will blink on LED display 6 2 Press button or to set the convector switch off time in increments of 1 hour from 0 to 24 hours Setuped time value will be saved The LED display will show time left until the convector is switched on will be shown on the display and indicator will be illuminated on the control panel 6 3 The convector will be switched on to operate in the economy mode after the timer expires and will maintain the set temperature 7 Audio signal An audio signal is given when the convector is switched on and off as well as the buttons are pressed 8 Lock 8 1 When the convector is operating to lock the system simultaneously press and hold buttons and for 3 seconds after that symbol will be shown on the LED display In 3 seconds temperature 8 www timberk com electric convector heater Value will be shown at that buttons on the control panel will be locked and symbol will be shown when they are pressed 8 2 To unlock the system press and hold buttons and for3 seconds or switch off the convector 9 Air ionizing function The convector is equipped with an air ionizer 9 1 You can switch on and off the air ionizer by means of the ionizer button 9 2 Air ionizer indicator E is illuminated when the air ionizer is switched on 9 3 The air ionizer is a completely independent device and can operate even when the unit s heating mode is off NOTE A small static electric charge may be accumulated on metal surfaces of a case in units equipped with an air ionizer If your electric main has no grounding circuit or it is damaged In this case there is a small possibility of electric shock from static voltage O IMPORTANT I If the unit is operated without a grounding circuit or it is damaged it is not recommended to switch on and operate the air ionizer O 10 RESTART function In case of a short term power outage the convector will be automatically switched on and will operate with the last user settings except for timer settings after power supply is restored 11 Switch off the convector To switch off the convector press and hold button for 3 seconds 8 AIR IONIZER OPERATION PRINCIPLE AND PURPOSE Principle of operation of the ionizer is generally reduced to the fact that under high voltage applied to metal needles with diameter of the point equal to 5 10 m there is electron flowing off electric efflux Molecules of air oxygen capture these electrons receiving a negative charge and become negative air ions thus a high concentration of light negative air ions of oxygen is generated in the air The Ionizer is designed for sanitation and prevention of different diseases to reduce fatigability to improve ability to work and immunity to clean air from airborne pollutions allergens and microorganisms to neutralize harmful impact of operating computers TV sets office equipment on man to restore biological activity of the air coming to a room through air
