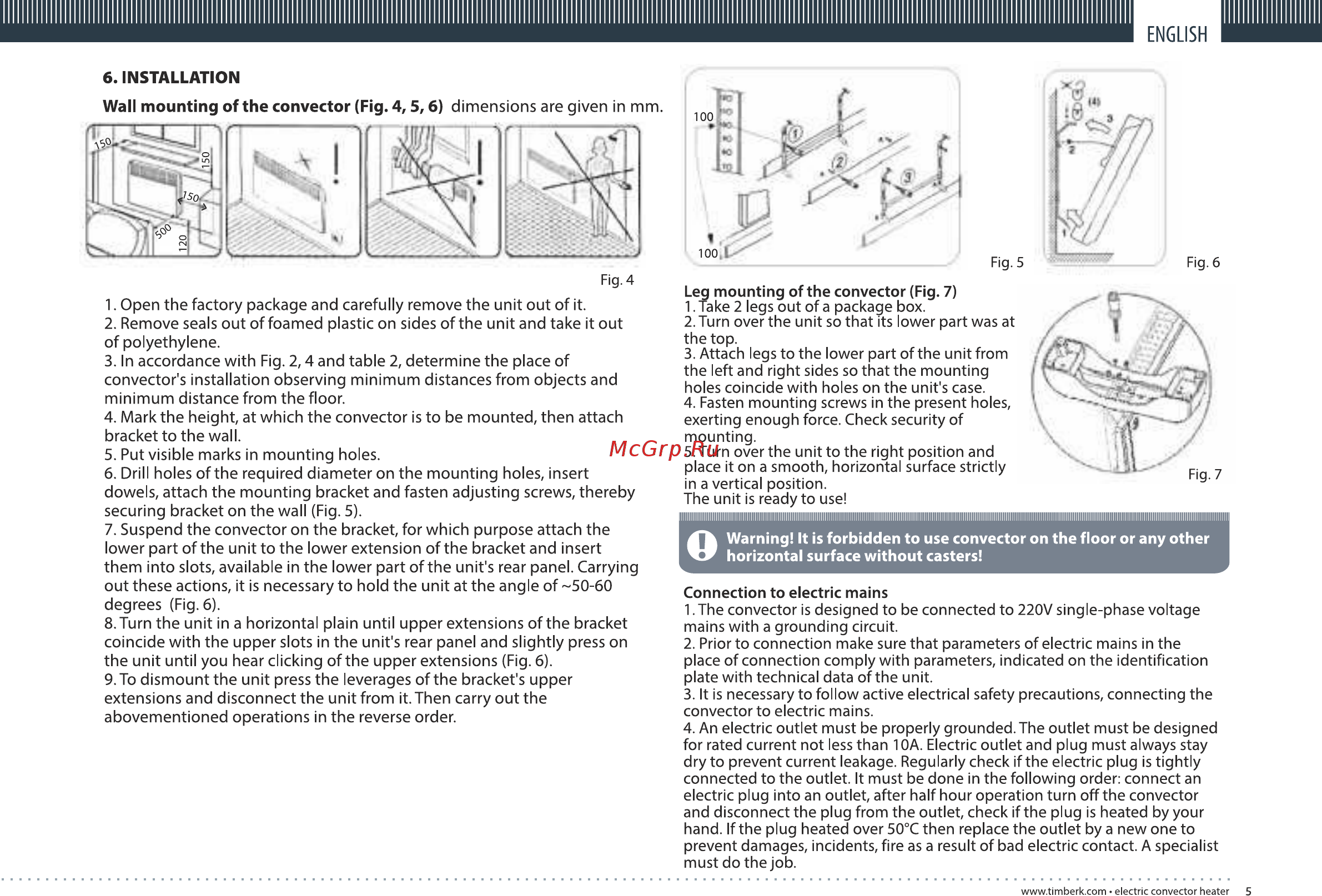

ENGLISH 6 INSTALLATION Wall mounting of the convector Fig 4 5 6 dimensions are given in mm Fig 6 Fig 4 1 Open the factory package and carefully remove the unit out of it 2 Remove seals out of foamed plastic on sides of the unit and take it out of polyethylene 3 In accordance with Fig 2 4 and table 2 determine the place of convector s installation observing minimum distances from objects and minimum distance from the floor 4 Mark the height at which the convector is to be mounted then attach bracket to the wall 5 Put visible marks in mounting holes 6 Drill holes of the required diameter on the mounting holes insert dowels attach the mounting bracket and fasten adjusting screws thereby securing bracket on the wall Fig 5 7 Suspend the convector on the bracket for which purpose attach the lower part of the unit to the lower extension of the bracket and insert them into slots available in the lower part of the unit s rear panel Carrying out these actions it is necessary to hold the unit at the angle of 50 60 degrees Fig 6 8 Turn the unit in a horizontal plain until upper extensions of the bracket coincide with the upper slots in the unit s rear panel and slightly press on the unit until you hear clicking of the upper extensions Fig 6 9 To dismount the unit press the leverages of the bracket s upper extensions and disconnect the unit from it Then carry out the abovementioned operations in the reverse order Leg mounting of the convector Fig 7 1 Take 2 legs out of a package box 2 Turn over the unit so that its lower part was at the top 3 Attach legs to the lower part of the unit from the left and right sides so that the mounting holes coincide with holes on the unit s case 4 Fasten mounting screws in the present holes exerting enough force Check security of mounting 5 Turn over the unit to the right position and place it on a smooth horizontal surface strictly in a vertical position The unit is ready to use Illllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II llllllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II llllllllllllllllllllll lllllll Warning It is forbidden to use convector on the floor or any other horizontal surface without casters Connection to electric mains l The convector is designed to be connected to 220Vsingle phase voltage mains with a grounding circuit 2 Prior to connection make sure that parameters of electric mains in the place of connection comply with parameters indicated on the identification plate with technical data of the unit 3 It is necessary to follow active electrical safety precautions connecting the convector to electric mains 4 An electric outlet must be properly grounded The outlet must be designed for rated current not less than 10A Electric outlet and plug must always stay dry to prevent current leakage Regularly check if the electric plug is tightly connected to the outlet It must be done in the following order connect an electric plug into an outlet after half hour operation turn off the convector and disconnect the plug from the outlet check if the plug is heated by your hand If the plug heated over 50 C then replace the outlet by a new one to prevent damages incidents fire as a result of bad electric contact A specialist must do the job www timberk com electric convector heater 5
