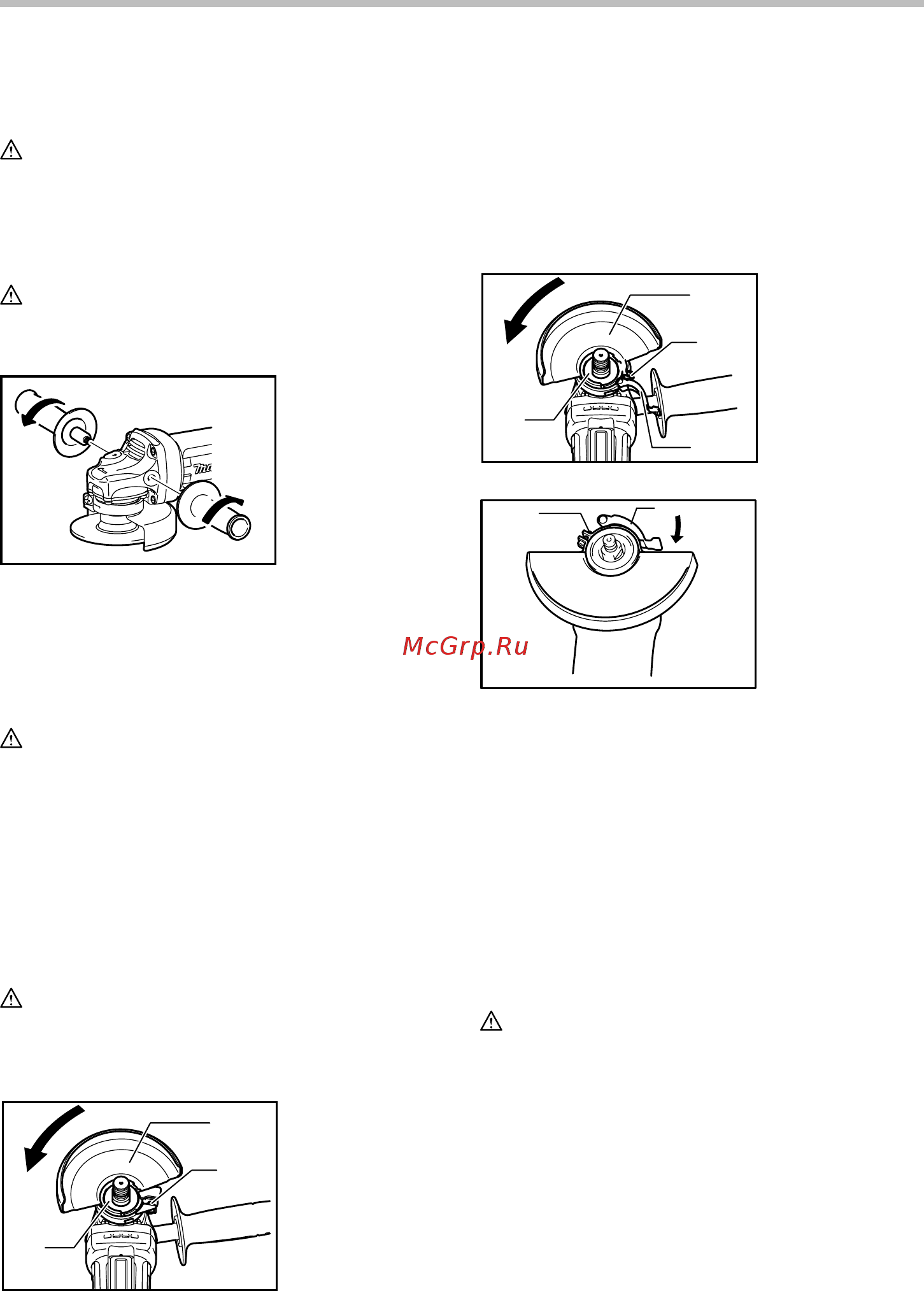

8
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the
tool.
Installing side grip (handle)
CAUTION:
• Always be sure that the side grip is installed
securely before operation.
010807
Screw the side grip securely on the position of the tool
as shown in the figure.
Installing or removing wheel guard (For
depressed center wheel , multi disc / abrasive
cut-off wheel , diamond wheel)
WARNING:
• When using a depressed center grinding
wheel/Multi-disc, flex wheel, wire wheel brush, cut-
off wheel or diamond wheel, the wheel guard must
be fitted on the tool so that the closed side of the
guard always points toward the operator.
• When using an abrasive cut-off / diamond wheel,
be sure to use only the special wheel guard
designed for use with cut-off wheels. (In European
countries, when using a diamond wheel, the
ordinary guard can be used.)
CAUTION:
• Use a wheel guard with a specific shape according
to the application.
For tool with locking screw type wheel guard
1
2
3
010692
Mount the wheel guard with the protrusion on the wheel
guard band aligned with the notch on the bearing box.
Then rotate the wheel guard to such an angle that it can
protect the operator according to work. Be sure to
tighten the screw securely.
To remove wheel guard, follow the installation
procedure in reverse.
For tool with clamp lever type wheel guard
1
2
3
4
010697
1
2
009431
Loosen the lever on the wheel guard after loosening the
screw. Mount the wheel guard with the protrusion on the
wheel guard band aligned with the notch on the bearing
box. Then rotate the wheel guard around to the position
shown in the figure. Tighten the lever to fasten the
wheel guard. If the lever is too tight or too loose to
fasten the wheel guard, loosen or tighten the screw to
adjust the tightening of the wheel guard band.
To remove wheel guard, follow the installation
procedure in reverse.

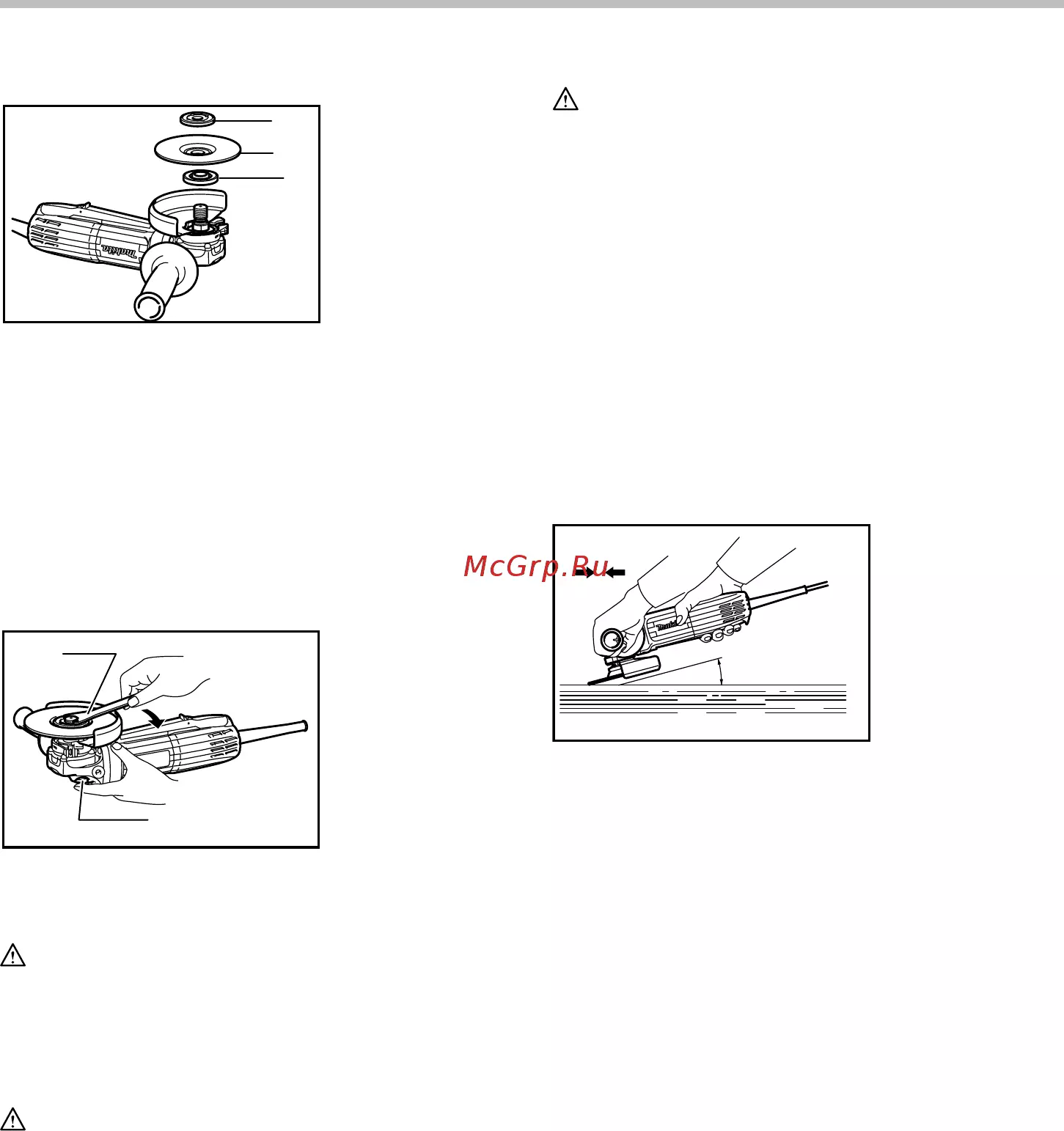

Installing or removing depressed center
grinding wheel/Multi-disc
WARNING:
• Always use supplied guard when depressed
center grinding wheel/Multi-disc is on tool. Wheel
can shatter during use and guard helps to reduce
chances of personal injury.
1. Screw
2. Lever
1. Wheel guard
2. Screw
3. Bearing box
4. Lever
1. Wheel guard
2. Screw
3. Bearing box
