The plate pack
The chevron corrugation of the plates provides a passage between
the plates and supports each plate against the adjacent one. It also
enhances the turbulence, resulting in efficient heat transfer.
Different chevron angles are available to reach the optimal high heat
transfer at a given pressure drop. A unique distribution area provides
an efficient flow over the plate surface. The Alfa Laval hanging system
enables easy handling of the plates in the frame. Furthermore the
corner guiding provides a strong plate pack. The plates are reversible
and have parallel flow, which means that only one type of gasket
is needed.
Plate Types
Front6 Gemini, Front8 Gemini and Front10 Gemini.
Other plates of the FrontLine™ series are the Front and WideStream®
plates.
The gasket
The FrontLine™ plates are supplied with glue-free Clip-On gaskets,
which are easy to replace even with the plates still hanging in the frame.
The material of gaskets are selected for safe use in connection with
pharmaceutical and food products.
Pressure plate
Frame plate
A
B
A
B
A
B
900-040

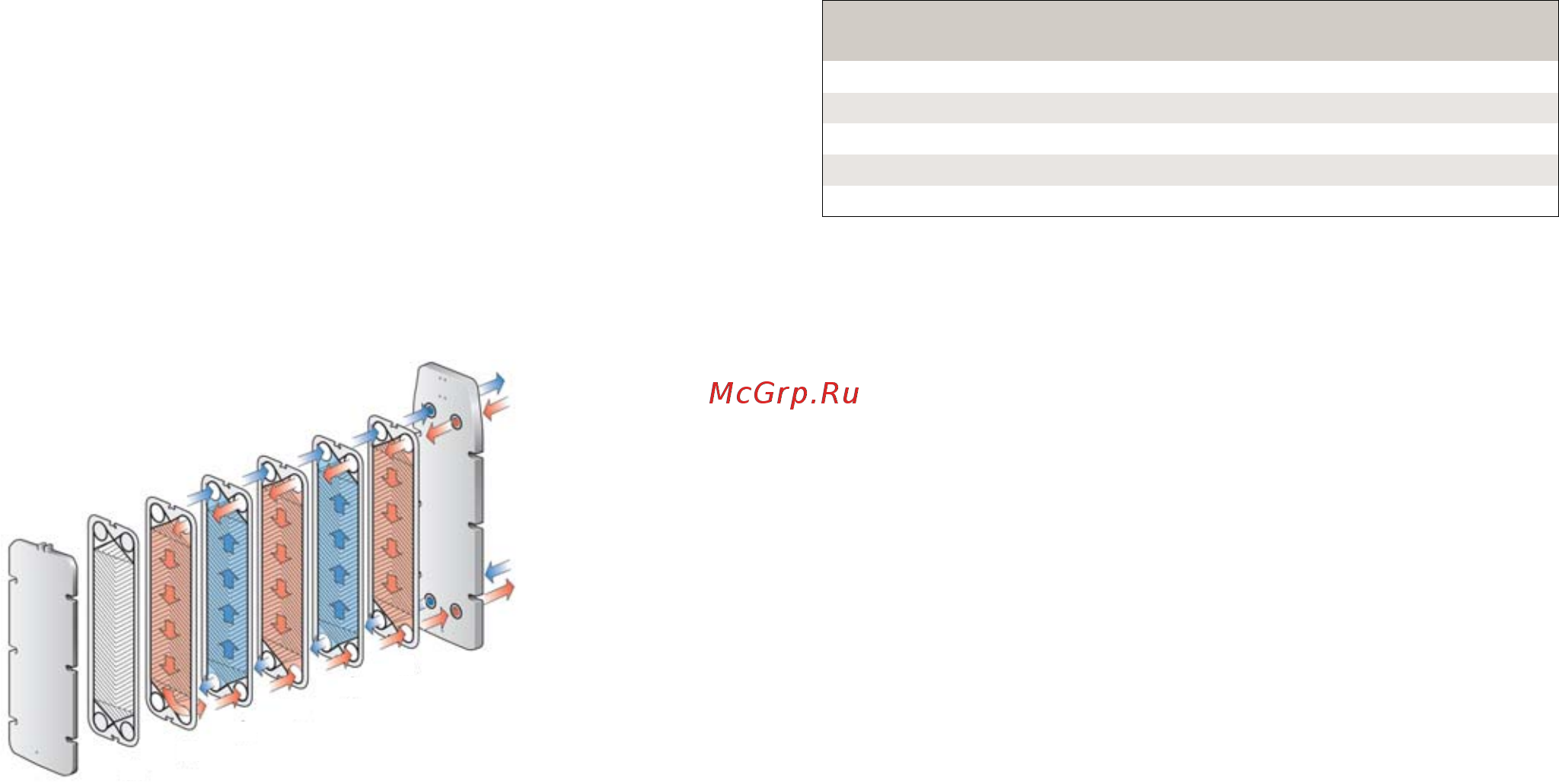

Flow principle of a plate heat exchanger
Standard Mater
ials
Plates
Stainless steel AISI 316
Thickness for all Front Gemini plates 2 x 0.4 mm
Gaskets
High Temperature Nitrile-FDA or EPDM-FDA. Clip-On design.
Frame
Frame and pressure plate in solid or cladded stainless steel. All wetted
parts in acid proof stainless steel. Other surfaces in various grades of
stainless steel. Movable nuts on tightening bolts in chromium plated
brass.
Technical Data
Mechanical design pressure (g) / Temperature
FRM / RM – 10 bar / 150 °C
Complies with European Pressure Equipment Directive (PED), may
carry the CE mark depending on the design conditions.
Connections
DIN, SMS, Tri-CLAMP, B.S./RJT and IDF/ISO male parts. Others on
request
Plates
Plates Front 6 Front 8 Front 10
Gemini Gemini Gemini
Plate pattern
Chevron Chevron Chevron
Surface m
2
0.18 0.38 0.62
Overall dim., mm 1,000 x 250 1,250 x 375 1,500 x 500
Port dim., mm
55 80 105
Thickness, mm
2x0.4 2x0.4 2x0.4
Optional
A. Thermometer pocket and nib with ventilation cock
1)
B. Thermometer pocket
1)
C. Connection for 51 mm pressure transmitter
1)
D. Protection sheet
E. Bolt protections of stainless steel
F. 3 - A f i n is h
G. Connections in titanium or SMO (frame and pressure plate)
H. Extended legs
I. Extra standard wrench or pneumatic tightening tool
J. Test certificates and material certificate
K. Testing by authorized inspection companies
All options are not available on all models.
1)
At through pass corners in connection plates.
