Alfa Laval Front 10 [3/4] Dimensions mm
![Alfa Laval Front 10 [3/4] Dimensions mm](/views2/1407436/page3/bg3.png)
Inspection and external indication guarantee
- Sheets have to be split open regularly in order to inspect for cracks
not indicated externally.
- Media will not be mixed if a crack appears in one of the sheets.
- External indications of leakage have to be monitored by regular
inspections.
- Cracked plates must be replaced as soon as possible:
- Product between sheets possible source for re-infection and
corrosion.
- Second sheet may also be cracked or corroded.
- Humidity and dust may be sucked in between the sheets:
- Risk of contamination.
- Difficult to split sheets.
Single plate sheet in port means use of standard gasket.
Gap open to atmosphere and not covered by any gasket
Double wall concept
Although the Gemini plates are designed to give an external indication
in case of crack in one of the sheets, it may not be the case in some
applications. External indications depends on product composition
and viscosity, temperature and pressure. If a plate is indicating a crack
it must be replaced as soon as possible.
Reduced heat transfer coefficient due to air gap will result in more
plates needed.
In order to limit the total number of plates the heat recovery may be
reduced.

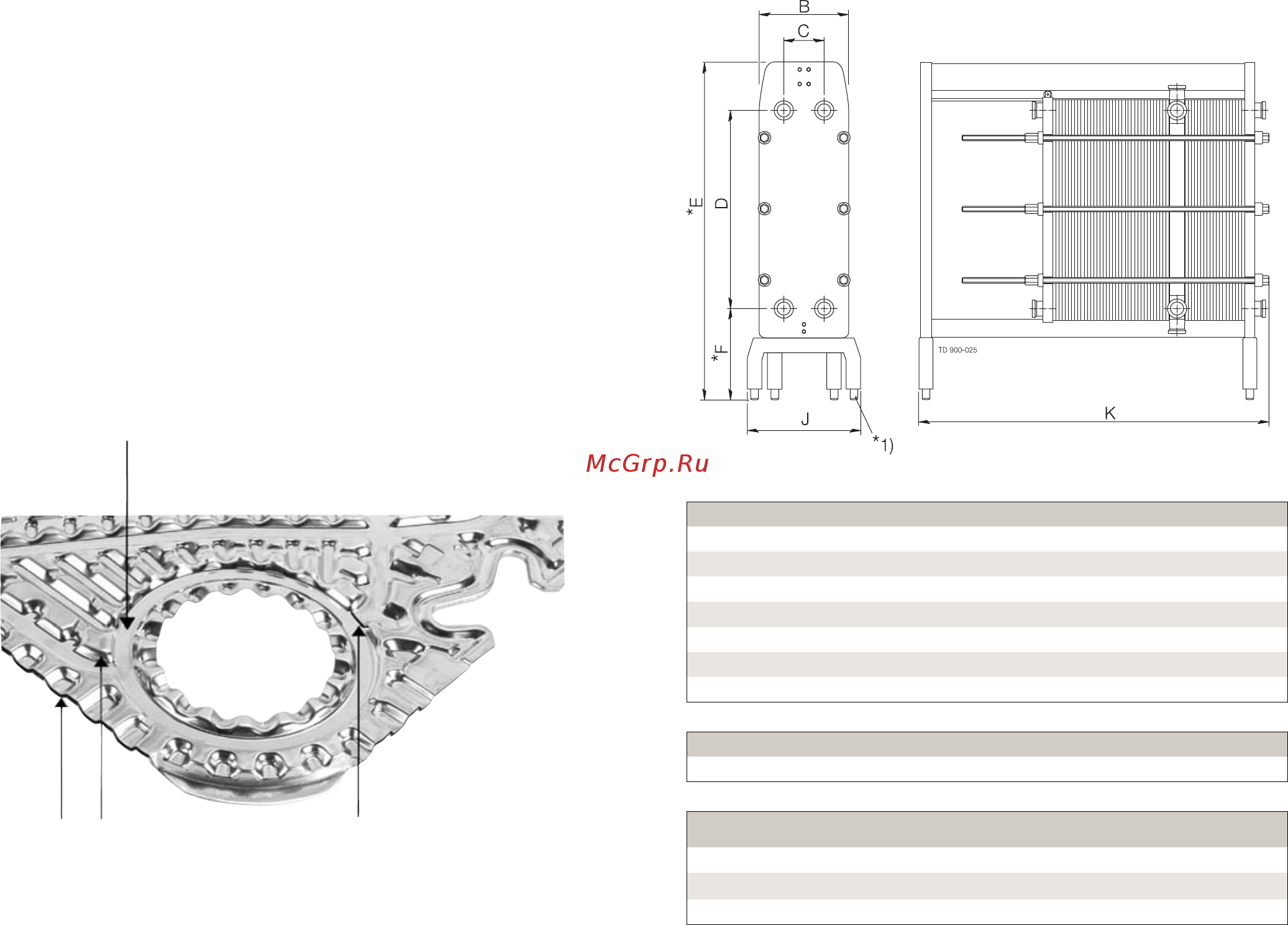

Dimensions (mm)
Adjustable feet ± 50 mm
Measurements Front 6 Front 8 Front 10
B 370 500 670
C 129 220 324
D 859
1,095 1,324
E
1,420* 1,850* 2,167*
F 400* 500* 500*
J 520 670 850
K
1,000-2,500 1,400-3,800 1,400-5,000
Connection Front 6 Front 8 Front 10
Diameter mm 51 76 76/101.6
Capacity l/h
Front 6 Front 8 Front 10
Pasteurizatio
n
8,000 20,000 50,000
Heating/Cooling
15,000 35,000 65,000
Water
30,000 75,000 130,000
Overall leng
th varies depending on numbers of plates and connecting
plates. Reco
mmended free space around the unit is 1.5 meter at sides
and frame hea
dend.
