Airwell K 18 OG [12/40] Electrical connection

CHILLED WATER CASSETTE

6.1 ELECTRICAL CONNECTION

6 ELECTRICAL CONNECTION

Take care !

Before starting any electrical connection, check

that the electrical supply corresponds to the

specification indicated on the unit’s maker’s plate.

Each cassette in equipped with a terminal block

located inside the cassette cabinet.

Connection to the electrical network must comply with

current electrical standards.

The unit must be earthed.

The manufacturer and their representatives decline all

responsibility for any accidents caused by inadequate or

non-existent earthing of the installation.

All the cassettes are intended to operate on a normal voltage

of 230 V ± 10% / Single phase / 50 Hz + Earth.

The wiring diagram affixed to the unit illustrates the

connections to be made.

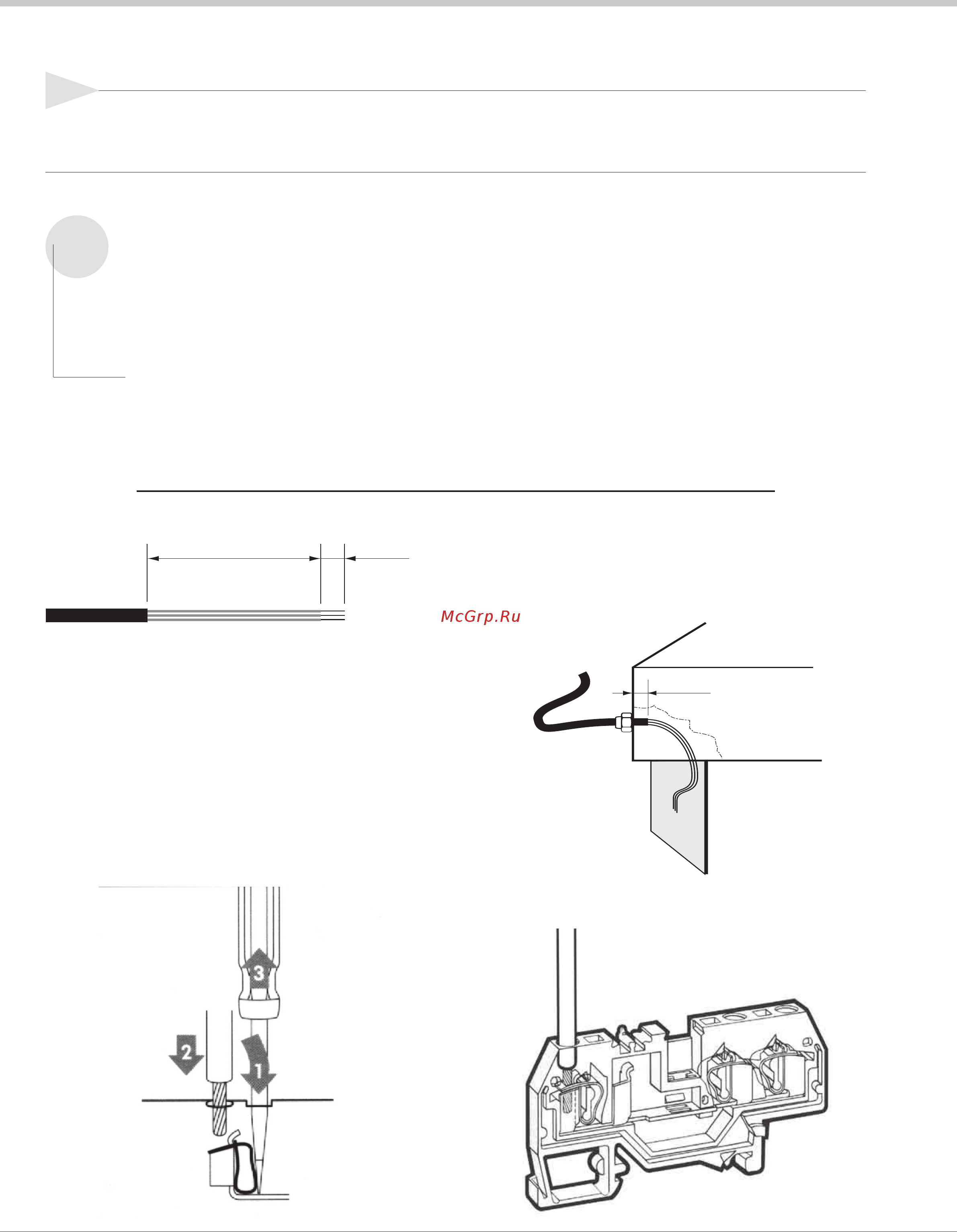

300 mm 7 mm

25 mm

Rigid 3 x 1 or 1.5 power supply cable preparation Prepare and put in place the conductor wires ensuring

provision for movement of the electrical box, without

straining the existing wiring.

Proceed in the same way for the connection to the wall

mounted controls.

All the connections are made to screwless terminals.

To thread in the conductor wires, use a 3.5 x 0.5 mm

screwdriver blade as illustrated below.

The conductor wires should be stripped bare by 7 mm.
