CHILLED WATER CASSETTE
2.1 PACKAGE CONTENTS
1 Cassette
2 Angle attachment fittings
1 Fastener bag: Angle brackets + screws
Rubber shock absorbing pads
Treated air distribution frame screws
Fascia clips

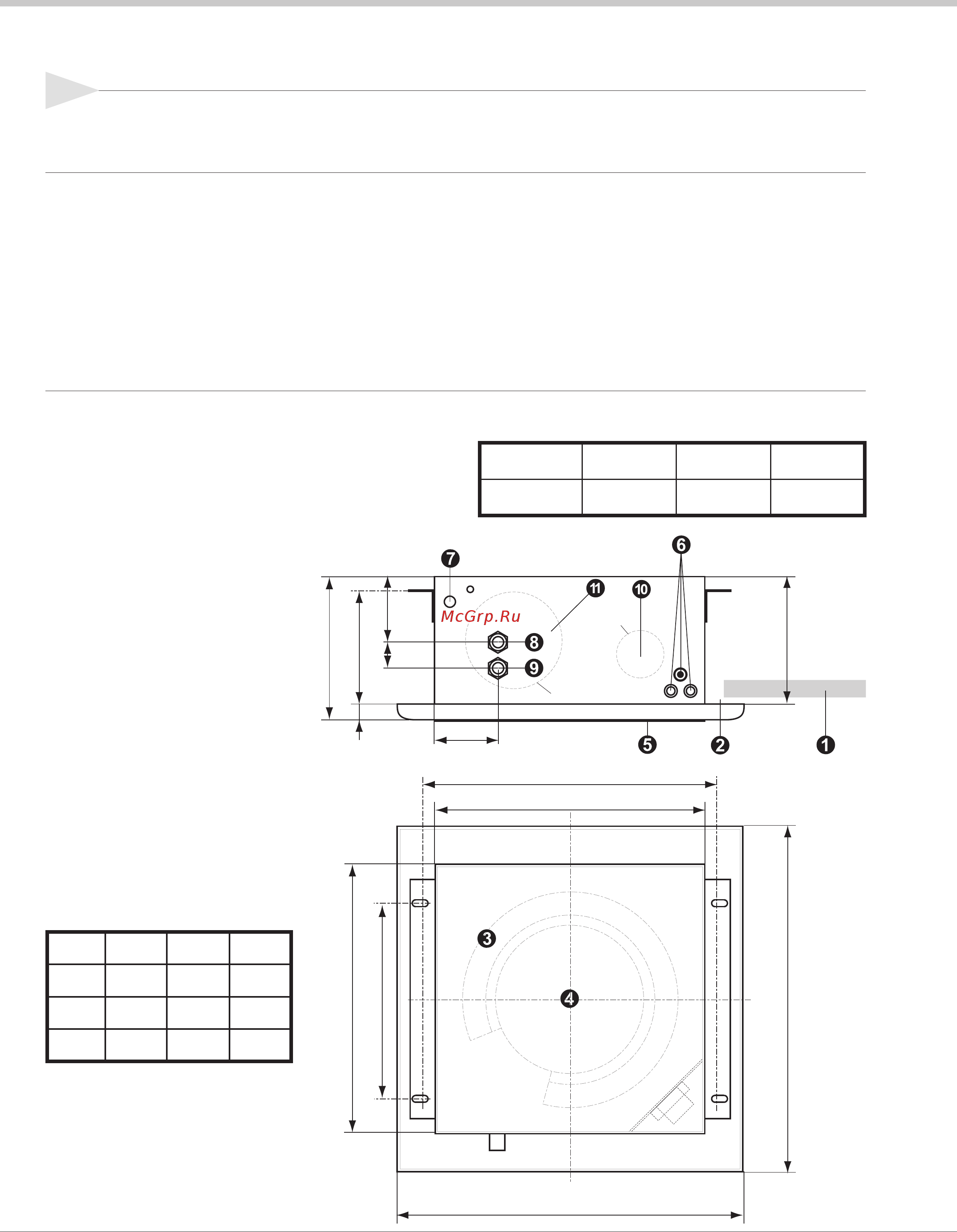

2.2 2 PIPES CASSETTE DIMENSIONS 2.3 WEIGHTS
2 DESCRIPTION
1 Documentation bag
1 Fascia assembly
Dimensions in mm
1 Suspended ceiling
2 T bar (suspended ceiling)
3 Evaporator
4 Fan
5 Intake grille
6 Electrical connection
7 Condensate evacuation Ø
15
8 Water outlet
Mod 9 - 12: G1/2"
Mod 18: G3/4"
9 Water intake
Mod 9 - 12: G1/2"
Mod 18: G3/4"
10 Port for fresh air succion (ready
to punch out)
11 Opening for ducted air
distribution into the adjacent
room (ready to punch out)
MODELS 9 12 18
WEIGHTS (kg) 26 28 29
571
571
620
530
625
625
287
40
327
270
T
A
B
C
Ø200
Ø100
9 12 18
A 39 39 50
B 119 119 130
