Technical data

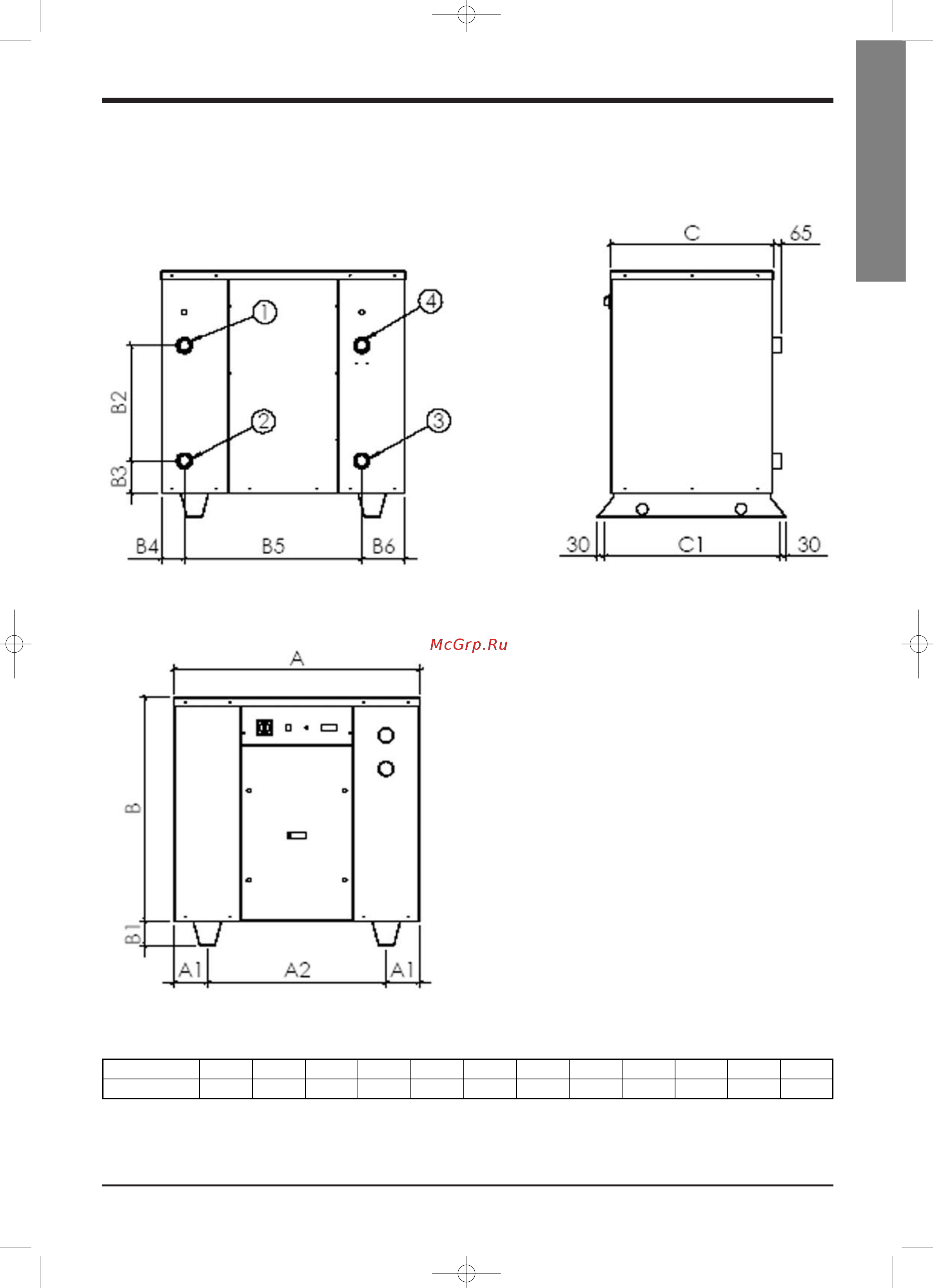

CWP / CWP-HP / CWP-RC (18 - 21)
Side viewRear view
Front view
For CWP / CWP-HP
1 Evaporator inlet:
1”1/4 female
2 Evaporator outlet:
1”1/4 female
3 Condenser inlet:
1”1/4 female
4 Condenser outlet:
1”1/4 female
For CWP-RC
1 Evaporator inlet:
1”1/4 female
2 Evaporator outlet:
1”1/4 female
3 Discharge line:
1”1/8
4 Liquid line:
7/8”
Unit Size A A1 A2 B B1 B2 B3 B4 B5 B6 C C1
18-21 1100 150 800 1000 110 518 145 100 800 200 730 790
