Page 12

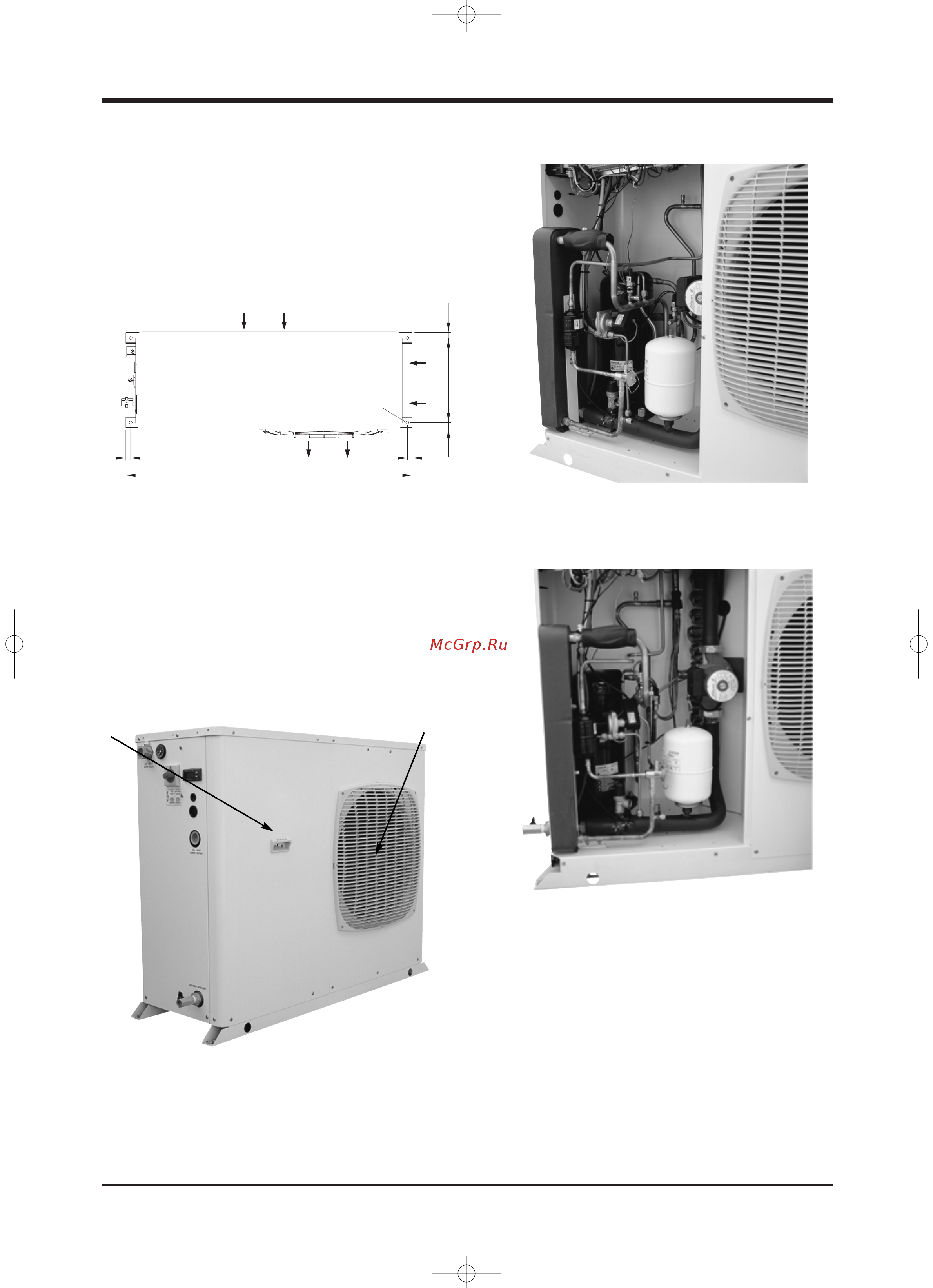

Fixing dimensions
The fixing dimensions of the unit are shown on the
figure opposite. Vibration isolators are recommend-
ed for all roof mounted installation or wherever
vibration transmis-sion is a consideration.
Picture 3 shows the location of each isolato
r.
Installation
Maintenance access
After installation, each side of the unit must allow
easy access for periodic maintenance works.
The removal of panel 1 allows access to compres-
sor, refrigerant circuit as well as hydronic module.
The fan-motor assembly is accessible after removing
the panel 2 .
20
1142
1182
4xØ13
20
22,5
349
22,5
ARIA
ARIA
ARIA
Picture 3
Photo 1
Photo 2
Remark: The panel 1 is removable independently
of other panels and allows a start-up by maintain-
ing the operating characteristics of the unit.
panel 2
panel 1
Photo 3
Manuale MQL-MQH 10.6.2005 12:26 Pagina 12
