Airwell SWS 3412 HFС 134a [41/48] Dimensions in mm cont d

Page 41

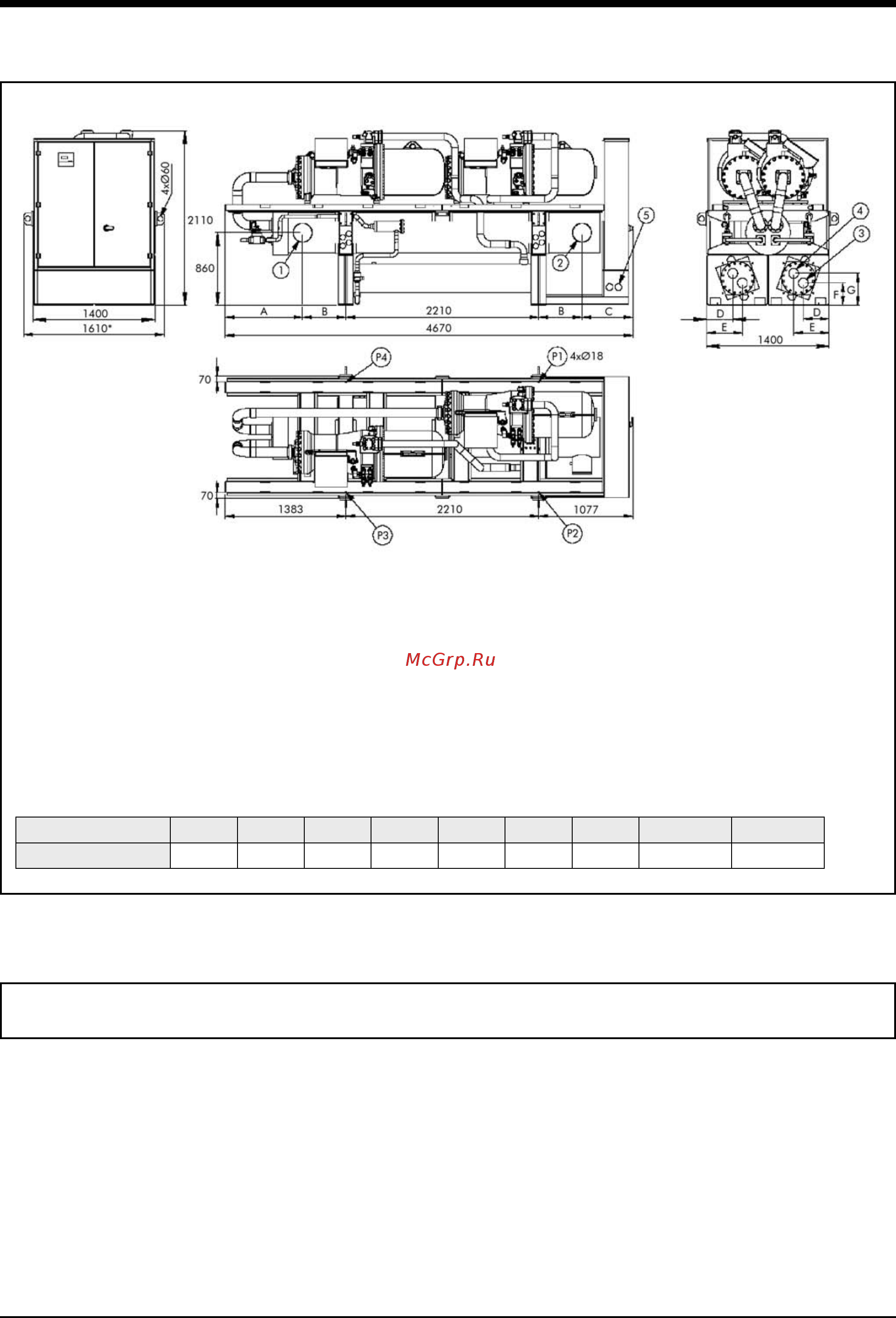

SWS STD Frame 4

Dimensions (in mm) (cont'd)

Legend :

* For shipping only

1 Evaporator water inlet

2 Evaporator water outlet

3 Discharge line connection

4 Liquid line connection

5 Power supply cable entry

P1, P2, P3 and P4 : vibration isolator fixing points

Dimensions A B C D E F G 1-2 3-4

4602-4802 888 495 582 297 400 256 366 DN200 (8") DN100 (4")

SWR STD Frame 4

Data available during unit manufacturing. For external dimensions, please refer to SWS STD Frame 4 dimensions.
