Whilst every care has been taken to ensure that the information included in this document
was accurate at the time of printing, we reserve the right to change specifications at any time.
For further information please visit
www.aspenpumps.com
or contact +44 (0)1323 848842
designed by engineers for engineers
25
20
15
10
5
0
0 5 10 15 20 25 30 35
LITRES PER HOUR
METRES HEAD
WE RECOMMEND USING THIS PUMP
FOR NO GREATER THAN 15m HEAD

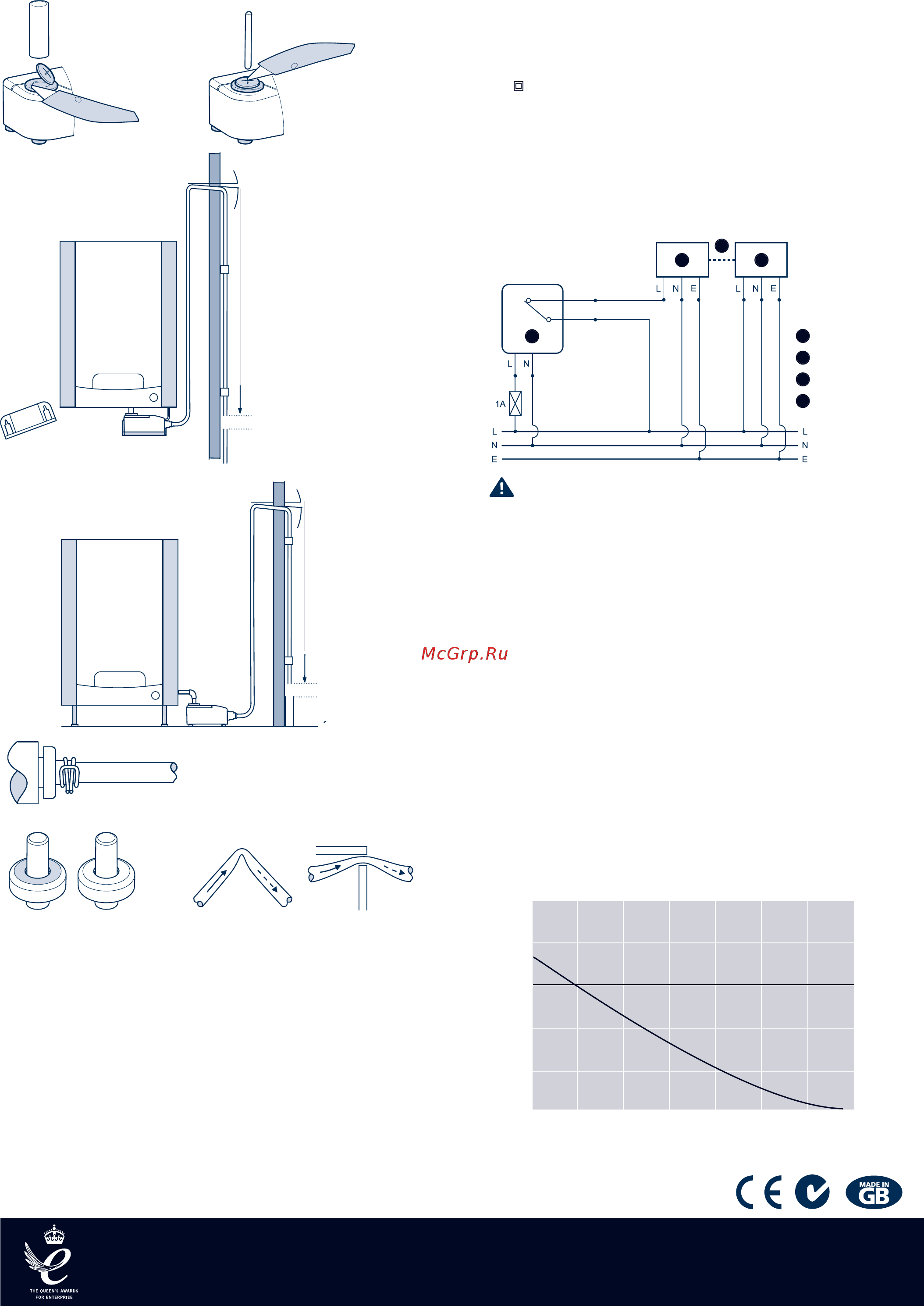

Installation Power Supply
• 230V AC 16W
• 1PH 50/60 Hz
• 3A alarm wires, normally closed
• Double insulated
Electrical Connections
Live: Brown
Neutral: Blue
Safety switch: 2x Black Earth – Yellow/Green
The pre-wired safety switch SHOULD ALWAYS be utilised.
• If a fused plug is used, a 3 amp fuse is recommended.
Commissioning & Maintenance
• Before servicing the pump, make sure the electrical power is
disconnected at the fuse box for both the pump and boiler.
• When commissioning the pump please check for debris in
the pump tank. Remove any material that might block the
drain line or drain into the boiler pump.
• Regularly clean the holding tank and floats with warm water
and soap. Rinse completely when finished.
• Check the inlet and outlet piping ensuring that there are no
restrictions in the tubing.
Contact Aspen Pumps for further help.
Performance
MAX 3 AMP
Pump Unit
Indoor Unit
Interconnecting Cables
Outdoor Unit
1
2
3
4
1
2
3
4
Prevent any kinks or trapped parts.
Connect supplied 6m / 10mm I.D.
clear tubing to the pump.
• If unable to create a downward slope at the highest point,
an inverted U must be formed in the tubing.
• When tubing from the pump goes to a soil stack or waste
pipe, always use a waste trap or a 75mm U trap formed
within the tubing at the exit point.
• Where tubing from the pump goes to external soil and vent
stack, extra care must be taken to prevent condensate from
freezing and causing blockage.
MAX. 15m
MAX. 15m
Position the pump
beneath the boiler so
that the water flows
into the top inlet hole.
Ø 17mm or less –
pierce lid
Ø 17mm or more –
Slice off top
