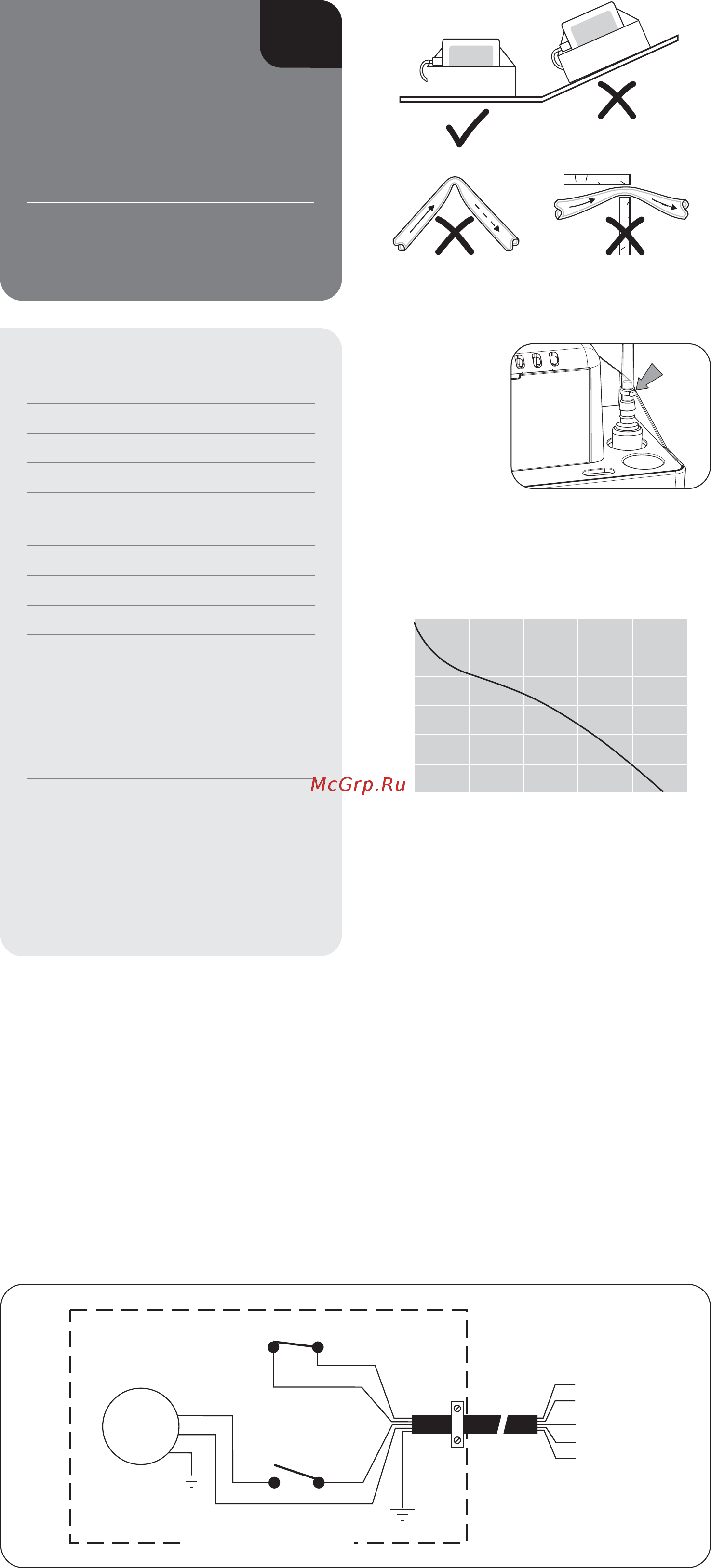

![Aspen pumps Hi-flow 2L [2/6] Hi flow 1 2 litre tank pump](/views2/1410218/page2/bg2.png)
Description:
The pump is designed to collect condensated
water from Air Conditioning machines and
discharge it up to recommended maximum 4.6
metres head. The internal safety float is a low
current switch to stop the Air Conditioning
System in the event of pump failure. The pump
is operated from an internal float switch.
Installation Notes:
This pump is designed to sit level on its base or
be fitted level to a vertical surface.
Ensure that there are no kinks or trapped
parts in the piping, which must have an
inside diameter
of 6mm or 9mm.
Fix the pipe with
cable ties to the
pump outlet.
IMPORTANT:
The pre-wired safety switch MUST ALWAYS
be utilised.
Service Guide:
Flush the pump through with anti-bacterial
wash every 6 months to avoid sludge
build-up in the pump housing.
NB:
The contractors should satisfy themselves
that any chemicals used are compatible with
the working of the pump.
IMPORTANT:
Pump should be filled with water until motor
runs, check for leaks and proper discharge
of water.
For further help contact Aspen Pumps.
Technical Specification:
Q Non-return valve
Q 2 metre connecting cable
Q Tank holds 1 litre or 2 litres
Q Maximum 4.6 metres discharge head
Q Maximum water pumping, capacity
288 litres per hour discharge
Q Pump has a pre-wired safety switch
Q Pump rating 0.6A, 230V AC
Q Safety switch: 4A maximum
Dimensions:
1 Litre: Height: 140mm Width: 235mm
Depth: 140mm Weight: 1.7kg
2 Litre: Height: 170mm Width: 235mm
Depth: 140mm Weight: 1.75kg
Electrical Connections:
Brown: Live
Blue: Neutral
Green/yellow: Earth
Black: N/C
Black: Common
SAFETY
FLOAT SWITCH
BLACK
BLACK
LIVE
NEUTRAL
EARTH
PUMP
MOTOR
NORMAL
FLOAT SWITCH
PUMP CASING
GB
Hi-Flow
1 & 2 Litre
Tank Pump
Particularly suitable for any
application requiring the
rapid removal of condensate
300
250
200
150
100
50
0
012345
FLOW IN LITRES/HOUR
PERFORMANCE
METRES HEAD
