Getting Started
L
AUDIO OUT
VIDEO OUT
VIDEO
S VIDEO
R
OPTICAL
PCM/Î DIGITAL
DTS
SUBWOOFER
AUDIO
IN
L
R
S VIDEO
IN

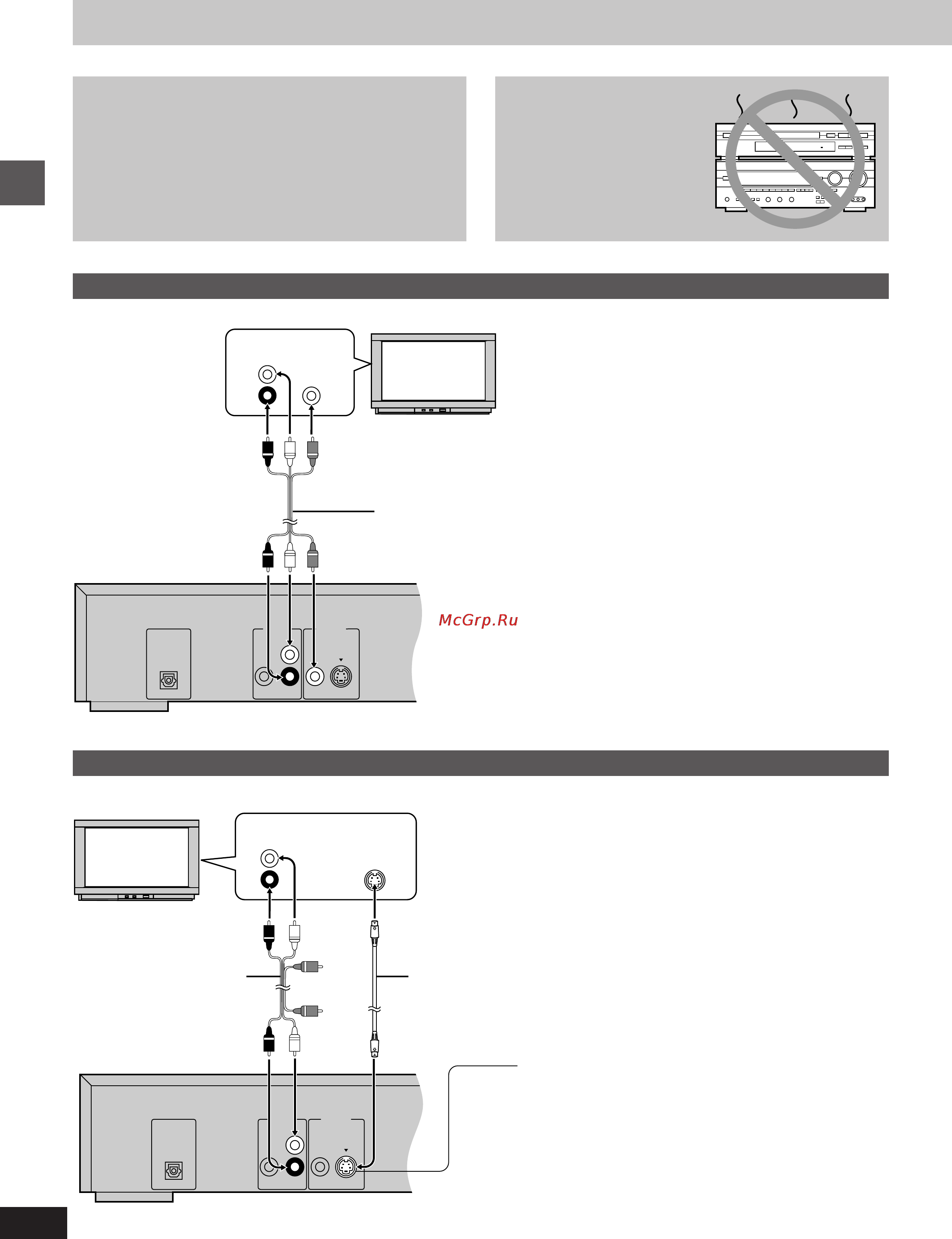

S video output terminal
The S (separate) video output terminal achieves a clearer
picture than the video output terminal by separating the color (C)
and luminance (Y) signals before transmitting them to the
television. (Actual results depend on the television.)
Television
Audio/video cable (included)
S video cable
Back of the player
Connect Your Player Directly To Your
Television.
If the player is connected to the television through a video cas-
sette recorder, the picture may not be played back correctly due
to the copy guard. So we strongly recommend you do not con-
nect the player to your video cassette recorder when setting up
your home entertainment system.
³Connect to the television section if you connect the player to a
combined television-video player.
Do not place the
player on amplifiers or
other equipment
which may become
hot.
The heat can damage the player.
Connecting to a television with video input terminal
Connection to a television
L
AUDIO OUT
VIDEO OUT
VIDEO
S VIDEO
R
OPTICAL
PCM/Î DIGITAL
DTS
SUBWOOFER
AUDIO
IN
L
R
VIDEO
IN
Back of the player
Audio/video cable (included)
Television
Connecting to a television with S video input terminal
