7 En
English

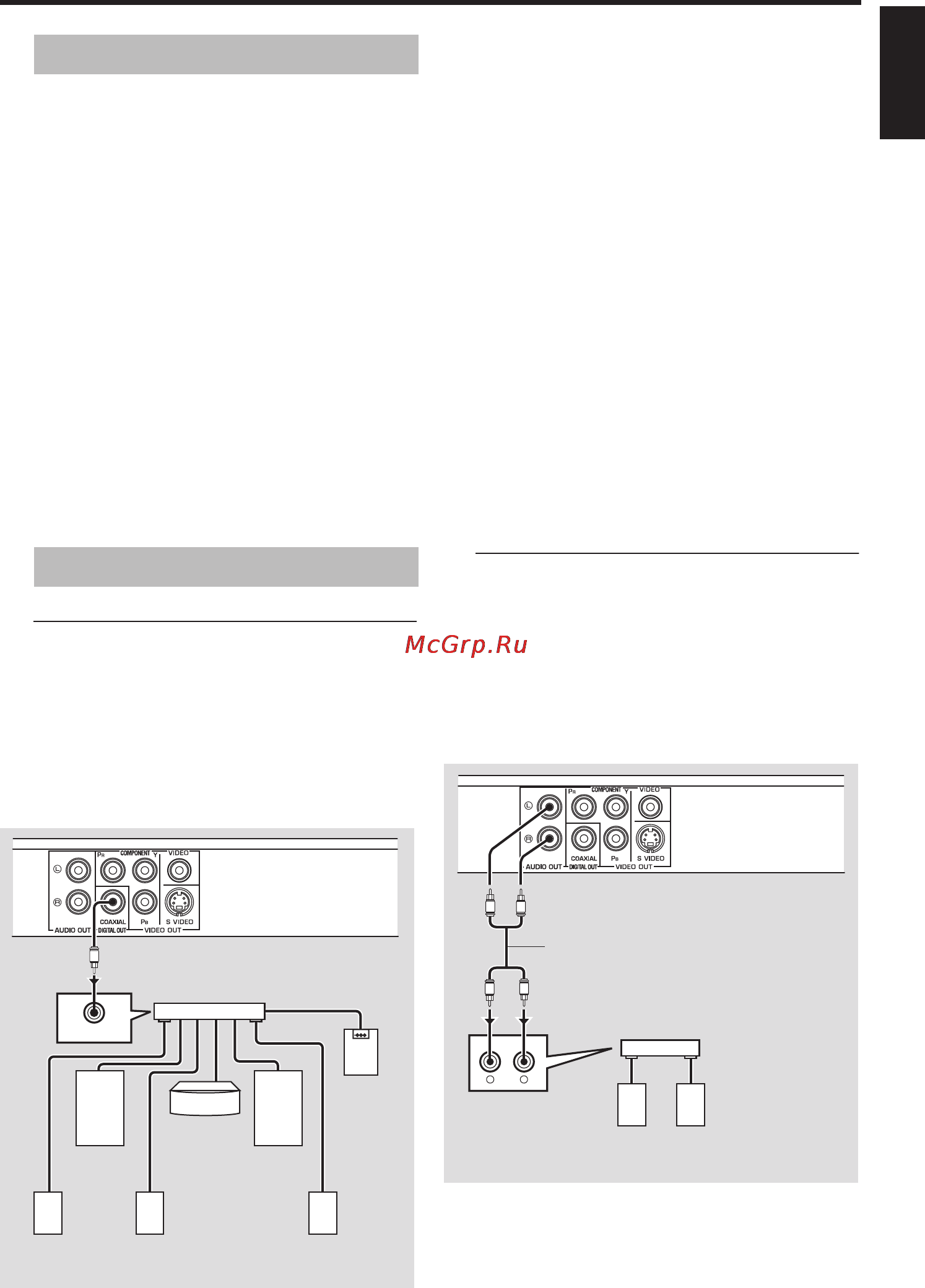

Connections
Be sure to turn off this unit and unplug the
power supply cable, before you make or
change connections.
• Depending on the equipment you wish
to connect, there are various ways to
make connections. Possible connections
are described below.
• Refer to the manuals of your other
components as necessary to make the
best connections.
• Do not connect this unit via your VCR.
The video quality could be distorted by
the copy protection system.
• Do not connect the audio out jack of
this unit to the phono in jack of your
audio system.
Digital connection
This unit has a coaxial digital out jack.
Connect DIGITAL OUT - COAXIAL jack
of this unit to your AV receiver equipped
with Dolby Digital, DTS, or MPEG
decoder using a commercially available
coaxial cable.
You need to set “DIGITAL OUTPUT” to
“ALL” (see “DIGITAL OUTPUT” on
page 25).
Notes:
– If the audio format of the digital output
does not match the capabilities of your
receiver, the receiver produces a distorted
sound or no sound at all. Make sure to
select the appropriate audio format from
the menu screen on the disc.
Pressing AUDIO on the remote control once
or more may change not only the audio
languages but also the audio format. The
selected format appears in the front panel
display for several seconds.
– If you wish to enjoy Dolby Digital, DTS and
MPEG formats, you must connect this unit
to an AV receiver that supports these
formats.
Analog connection
This unit has analog output jacks.
Connect AUDIO OUT (L, R) jacks of this
unit to the corresponding input jacks of
your audio component (such as a stereo
amplifier) using the supplied audio pin
cable.
General notes on connections
Audio connections
COAXIAL
IN
C
AV receiver
Left front
speaker
Right surround
speaker
Center
speaker
Subwoofer
Right front
speaker
Left surround
speaker
Surround
back speaker
This unit
CD/DVD
L
R
L
R
R
L
Right
speaker
Left
speaker
Audio pin cable
This unit
Stereo
amplifier
