5

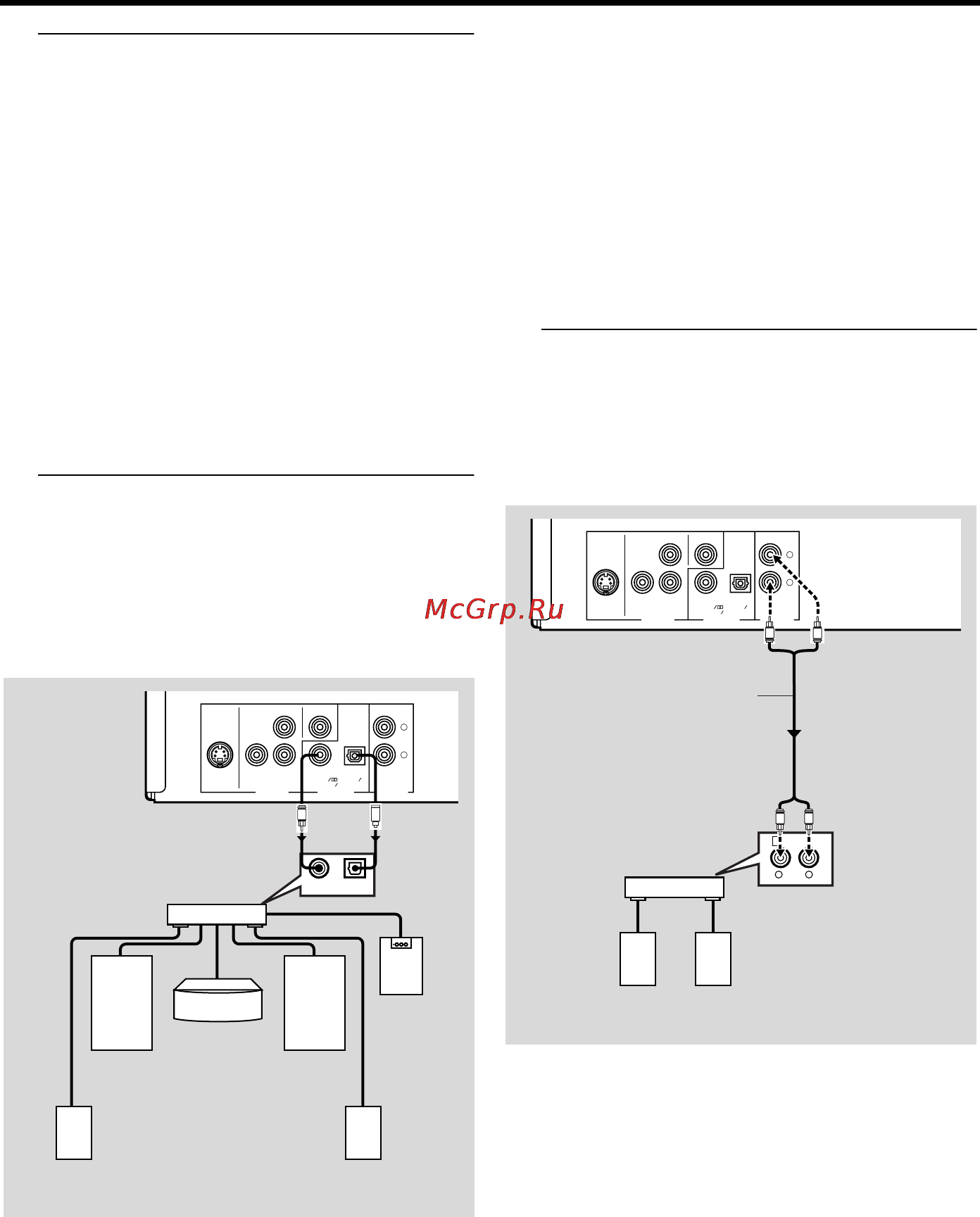

General Notes on connections
Never make or change connections with the
power switched on.
●
Depending on the equipment you wish to
connect, there are various ways you could
connect this unit. Possible connections are shown
in the following drawings.
●
Please refer to the manuals of other equipment as
necessary to make the best connections.
●
Do not connect this unit via your VCR. The video
quality could be distorted by the copy protection
system.
●
Do not connect this unit’s audio out jack to the
phono in jack of your audio system.
Digital Connections
This unit has COAXIAL and OPTICAL digital out
jacks. Connect one or both of them to your AV
receiver equipped with Dolby digital, DTS, or
MPEG decoder using each specific cable (separate
purchase).
You will need to set this unit’s digital
output to All (see ‘Digital Output’).
Note:
– If the audio format of the digital output does not
match the capabilities of your receiver, the receiver
will produce a strong, distorted sound or no sound at
all. Make sure to select the appropriate audio
format at menu screen included on the disc.
Pressing AUDIO once or more may change not only
audio languages but also audio formats, and the
selected format appears for several seconds on the
status window.
Analog Connections
Use audio/video cable supplied with this unit to
connect AUDIO OUT L (left) and R (right) jacks
of this unit to corresponding input jacks of your
audio equipment such as Stereo amplifier.
COAXIAL
PCM
DTS MPEG
DIGITAL
OPTICAL
VIDEO
AUDIO OUT
VIDEO OUT
COMPONENT
S VIDEO
P
R PB
Y
R
L
DIGITAL OUT
AV receiver
Left main
speaker
Left rear
speaker
Center speaker
Right main
speaker
Subwoofer
Right rear
speaker
COAXIAL
IN
OPTICAL
IN
C
O
COAXIAL
PCM
DTS MPEG
DIGITAL
OPTICAL
VIDEO
AUDIO OUT
VIDEO OUT
COMPONENT
S VIDEO
P
R PB
Y
R
L
DIGITAL OUT
Stereo
amplifier
(supplied)
Left
speaker
Right
speaker
1 CD/DVD
RL
R
L
L
R
Preparation
