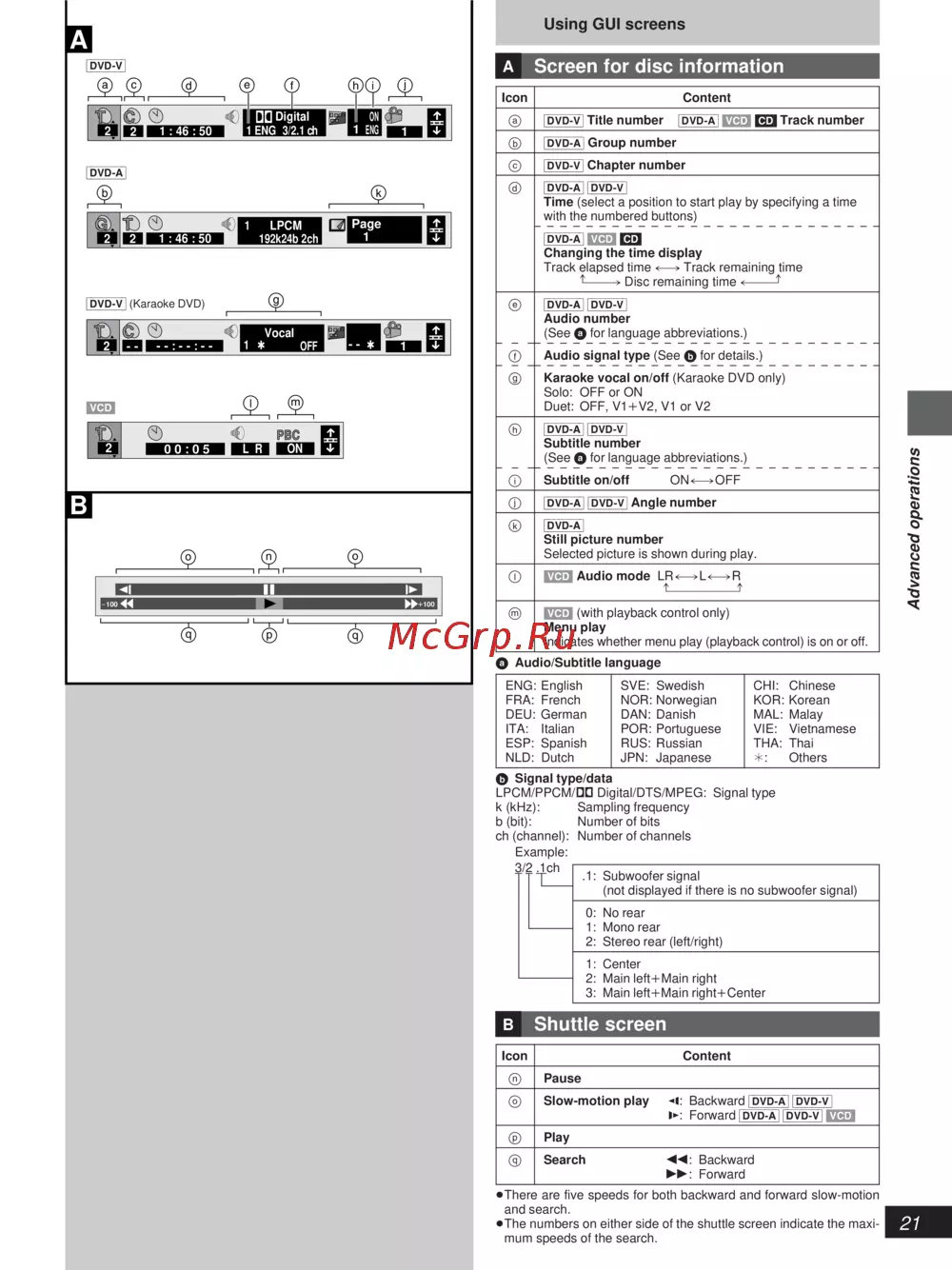

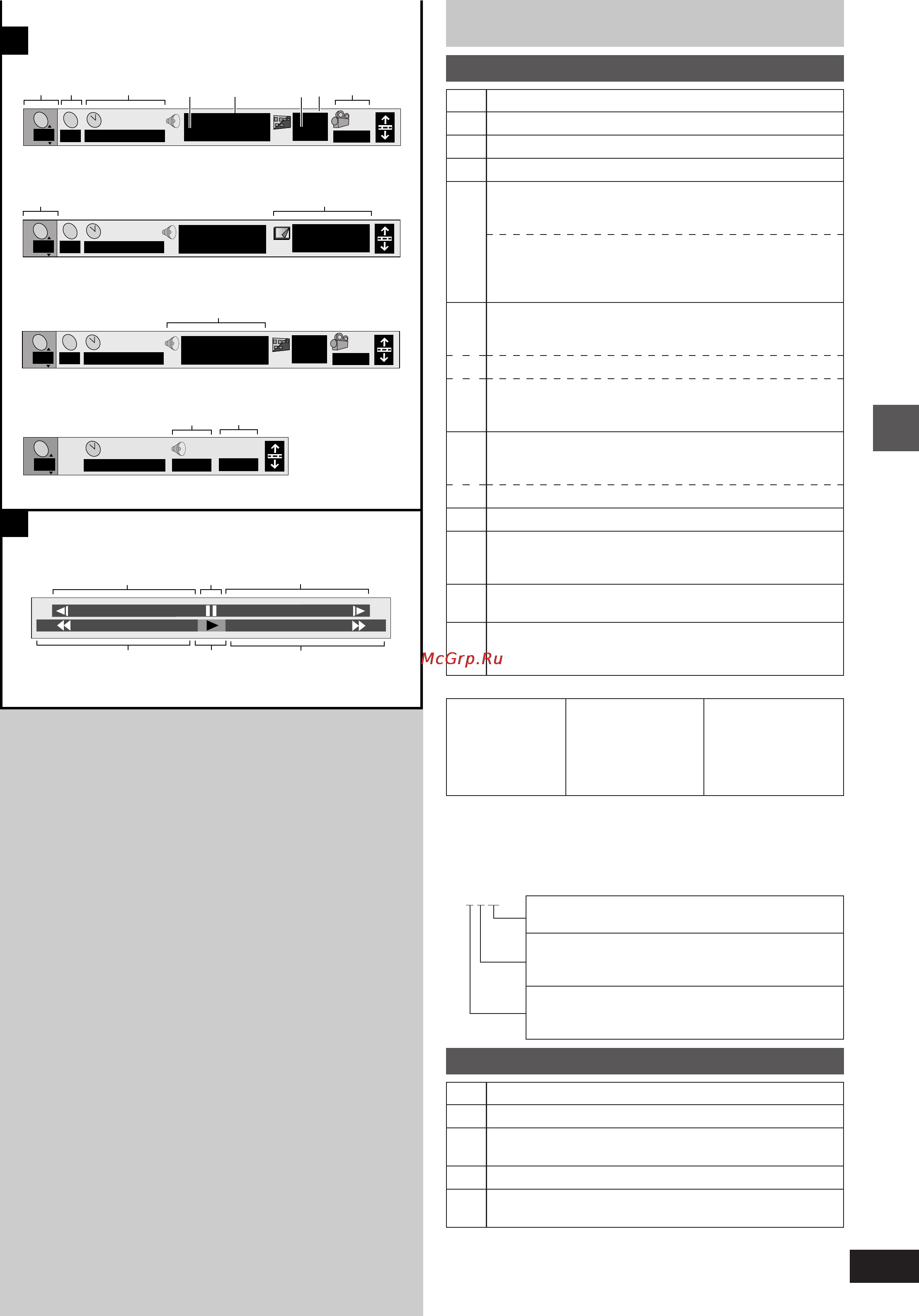

Using GUI screens
»
A
Screen for disc information
= Audio/Subtitle language
.1: Subwoofer signal
(not displayed if there is no subwoofer signal)
.0: No rear
.1: Mono rear
.2: Stereo rear (left/right)
.1: Center
.2: Main leftiMain right
.3: Main leftiMain rightiCenter
»
B
Shuttle screen
ENG: English
FRA: French
DEU: German
ITA: Italian
ESP: Spanish
NLD: Dutch
SVE: Swedish
NOR: Norwegian
DAN: Danish
POR: Portuguese
RUS: Russian
JPN: Japanese
CHI: Chinese
KOR: Korean
MAL: Malay
VIE: Vietnamese
THA: Thai
¢: Others
Icon
a
b
c
d
e
f
g
h
i
j
k
l
m
Content
[DVD-V] Title number [DVD-A] [VCD] [CD] Track number
[DVD-A] Group number
[DVD-V] Chapter number
[DVD-A] [DVD-V]
Time (select a position to start play by specifying a time
with the numbered buttons)
[DVD-A] [VCD] [CD]
Changing the time display
Track elapsed time !# Track remaining time
^-------# Disc remaining time !-------J
[DVD-A] [DVD-V]
Audio number
(See = for language abbreviations.)
Audio signal type (See > for details.)
Karaoke vocal on/off (Karaoke DVD only)
Solo: OFF or ON
Duet: OFF, V1iV2, V1 or V2
[DVD-A] [DVD-V]
Subtitle number
(See = for language abbreviations.)
Subtitle on/off ON()OFF
[DVD-A] [DVD-V] Angle number
[DVD-A]
Still picture number
Selected picture is shown during play.
[VCD] Audio mode LR()L()R
^---------------------J
[VCD] (with playback control only)
Menu play
Indicates whether menu play (playback control) is on or off.
Icon
n
o
p
q
Content
Pause
Slow-motion play E: Backward [DVD-A] [DVD-V]
D: Forward [DVD-A] [DVD-V] [VCD]
Play
Search 6: Backward
5: Forward
> Signal type/data
LPCM/PPCM/ë Digital/DTS/MPEG: Signal type
k (kHz): Sampling frequency
b (bit): Number of bits
ch (channel): Number of channels
Example:
3/2 .1ch
³There are five speeds for both backward and forward slow-motion
and search.
³The numbers on either side of the shuttle screen indicate the maxi-
mum speeds of the search.
[DVD-V]
[DVD-A]
[VCD]
[DVD-V]
(Karaoke DVD)
