Tp-Link TL-WDR4300 [13/135] Panel layout
![Tp-Link TL-WDR4300 [13/135] Panel layout](/views2/1041648/page13/bgd.png)
TL-WDR4300 N750 Wireless Dual Band Gigabit Router
- 4 -
1.4 Panel Layout
1.4.1 The Front Panel

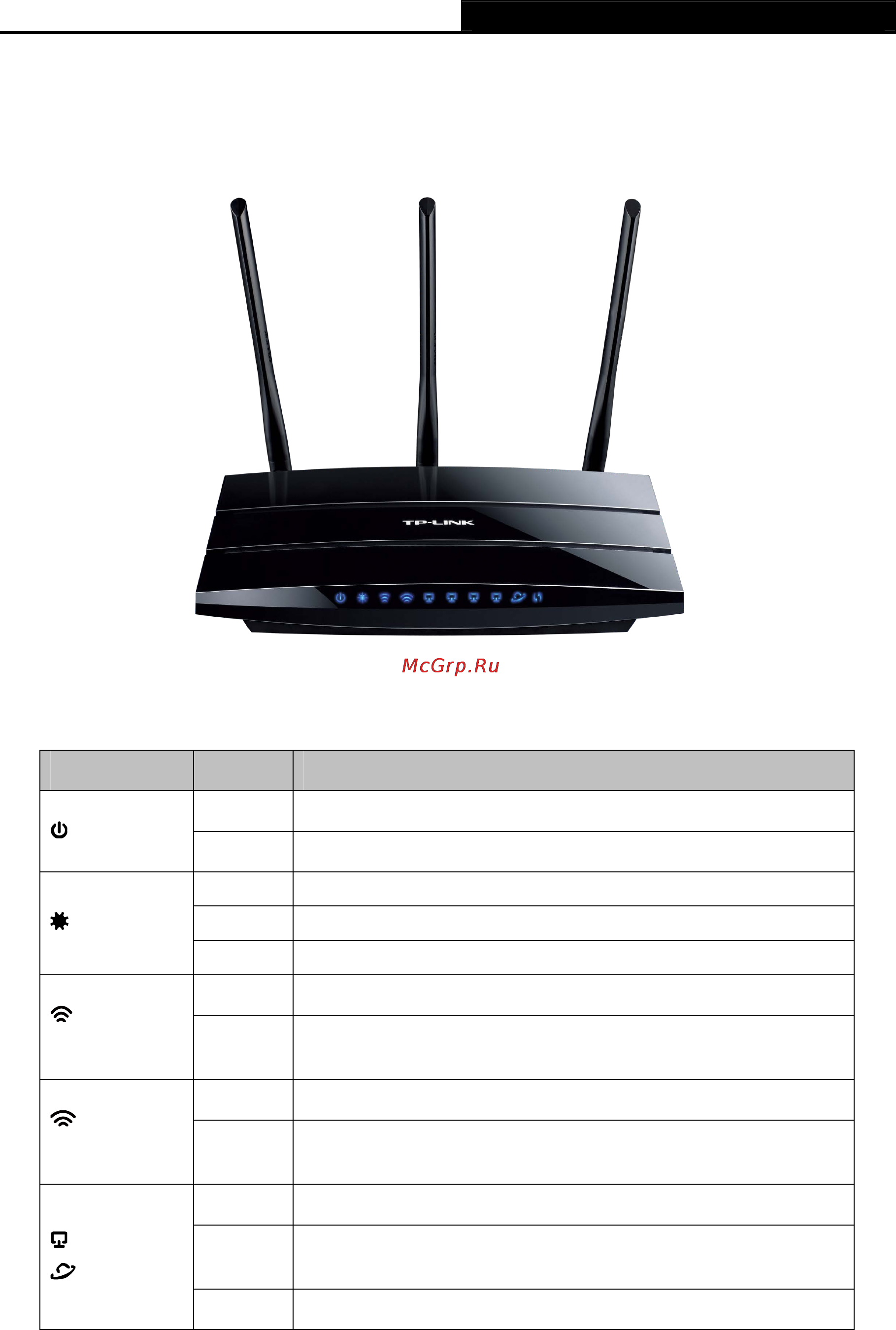

Figure 1-1 LEDs on the front panel
The Router’s LEDs are located on the front panel (View from left to right).
Name Status Indication
Off Power is off.
(Power)
On Power is on.
On The Router is initializing or maybe has a system error.
Flashing The Router is working properly.
(System)
Off The Router has a system error.
Off The wireless function is disabled.
(Wireless
2.4GHz)
Flashing
The wireless function is enabled. The Router is working on
2.4GHz radio band.
Off The wireless function is disabled.
(Wireless
5GHz)
Flashing
The wireless function is enabled. The Router is working on
5GHz radio band.
Off There is no device linked to the corresponding port.
On
There is a device linked to the corresponding port but there
is no activity.
(Ethernet)
(Internet)
Flashing There is an active device linked to the corresponding port.
