TL-WDR4300 N750 Wireless Dual Band Gigabit Router
- 24 -

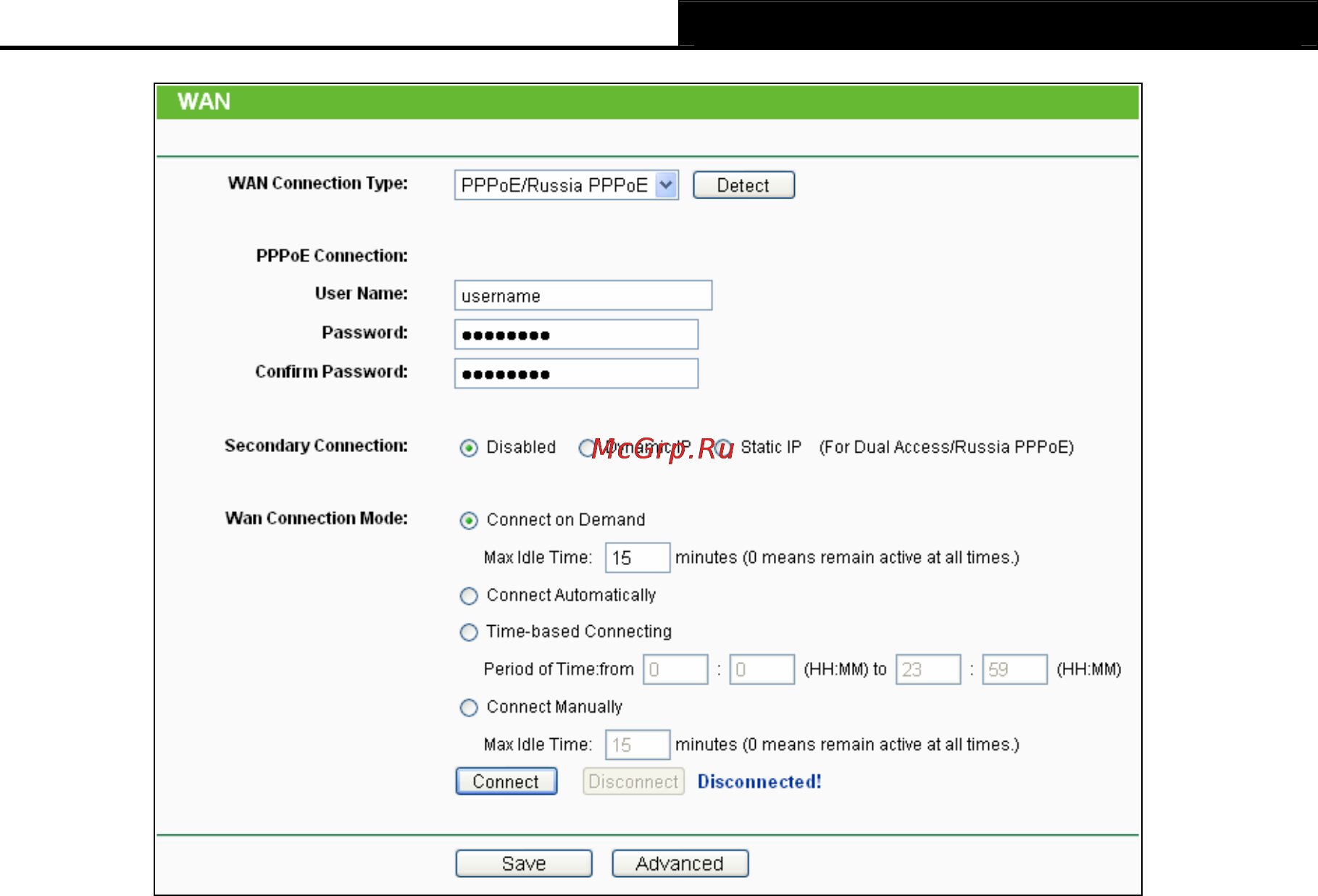

Figure 4-5 WAN - PPPoE
¾ User Name/Password - Enter the User Name an ded by your ISP. These
- It’s available only for PPPoE Connection. If your ISP provides an
PPoE
o button to use Dynamic IP as the secondary
y connection
¾ y
blished automatically when it was
The connection will only be established in the period from the
d Password provi
fields are case-sensitive.
¾ Secondary Connection
extra Connection type such as Dynamic/Static IP to connect to a local area network, then you
can check the radio button of Dynamic/Static IP to activate this secondary connection.
z Disabled - The Secondary Connection is disabled by default, so there is P
connection only. This is recommended.
z Dynamic IP - You can check this radi
connection to connect to the local area network provided by ISP.
z Static IP - You can check this radio button to use Static IP as the secondar
to connect to the local area network provided by ISP.
Connect on Demand - In this mode, the Internet connection can be terminated automaticall
after a specified inactivity period (Max Idle Time) and be re-established when you attempt to
access the Internet again. If you want your Internet connection keeps active all the time,
please enter “0” in the Max Idle Time field.
Otherwise, enter the number of minutes you want
to have elapsed before your Internet access disconnects.
¾ Connect Automatically - The connection can be re-esta
down.
¾ Time-based Connecting -
start time to the end time (both are in HH:MM format).
