TL-WDR4300 N750 Wireless Dual Band Gigabit Router
- 40 -

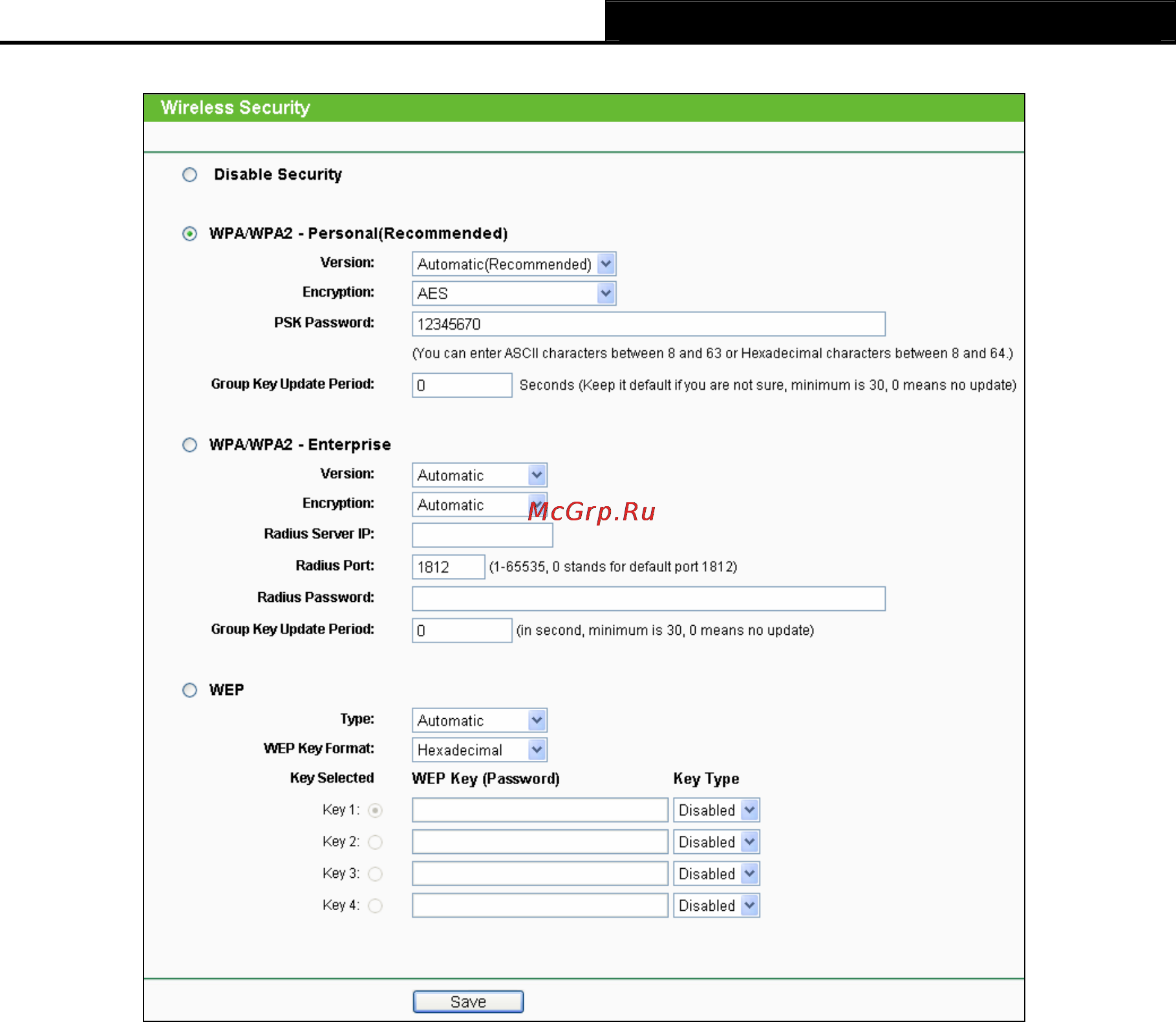

Figure 4-20 Wireless Security
¾ Disable Security - If you do not want to use wireless security, check this radio button. But it’s
ased on pre-shared
d key of WPA) automatically based on the wireless station's
the Authentication Type, you can select
Automatic, or TKIP or AES as Encryption.
button and choose TKIP encryption, you will
find a notice in red as shown in Figure 4-21.
strongly recommended to choose one of the following modes to enable security.
¾ WPA/WPA2-Personal - It’s the WPA/WPA2 authentication type b
passphrase. The Router is configured by this security type by default.
• Version - you can choose the version of the WPA-PSK security on the drop-down list. The
default setting is Automatic, which can select
WPA-PSK (Pre-shared key of WPA) or
WPA2-PSK (Pre-share
capability and request.
• Encryption - When WPA-PSK or WPA is set as
either
)
Note:
If you check the WPA/WPA2-Personal radio
