TL-WDR4300 N750 Wireless Dual Band Gigabit Router
- 52 -

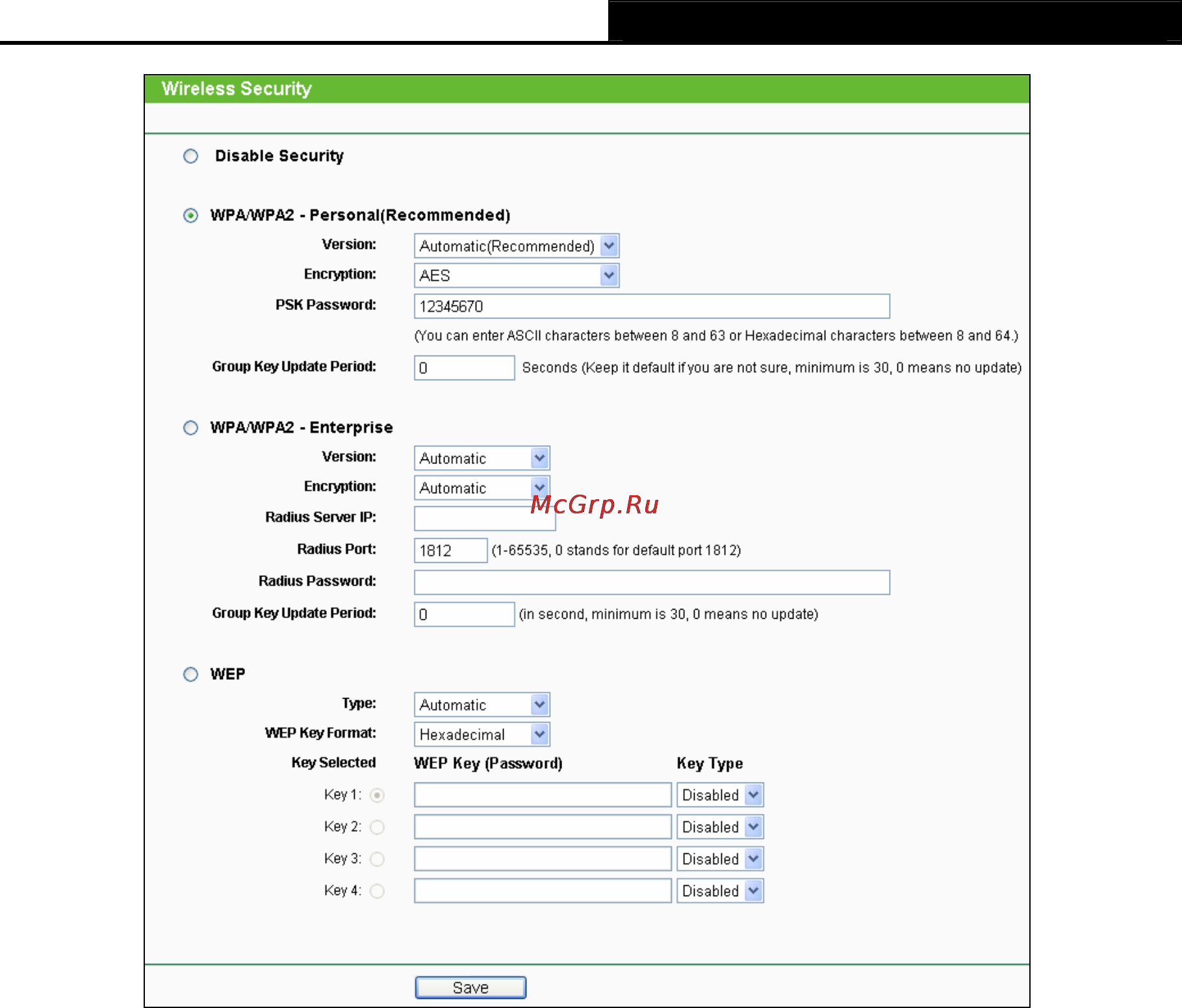

Figure 4-35 Wireless Security
¾ Disable Security - If you do not want to use wireless security, check this radio button. But it’s
strongly recommended to choose one of the following modes to enable security.
¾ WPA/WPA2-Personal - It’s the WPA/WPA2 authentication type based on pre-shared
passphrase. The Router is configured by this security type by default.
• Version - you can choose the version of the WPA-PSK security on the drop-down list.
The default setting is Automatic, which can select
WPA-PSK (Pre-shared key of WPA)
or WPA2-PSK (Pre-shared key of WPA) automatically based on the wireless station's
capability and request.
• Encryption - When WPA-PSK or WPA is set as the Authentication Type, you can select
either Automatic, or TKIP or AES as Encryption.
)
Note:
If you check the WPA/WPA2-Personal radio button and choose TKIP encryption, you will find
a notice in red as shown in Figure 4-36.
