TL-WR842ND 300Mbps Multi-Function Wireless N Router
- 107 -

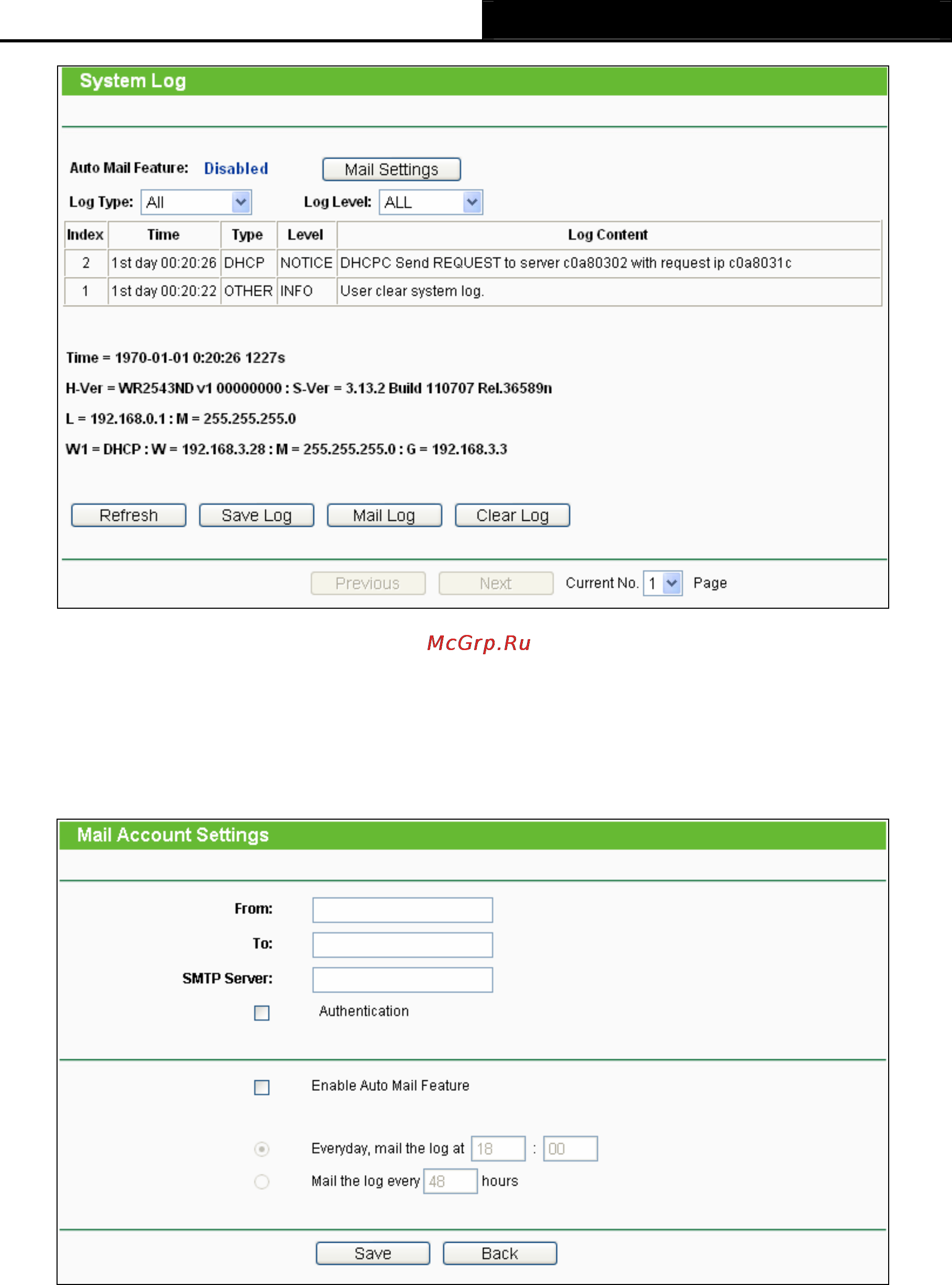

Figure 4-106 System Log
¾
Auto Mail Feature - Indicates whether auto mail feature is enabled or not.
¾ Mail Settings - Set the receiving and sending mailbox address, server address, validation
information as well as the timetable for Auto Mail Feature, as shown in Figure 4-107.
Figure 4-107 Mail Account Settings
• From - Your mail box address. The Router would connect it to send logs.
• To - Recipient’s address. The destination mailbox where the logs would be received.
• SMTP Server - Your smtp server. It corresponds with the mailbox filled in the From field.
You can log on the relevant website for help if you are not clear with the address.
