TL-WR842ND 300Mbps Multi-Function Wireless N Router
- 118 -

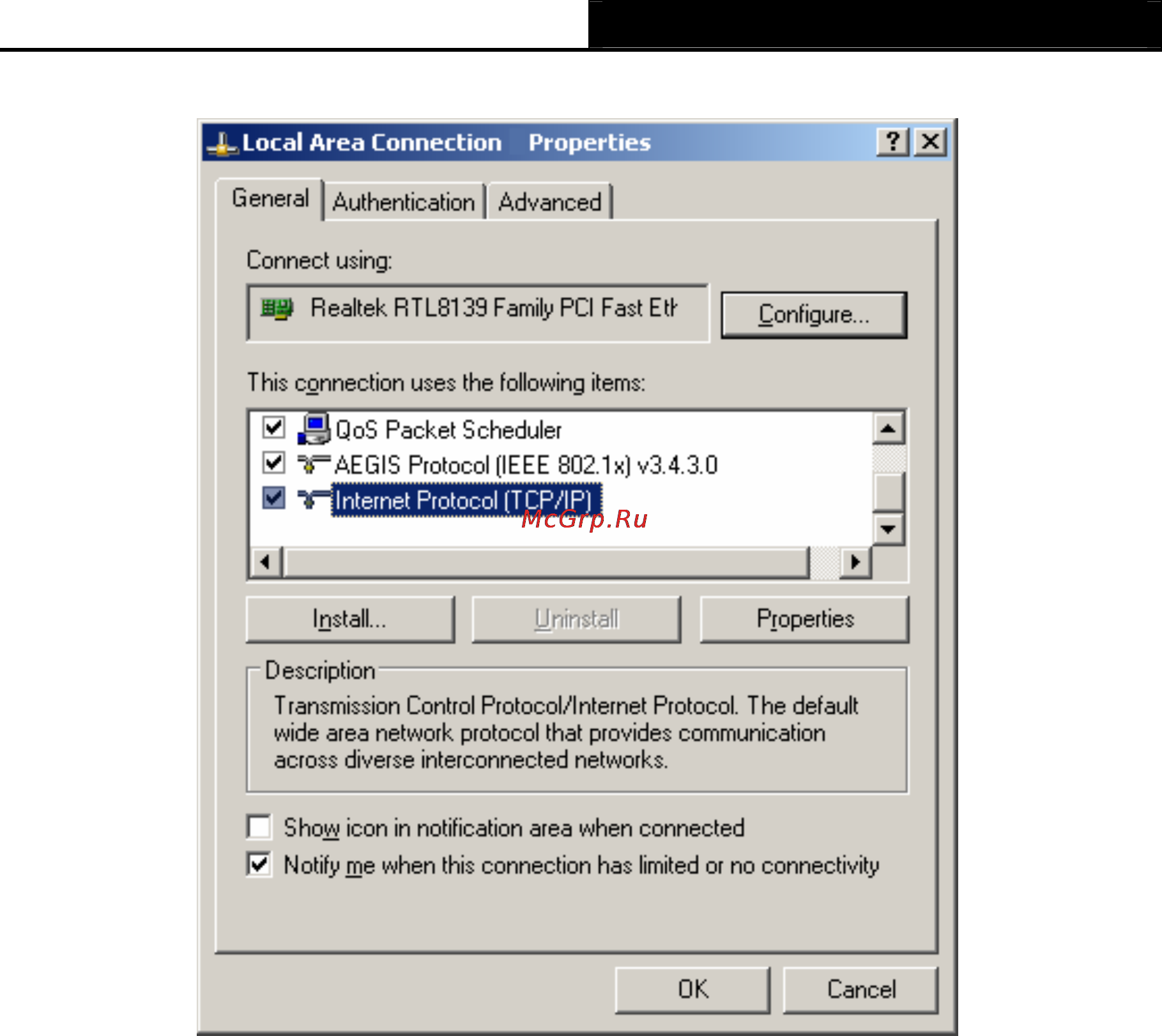

4) In the prompt page that showed below, double click on the Internet Protocol (TCP/IP).
Figure B-2
5) The following TCP/IP Properties window will display and the IP Address tab is open on
this window by default.
