TL-WR842ND 300Mbps Multi-Function Wireless N Router
- 119 -

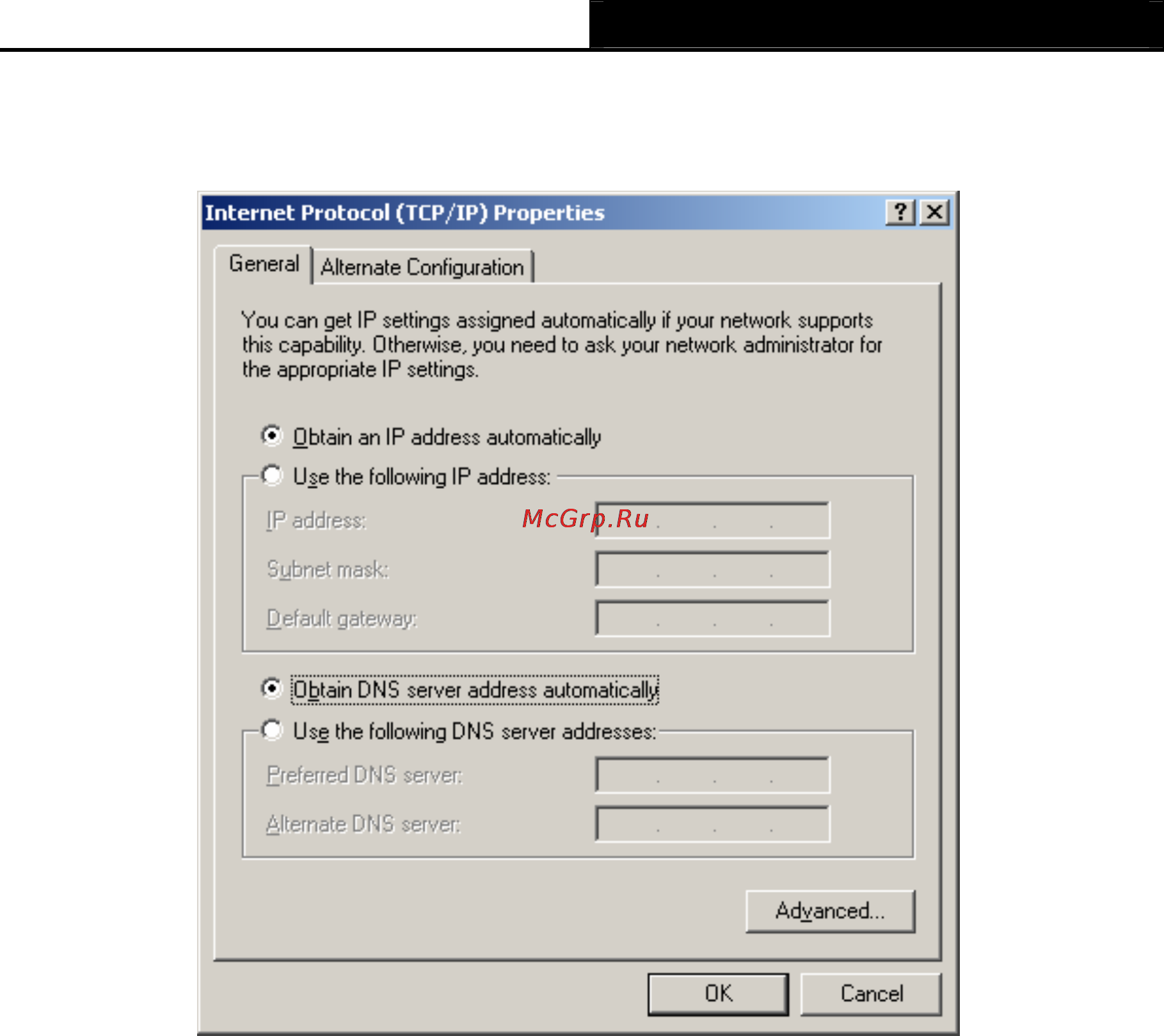

6) Select Obtain an IP address automatically and Obtain DNS server automatically, as
shown in the Figure below:
Figure B-3
