TL-WR842ND 300Mbps Multi-Function Wireless N Router
- 18 -

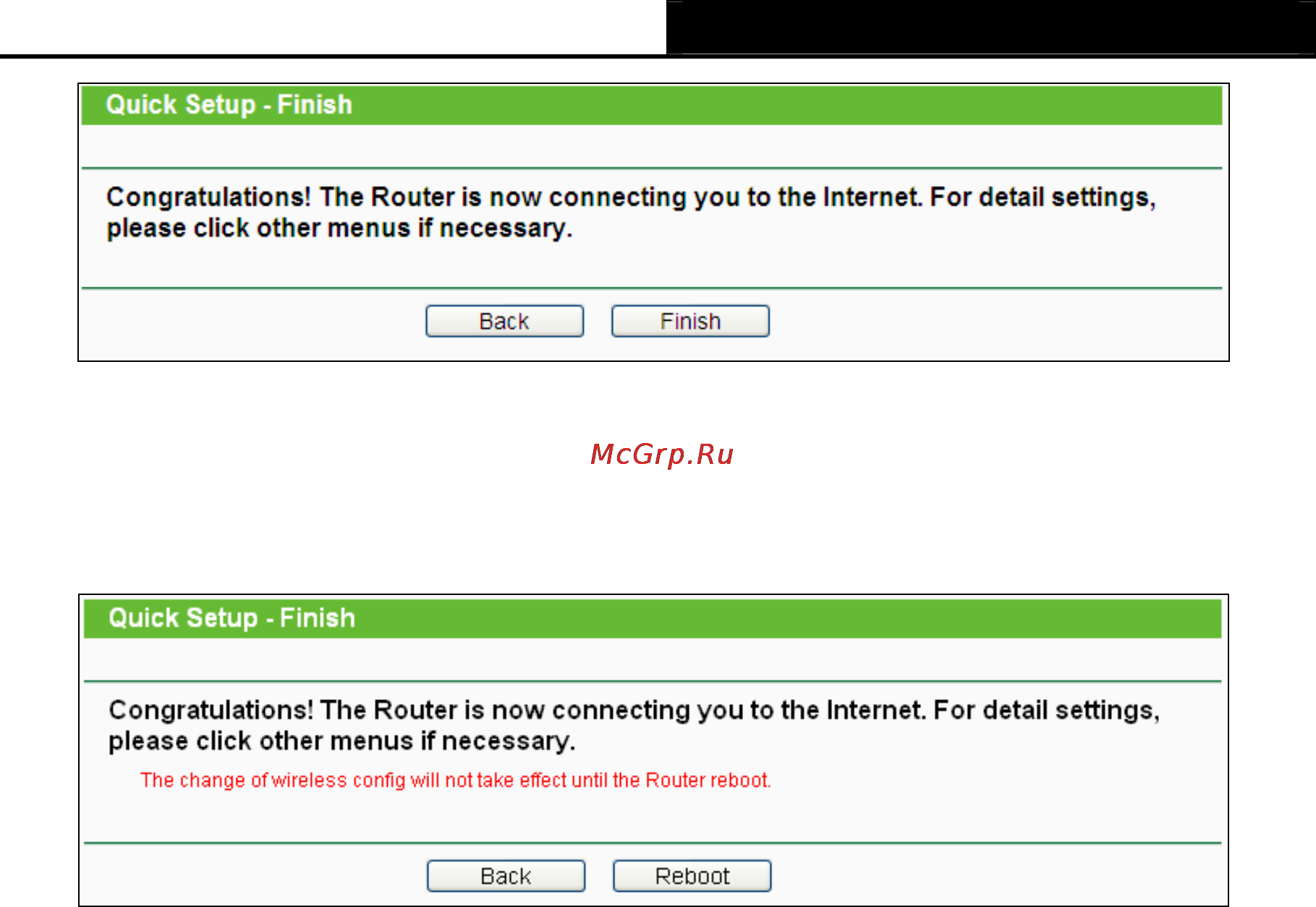

Figure 3-14 Quick Setup - Finish
If there is anything changed on the Wireless page, you will see the Finish page as shown in
Figure 3-15. Click the Reboot button to make your wireless configuration take effect and
finish the Quick Setup.
Figure 3-15 Quick Setup – Finish
