TL-WR720N 150Mbps Wireless N Router

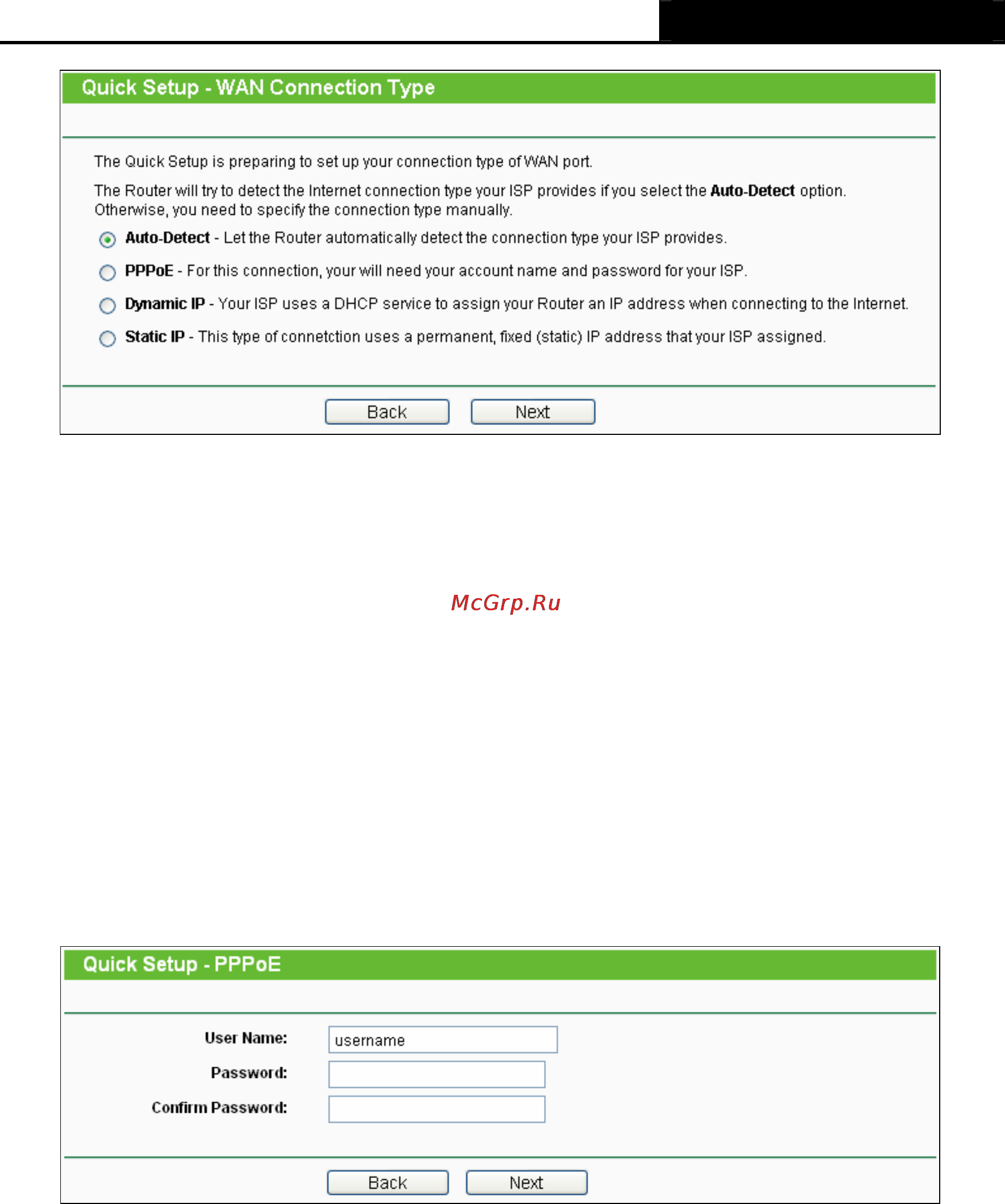

Figure 3-6 Choose WAN Connection Type

The Router provides Auto-Detect function and supports three popular ways PPPoE,

Dynamic IP and Static IP to connect to the Internet. It’s recommended that you make use of

the Auto-Detect function. If you are sure of what kind of connection type your ISP provides,

you can select the very type and click Next to go on configuring.

4. If you select Auto-Detect, the Router will automatically detect the connection type your ISP

provides. Make sure the cable is securely plugged into the WAN port before detection. The

appropriate configuration page will be displayed when an active Internet service is

successfully detected by the Router.

¾ If the connection type detected is PPPoE, the next screen will appear as shown in

Figure 3-7.

Figure 3-7 Quick Setup – PPPoE

¾ User Name and Password - Enter the User Name and Password provided by your ISP.

These fields are case sensitive. If you have difficulty with this process, please contact

your ISP.

¾ Confirm Password - Re-enter the password provided by your ISP to ensure the

Password you entered is correct. If the Password is different from the Confirm Password,

the screen will appear as shown below. Click OK, and re-enter the Password and

Confirm Password.

-11-
