54M

Wireless

Adapter User GuideTL-WN310G

- 14 -

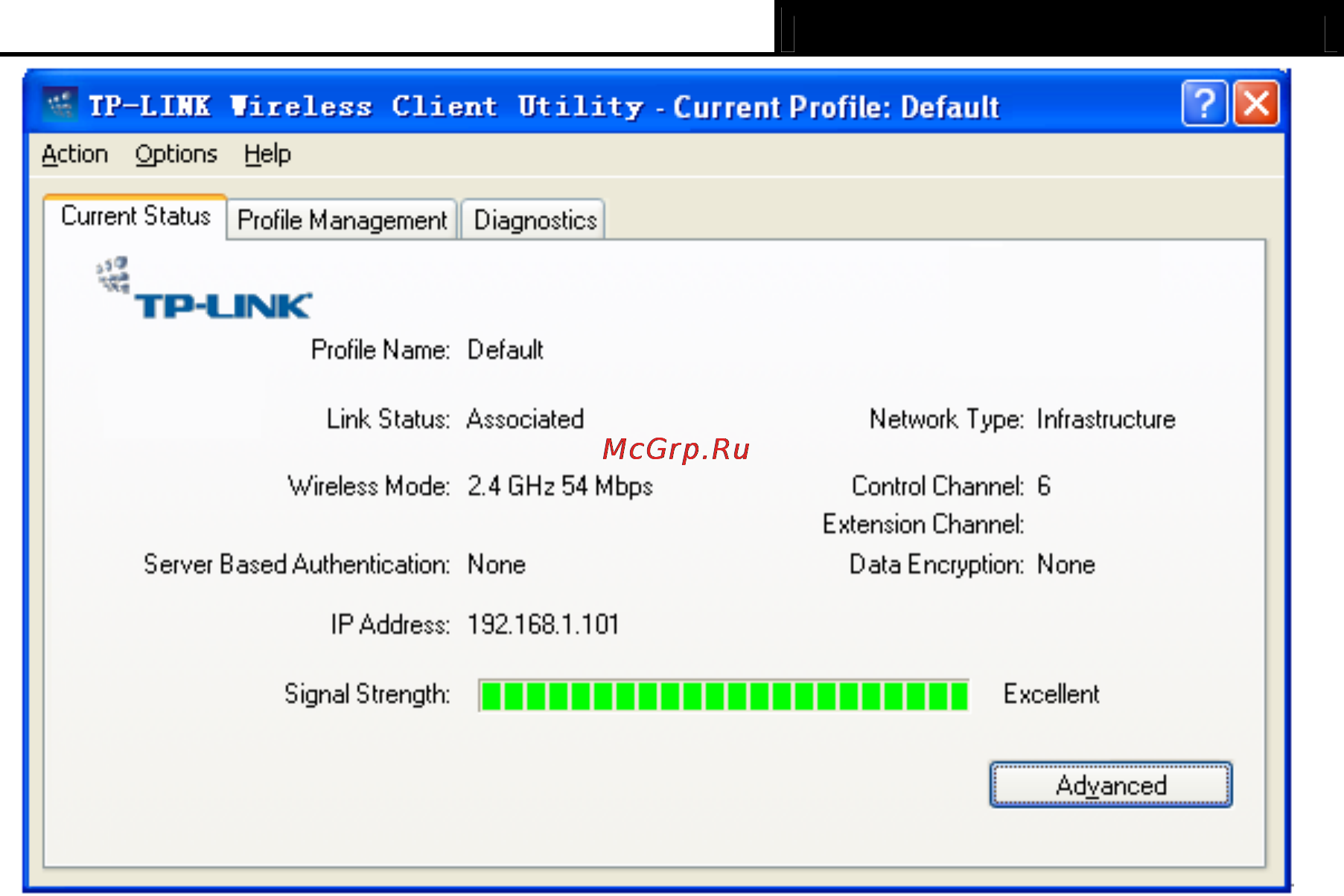

Figure 3-1

The following table describes the items found on the Current Status screen.

¾ Profile Name - The name of current selected configuration profile. Set up the configuration

name on the General tab of Profile Management.

¾ Link Status - Shows whether the station is associated to the wireless network.

¾ Wireless Mode - Displays the wireless mode. Configure the wireless mode on the

Advanced tab of Profile Management.

¾ Network Type - The type of network and the station currently connected. The options

include:

• Infrastructure (access point)

• Ad Hoc

Configure the network type on the Advanced tab of Profile Management.

¾ IP Address - Displays the computer’s IP address.

¾ Current Channel - Shows the currently connected channel.

¾ Data Encryption - Displays the encryption type the driver is using. Configure the

encryption type on the Security tab of Profile Management.

¾ Server Based Authentication - Shows whether server based authentication is used.

¾ Signal Strength - Shows the strength of the signal.

Click Advanced to see advanced information about the program and its operations. For more

information, please refer to the help file of the utility.

3.2 Profile Management

Click the Profile Management tab of the TWCU and the Profile Management screen will appear,
