TL-WA7510N 5GHz 150Mbps Outdoor Wireless Access Point User Guide

View from left to right, the parts are explained below.

¾ RP-SMA: This is where you can connect an outside antenna. For this AP, the antenna is built

inside, and usually there is no necessity to connect an outside one.

¾ LAN: This port is used to connect to the POE port of the provided Power Injector.

¾ Reset:

There are two ways to reset the AP’s factory defaults:

• Use the Factory Defaults function on System Tools -> Factory Defaults page in the

AP’s Web-based Utility.

• Use the Factory Default Reset button: Press and hold the Reset button until Wireless

Signal Strength LEDs flash, and then the AP will reboot.

)

Note:

Ensure the AP is powered on before it restarts completely.

1.4.2 The Front Panel

TL-WA7510N consists of several LED indicators, which is designed to indicate connections and

wireless signal.

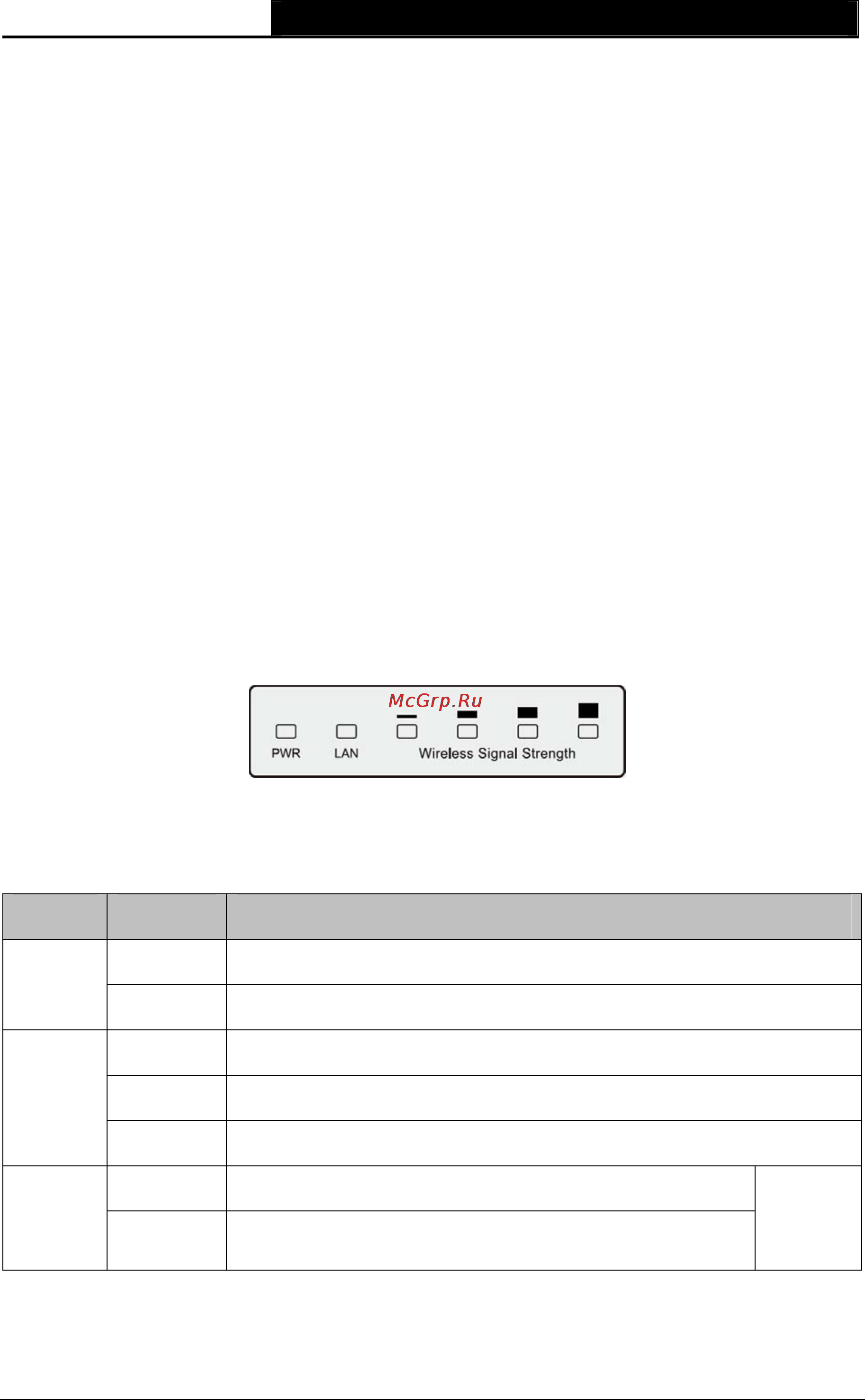

Figure 1-2 Front Panel sketch

View from left to right, the details are explained below.

Name Status Indication

Off No Power

PWR

On Power on

Off There is no device linked to the corresponding port

On There is a device linked to the corresponding port but no activity

LAN

Flashing There is an active device linked to the corresponding port

Off There is no remote wireless signal Wireless

Signal

Strength

On Indicates the wireless signal strength of a remote AP

Client or

Repeater

mode

Table 1-1 the LED Description
