TL-WA7510N 5GHz 150Mbps Outdoor Wireless Access Point User Guide
14
Figure 3-5

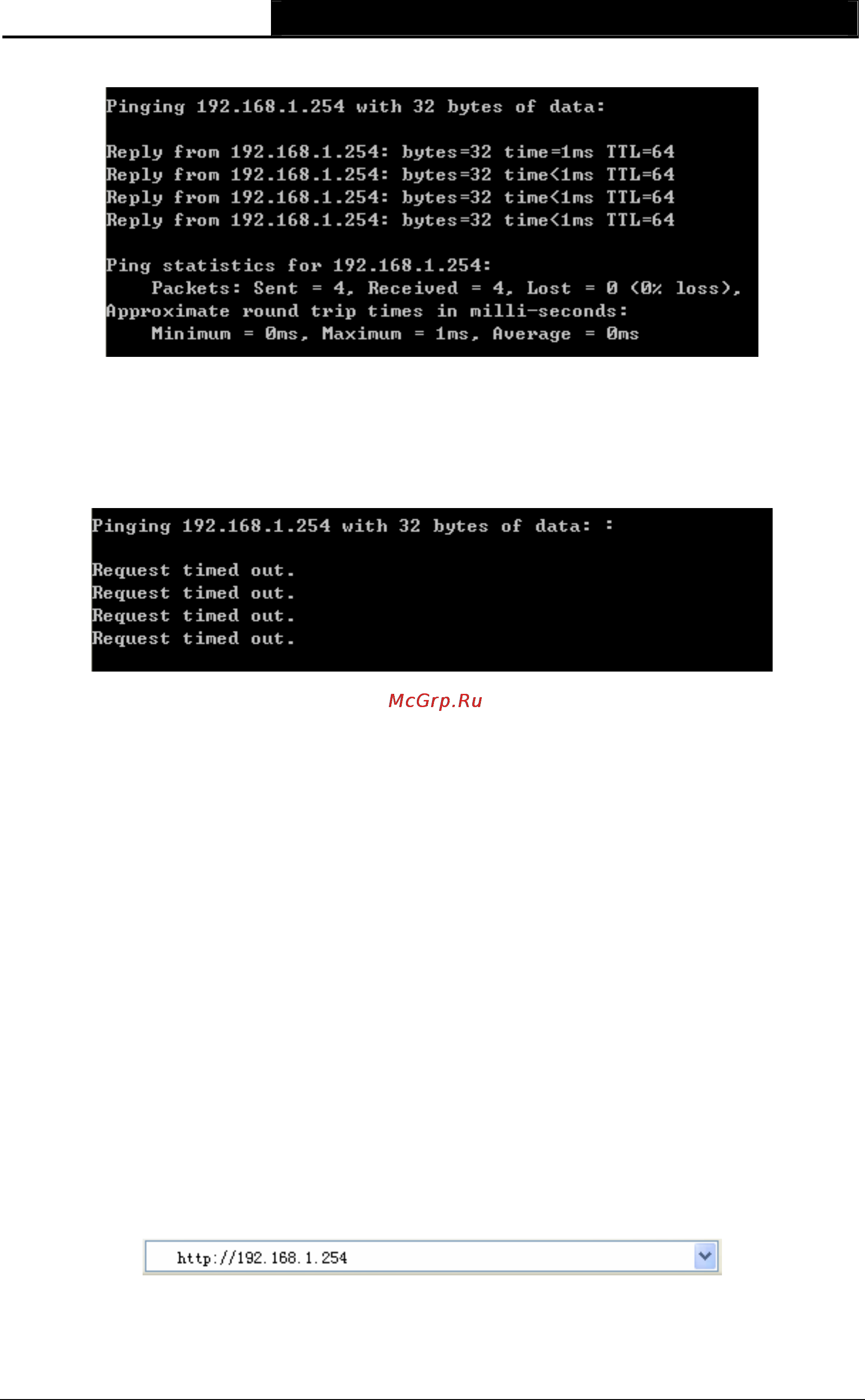

If the result displayed is similar to that shown in Figure 3-6 below, it means that your PC has
not connected to the AP.
Figure 3-6
Please check following these steps:
a) Check to see if your PC and the AP are right connected. The LED of LAN port which you
link to on the device and the LED on your PC’s adapter should be lit up.
b) Make sure the TCP/IP for your PC is right configured. If the AP’s IP address is
192.168.1.254, your PC’s IP address must be within the range of 192.168.1.1 ~
192.168.1.253.
3.2 Quick Setup
The TL-WA7510N is easy to configure and manage with. To access the configuration utility, open
a web-browser and type in the default address http://192.168.1.254 in the address field of the
browser.
1. Open your web browser. Type in the default address http://192.168.1.254 in the address field of
web browser and then press Enter.
Figure 3-7 Login to the AP
